Wireless router - WWAN 2.5GbE, 1GbE, 5G - 4G, 5G - TAA Compliant - for Peplink ACW-634, ACW-724, ACW-DIN-M2MS; Mobility 40G ANT-MB-40G-S-B-6
| Main Specifications | |
|---|---|
| Product Description | Pepwave 5G Adapter - wireless router - WWAN - LTE - 4G, 5G - desktop - TAA Compliant |
| Device Type | Wireless router - wireless cellular modem |
| Enclosure Type | Desktop |
| Cellular Protocol | LTE CAT19, 5G Sub-6 Ghz |
| Generation | 4G, 5G |
| Cellular Band | 5G n2, 5G n5, 5G n7, 5G n12, 5G n13, 5G n14, 5G n25, 5G n26, 5G n29, 5G n30, 5G n38, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, LTE B2, LTE B4, LTE B5, LTE B7, LTE B12, LTE B13, LTE B14, LTE B17, LTE B25, LTE B26, LTE B29, LTE B30, LTE B38, LTE B41, LTE B42, LTE B43, LTE B48, LTE B66, LTE B71 |
| WAN Ports Qty | 1 |
| Data Link Protocol | 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet, LTE, 5G |
| Performance | 5G downlink bandwidth: 3.4 Gbps ¦ 5G uplink bandwidth: 550 Mbps ¦ LTE downlink bandwidth: 1.6 Gbps ¦ LTE uplink bandwidth: 200 Mbps |
| Features | eSIM support, out-of-band management, ZTP, rugged |
| Compliant Standards | IEEE 802.3at |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 5.4 in x 3.1 in x 1.3 in |
| Weight | 13.76 oz |
| Localization | North America |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | Peplink ACW-634, ACW-724, ACW-DIN-M2MS; Mobility 40G ANT-MB-40G-S-B-6 |
| General | |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet, LTE, 5G |
| Performance | 5G downlink bandwidth: 3.4 Gbps ¦ 5G uplink bandwidth: 550 Mbps ¦ LTE downlink bandwidth: 1.6 Gbps ¦ LTE uplink bandwidth: 200 Mbps |
| Features | eSIM support, out-of-band management, ZTP, rugged |
| Compliant Standards | IEEE 802.3at, FCC, RoHS |
| Status Indicators | Status, signal strength |
| Expansion / Connectivity | |

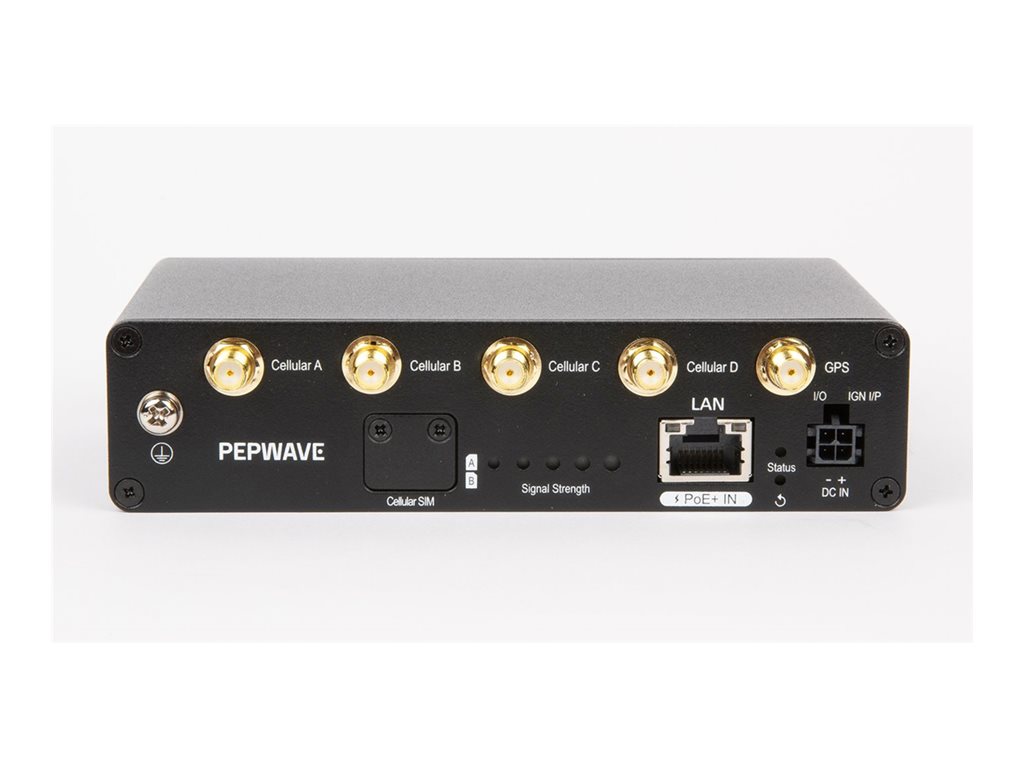

| Interfaces | LAN: 1 x 10Base-T/100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 ¦ Antenna: 4 x SMA - 5G ¦ Antenna: 1 x SMA - GPS |
| Expansion Slots | 2 Nano-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

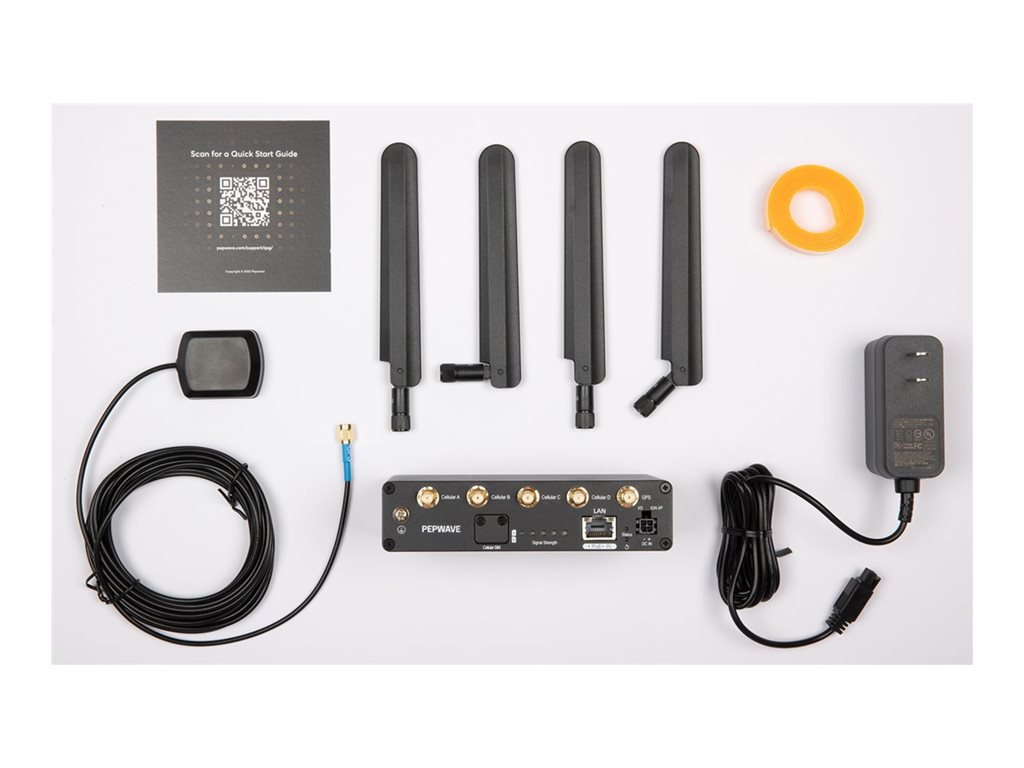

| Included Accessories | 4 x cellular antennas, GPS antenna |
| TAA Compliant | Yes |
| Localization | North America |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 6.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | LTE CAT19, 5G Sub-6 Ghz |
| Generation | 4G, 5G |
| Cellular Band | 5G n2, 5G n5, 5G n7, 5G n12, 5G n13, 5G n14, 5G n25, 5G n26, 5G n29, 5G n30, 5G n38, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, LTE B2, LTE B4, LTE B5, LTE B7, LTE B12, LTE B13, LTE B14, LTE B17, LTE B25, LTE B26, LTE B29, LTE B30, LTE B38, LTE B41, LTE B42, LTE B43, LTE B48, LTE B66, LTE B71 |
| Max Transfer Rate | 3.4 Gbps |
| Dimensions & Weight | |
| Width | 5.4 in |
| Depth | 3.1 in |
| Height | 1.3 in |
| Weight | 13.76 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 5 |
| Compatibility Information | |
| Designed For | Peplink ACW-634, ACW-724, ACW-DIN-M2MS ¦ Pepwave Mobility 40G ANT-MB-40G-S-B-6 |
