Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB 3.2 Gen 1, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

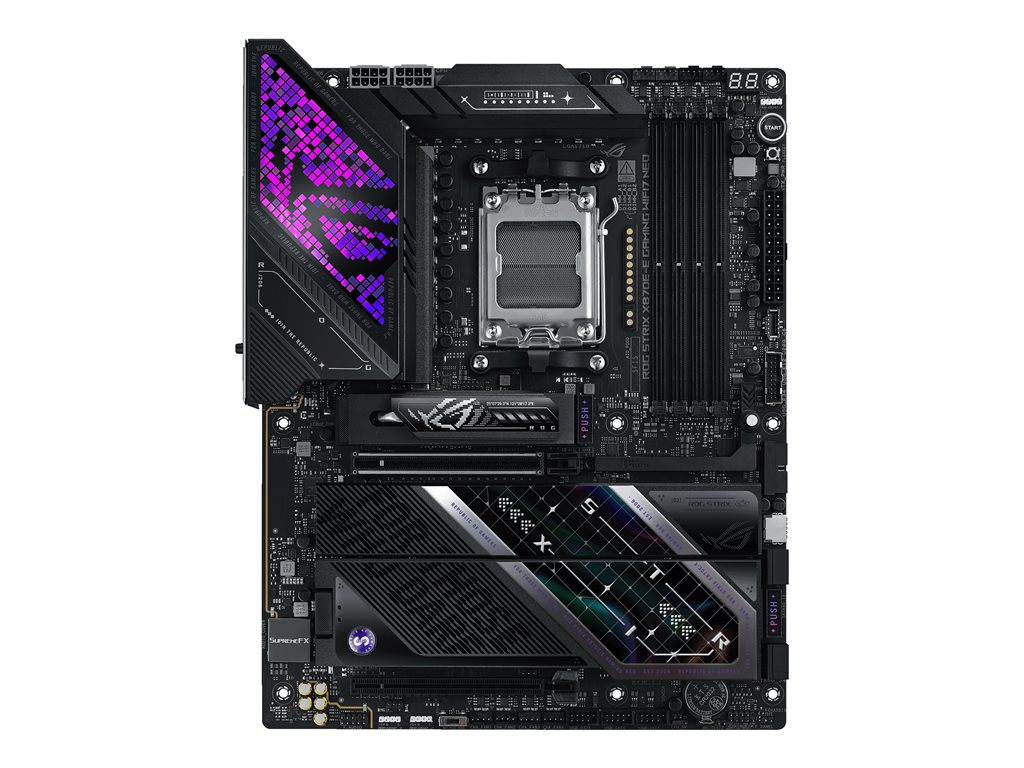

| Product Description | ASUS ROG STRIX X870E-E GAMING WIFI7 NEO - motherboard - ATX - Socket AM5 - AMD X870E |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 5 x M.2 |
| USB / FireWire Ports | 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 9 x USB 3.2 Gen 2 + (2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4 |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 3 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | AMD RAID Xpert2 Technology |
| Interfaces | 2 x USB4/DisplayPort ¦ 2 x USB-C 3.2 Gen 2 ¦ 9 x USB 3.2 Gen 2 ¦ 1 x HDMI ¦ 2 x antenna ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 2 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 6 x USB 2.0 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | ASUS Wi-Fi moving antenna, cable ties, M.2 Q-Latch, M.2 Q-Slide, ROG key chain, ROG Strix sticker, ROG thank you card, 5 x M.2 rubber package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ROG CPU-Z, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ROG GameFirst Utility, HWiNFO, ASUS GlideX, TurboV Core, ASUS DriverHub, USB Wattage Watcher, Adobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), ASUS AI Advisor, Norton 360 for Gamers (60 days trial), WinRAR (40 days trial) |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (ALC4080) |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), 18+2+2 Phase Power Design, ASUS Q-Connector, AI Cache Boost, AI Cooling II, ASUS ProCool II, VRM heatsink design, Water Pump Header, chipset heatsink, M.2 heatsink, Polymo Lighting, BIOS FlashBack button, Clear CMOS Button, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-LED, Start button, Q-Code, AMD Precision Boost Overdrive (PBO), 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack LED, M.2 heatsink backplate, pre-mounted I/O shield |
| LAN | |
| Network Controller | Mediatek MT7927 |
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4 |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8600 MT/s (O.C.), 8200 MT/s (O.C.), 9600 MT/s (O.C.), 9000 MT/s (O.C.), 8000 MT/s (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | NitroPath technology, AMD EXPO technology, Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
