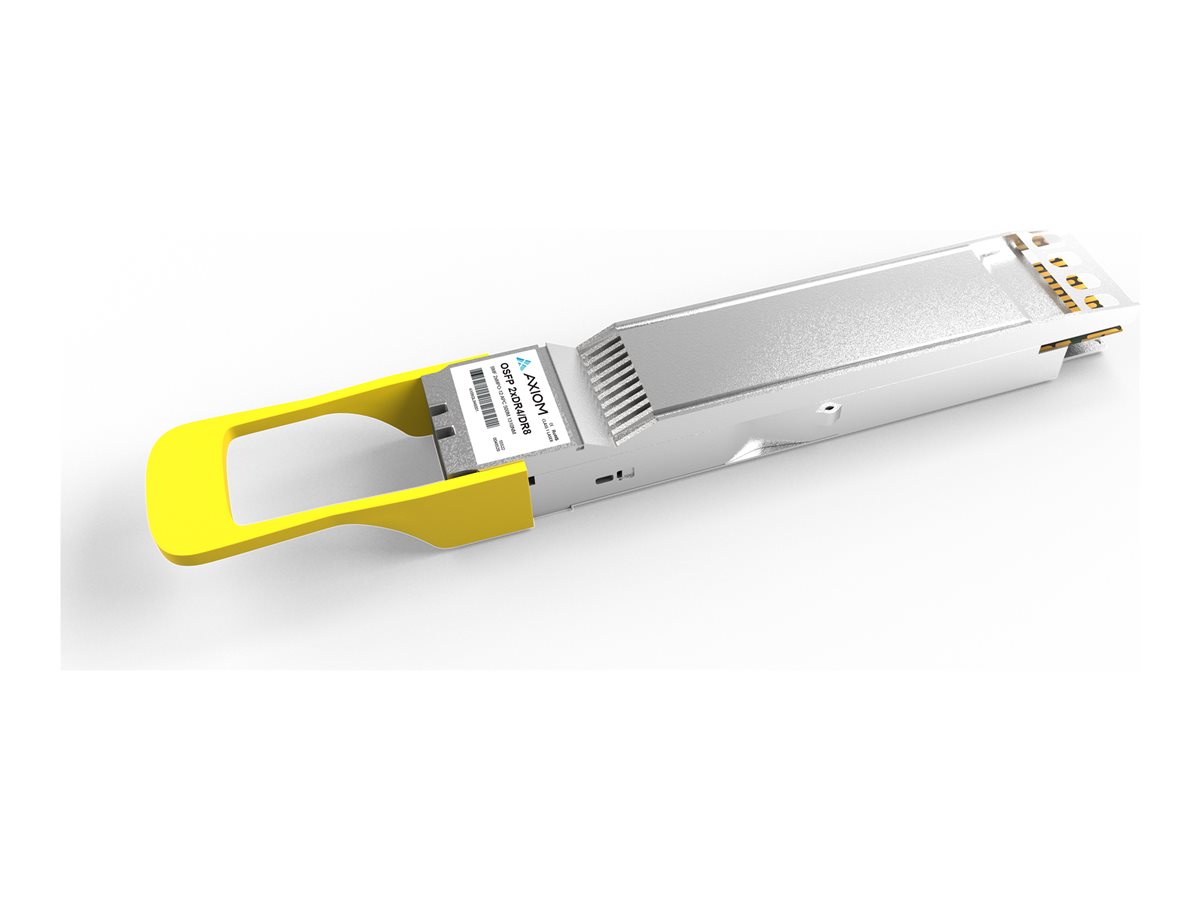

OSFP transceiver module - 800 Gigabit Ethernet - 800GBase-DR8 - MPO-16/APC single-mode - up to 1640 ft - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Axiom - OSFP transceiver module - 800 Gigabit Ethernet |
| Device Type | OSFP transceiver module - MPO-16/APC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 800GBase-DR8 |
| Data Transfer Rate | 800 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 800 Gigabit Ethernet |
| Max Transfer Distance | 1640 ft |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | OSFP transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 800GBase-DR8 - MPO-16/APC single-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | MSA, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 800GBase-DR8 |
| Data Link Protocol | 800 Gigabit Ethernet |
| Data Transfer Rate | 800 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1640 ft |
| Features | Digital Optical Monitoring (DOM) support, with heat sink, finned |
| Compliant Standards | IEEE 802.3bs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
