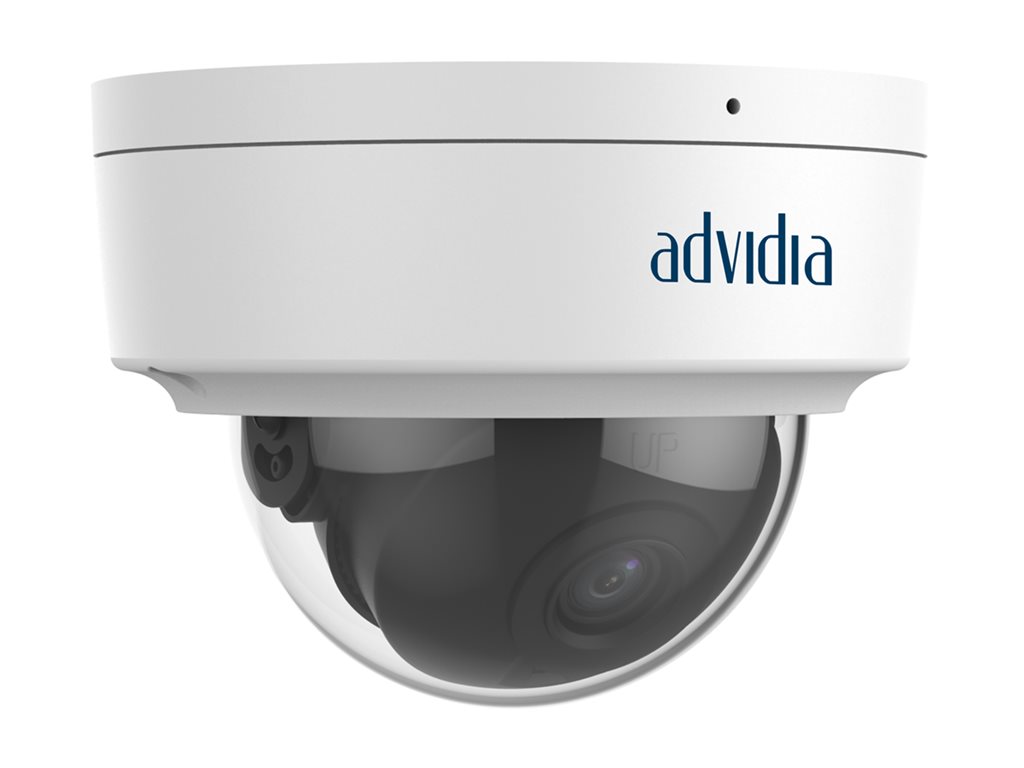

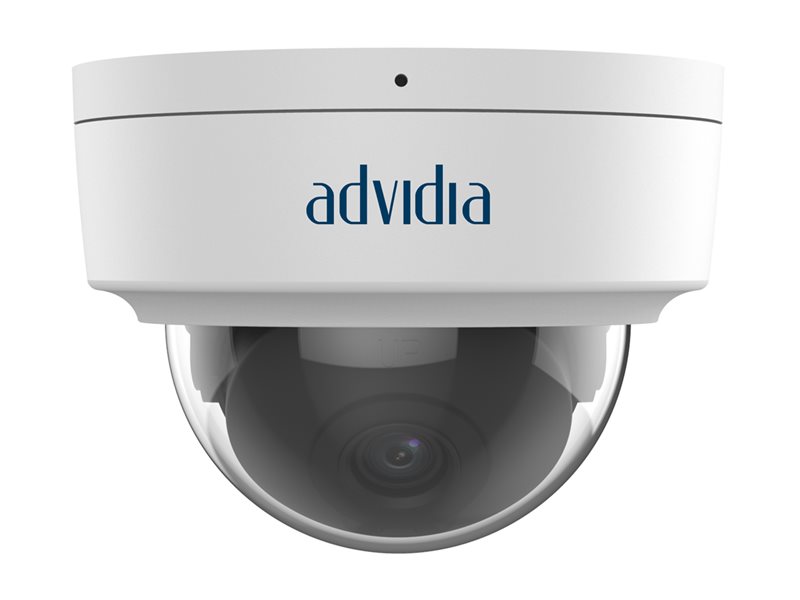

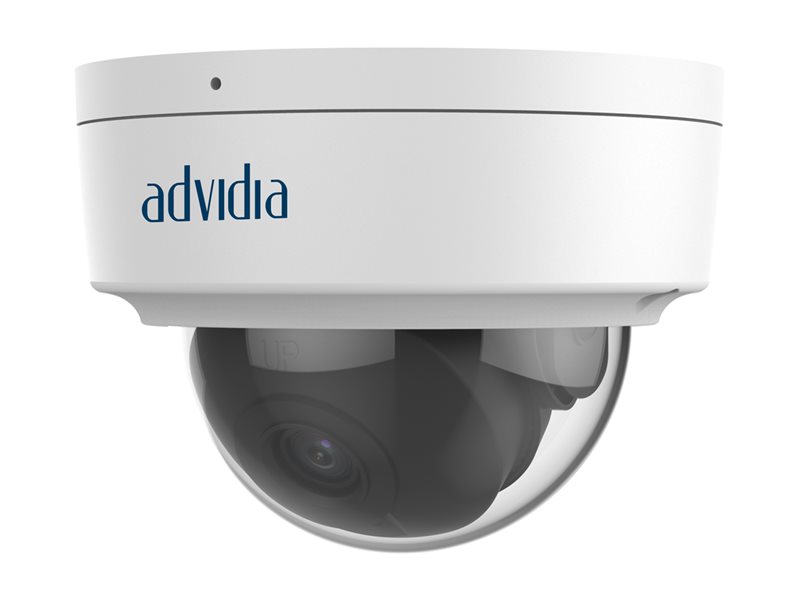

Network surveillance camera - pan / tilt - dome - outdoor - dust resistant / water resistant / vandal-proof - color (Day&Night) - 5 MP - 2688 x 1520 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | i-PRO Advidia M-46-FW-V3 - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt - dome - outdoor - dust resistant / water resistant / vandal-proof |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 4.4 in x 4.4 in x 3.3 in |
| Weight | 12.34 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2688 x 1520 |
| Frame Rate (max) | 25 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.7" - 5 MP |
| Minimum Illumination | 0.003 lux - color - F1.6 - 25 IRE ¦ 0 lux - IR - F1.6 - 25 IRE |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Panning Range (degree) | 8 to 360 |
| Tilting Range (degree) | 0 to 68 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | IR camera, up to 8 view areas, DORI coverage, 360° image rotation, ICR switch support, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Automatic Gain Control (AGC), white balance, digital noise reduction, Smart IR, digital defog, cross line detection, intrusion detection, motion detection, ultra motion detection, tampering alarm, Audio Detection |
| Environmental Parameters (operating) | -22 °F - 140 °F; 0 - 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.711u, G.711a |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.4 in |
| Depth | 4.4 in |
| Height | 3.3 in |
| Weight | 12.34 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card |
| Miscellaneous | |
| Compliant Standards | IP67, IK10, EN 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, FCC CFR47 Part 15 B, EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, IEEE 802.3af, NDAA |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | 4.4 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt - outdoor - dust resistant / water resistant / vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 1/100000 sec |
| Minimum Illumination | 0.003 lux - color - F1.6 - 25 IRE ¦ 0 lux - IR - F1.6 - 25 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 2688 x 1520 |
| Frame Rate (max) | 25 frames per second |
| Features | IR camera, up to 8 view areas, DORI coverage, 360° image rotation, ICR switch support, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Automatic Gain Control (AGC), white balance, digital noise reduction, Smart IR, digital defog, cross line detection, intrusion detection, motion detection, ultra motion detection, tampering alarm, Audio Detection |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, TLS, SNMP |
| Panning | |
| Range (degree) | 8 to 360 |
| Tilting | |
| Range (degree) | 0 to 68 |
