Network surveillance camera - pan / tilt - indoor - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - audio - wireless - Wi-Fi - 2.4GHz radio - H.264, MPEG-2
| Main Specifications | |
|---|---|

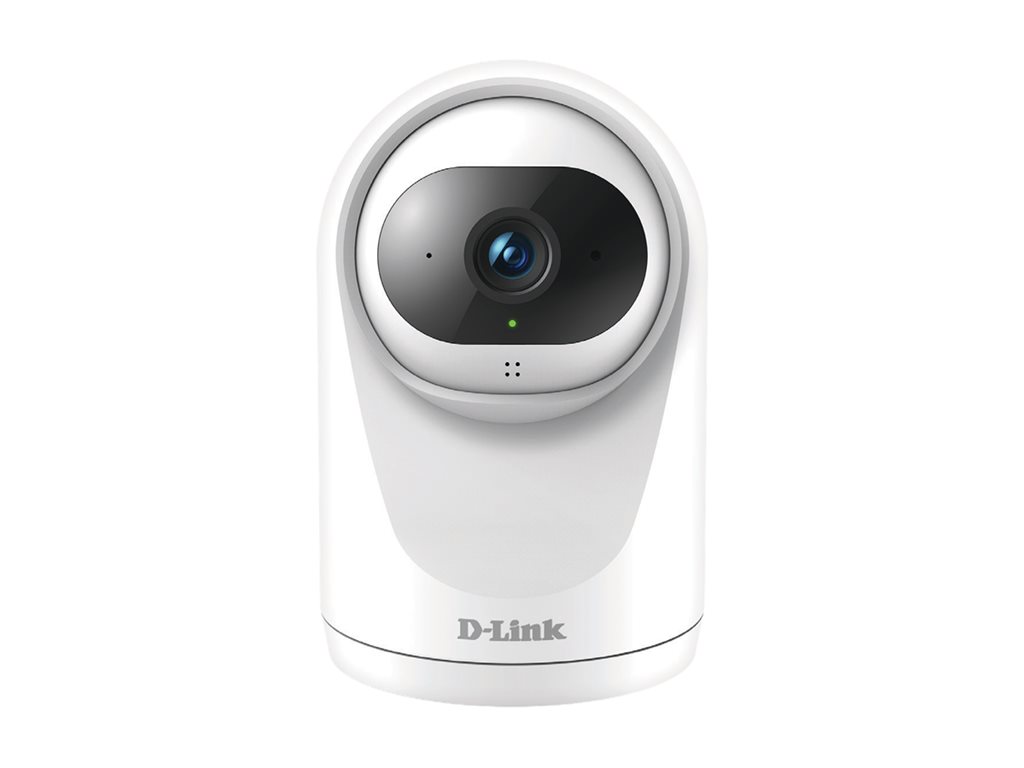

| Product Description | D-Link DCS 6501LH - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt - indoor |
| Audio | Yes: two-way audio capability, built-in microphone, built-in speaker |
| Dimensions (WxDxH) | 2.8 in x 2.8 in x 4.8 in |
| Weight | 6.7 oz |
| Connectivity Technology | Wireless |
| Camera | Color - Day&Night |
| Max Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.9" - 2 MP |
| Focal Length | 4.12 mm |
| Lens Iris | F/2.1 |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -40 to +50 |
| Interfaces | IEEE 802.11n, IEEE 802.11g, 2.4GHz radio |
| Platform | MyDlink Home |
| Intelligent Assistant | Alexa, Google Assistant - indirect |
| Cables Included | 1 - micro-USB cable - external - 5 ft |
| Voltage | AC 100-240 V |
| Features | Sound detection, cloud recording, Push Notification, Snapshot notification, reset button |
| Environmental Parameters (operating) | 32 °F - 104 °F; 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone, built-in speaker |
| Audio Formats | AAC-LC |
| Connectivity Technology | Wireless |
| Width | 2.8 in |
| Depth | 2.8 in |
| Height | 4.8 in |
| Weight | 6.7 oz |
| Expansion / Connectivity | |
| Ports | USB (power only) - Micro-USB Type B |
| Supported Memory Cards | microSD Card |
| Encryption Algorithm | WPA3 |
| Miscellaneous | |
| Cables Included | 1 x micro-USB cable - external - 5 ft |
| Compliant Standards | FCC, IC |
| Power | |
| Power Device | Power adapter - external AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt - indoor |
| Digital Video Format | H.264, MPEG-2 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Infrared LEDs | Yes |
| Infrared Distance | 16.4 ft |
| Video Capture | 1920 x 1080 |
| Features | Sound detection, cloud recording, Push Notification, Snapshot notification, reset button |
| Lens Construction | |
| Focal Length | 4.12 mm |
| Lens Iris | F/2.1 |
| Horizontal Field of View (degree) | 85 |
| Vertical Field of View (degree) | 42 |
| Diagonal Field of View (degree) | 100 |
| Image Sensor | |
| Type | 2 MP Progressive Scan CMOS 1/2.9" |
| Interfaces | |
| Network Interface | IEEE 802.11n, IEEE 802.11g, 2.4GHz radio |
| Network Protocols | IPv4, Bonjour, RTSP, SRTP, RTP, HTTPS |
| Panning | |
| Range (degree) | -170 to +170 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | MyDlink Home |
| Communications Type | Cloud |
| Communications Technology | Wi-Fi |
| Intelligent Assistant | Alexa, Google Assistant |
| Voice Controlled | Indirect |
| Tilting | |
| Range (degree) | -40 to +50 |
