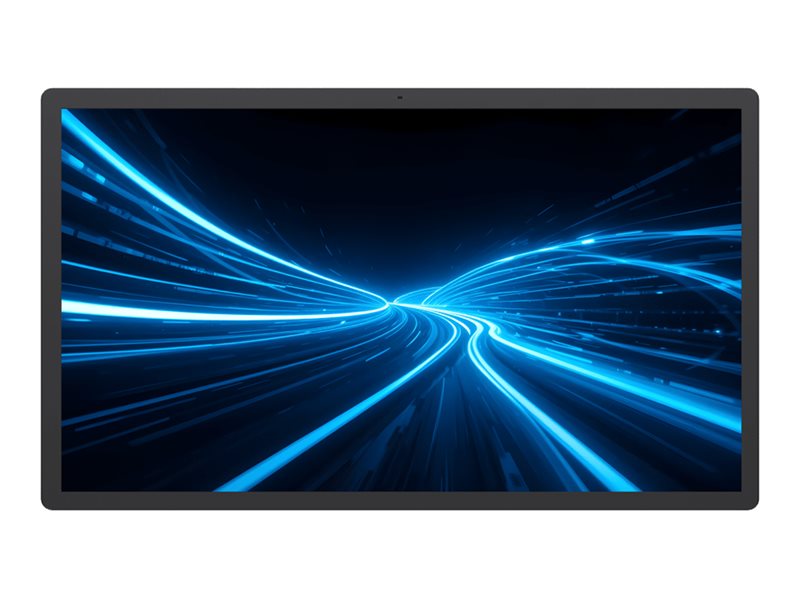

55" Diagonal Class LED-backlit LCD display - interactive digital signage outdoor - Android - 4K UHD (2160p) 3840 x 2160 - Direct LED
| Main Specifications | |
|---|---|
| Product Description | Newline XRT Series XRT-5526 55" LED-backlit LCD display - 4K - outdoor - for digital signage / interactive communication |
| Product Type | LED-backlit LCD flat panel display - outdoor |
| Diagonal Class | 55" |
| Commercial Use | Yes - interactive digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | Bluetooth, LAN, Wi-Fi |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Newline Signage Pro |
| Picture Enhancements | 72% Color Gamut NTSC |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Voltage | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 50.4 in x 4.4 in x 29.6 in |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 55" |
| Commercial Use | Yes - interactive digital signage |
| Outdoor | Yes |
| Platform | Android |
| Operating System | Android OS 14 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Brightness sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Modes | Landscape mode, portrait mode |
| Picture Enhancements | 72% Color Gamut NTSC |
| Design | 5mm bezel |
| Protection | Weatherproof |
| Width | 50.4 in |
| Depth | 4.4 in |
| Height | 29.6 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IK10, IP56, FCC Class A certified, UL, HDCP 2.3 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Display | |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare, 25% haze |
| Brightness | 2500 cd/m² |
| Viewing Angle | 178 |
| Viewing Angle (Vertical) | 178 |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Newline Signage Pro |
| Additional Features | 24/7 operation time, 10-bit (8-bit + FRC), Ultra-High Brightness, optical bonding |
| Connections | |
| Connector Type | 2 x HDMI input - rear ¦ USB-C with 15W Power Delivery - rear ¦ USB 3.2 Gen 1 - rear ¦ Audio line-out - rear ¦ LAN - rear ¦ RS-232C input - rear ¦ RS-232C output - rear |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Speakers | 2 x main channel speaker - 10 Watt |
| Network & Internet Multimedia | |
| Connectivity | Bluetooth, LAN, Wi-Fi |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11ax |
| Bluetooth Version | Bluetooth 5.2 |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | Rockchip RK3576 - 4 GB - 32 GB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
