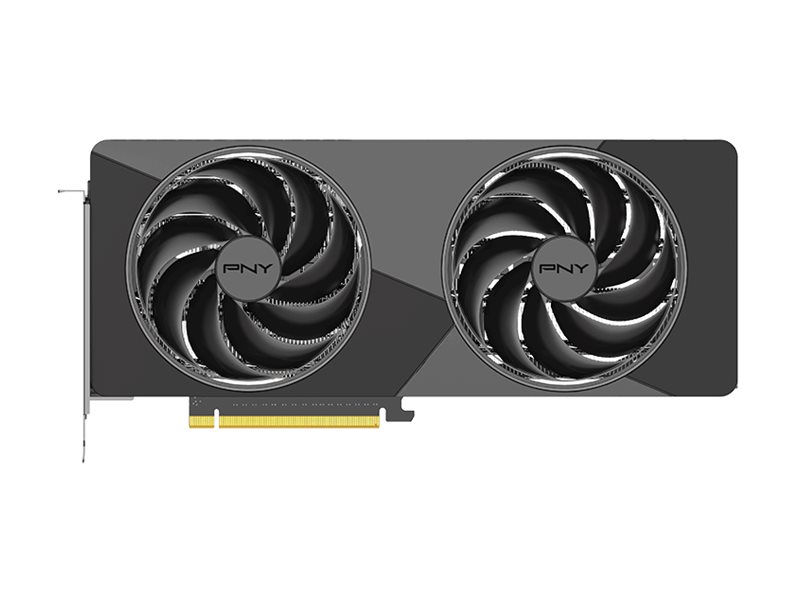

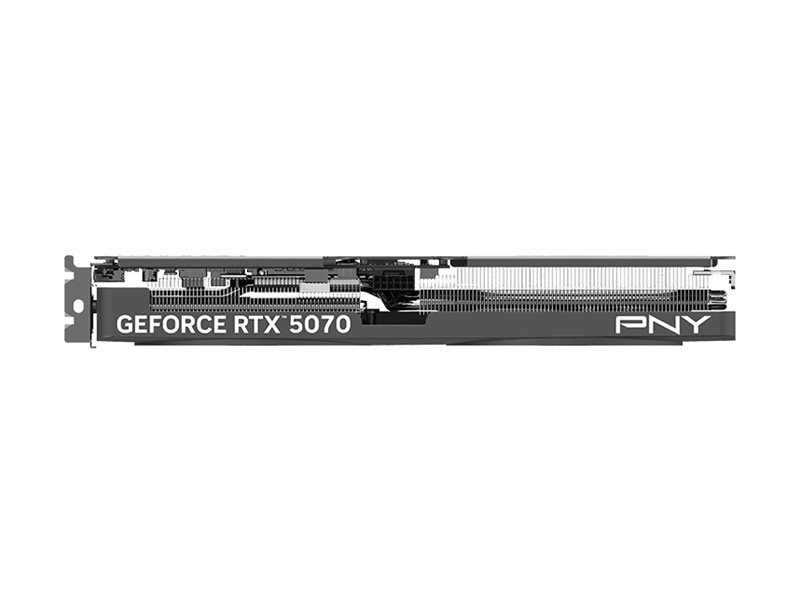

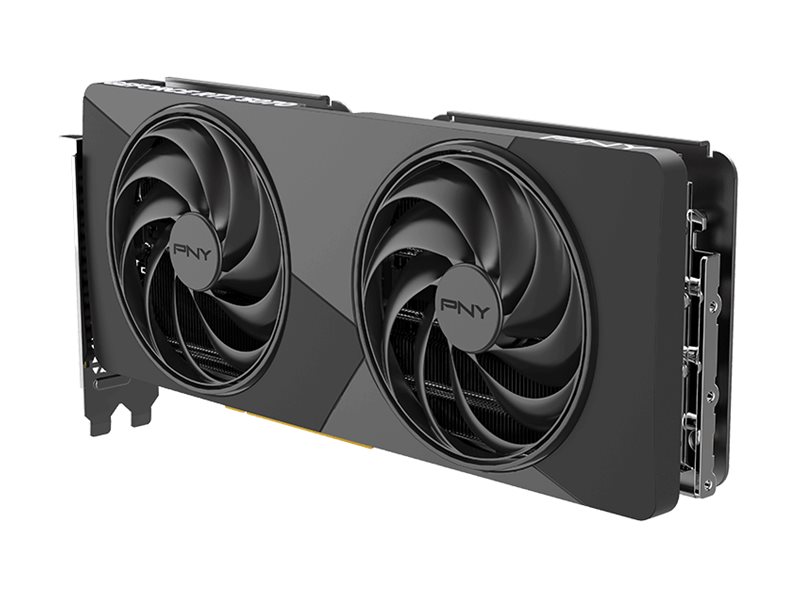

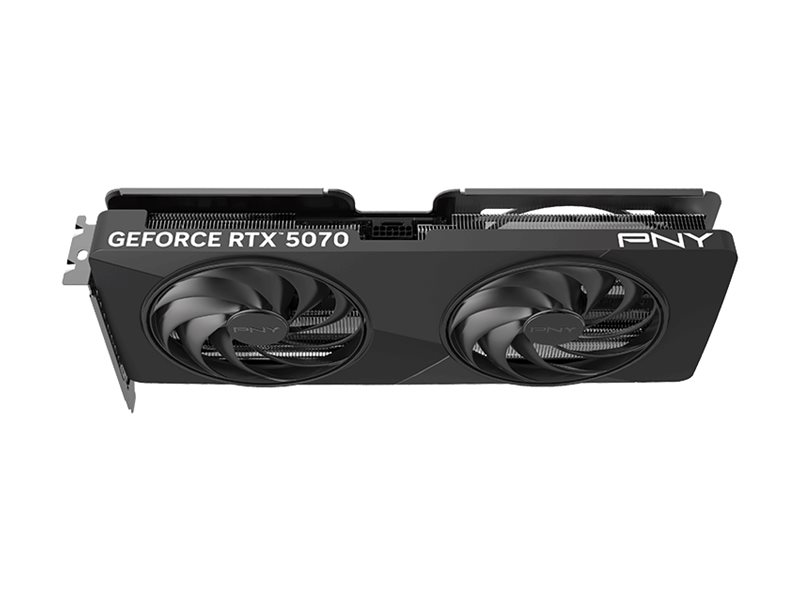

Graphics card - GeForce RTX 5070 - 12 GB GDDR7 - PCIe 5.0 x16 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | PNY Slim OC - graphics card - GeForce RTX 5070 - 12 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5070 |
| Memory | 12 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Core Clock | 2325 MHz |
| Boost Clock | 2587 MHz |
| CUDA Cores | 6144 |
| Memory Interface | 192-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| Dimensions (WxDxH) | 1.6 in x 11.4 in x 5 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5070 |
| Core Clock | 2325 MHz |
| Boost Clock | 2587 MHz |
| CUDA Cores | 6144 |
| Max Resolution | 7680 x 4320 at 165 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| Features | NVIDIA Blackwell GPU architecture, Dual Fan Design, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA DLSS 4.5, NVIDIA Reflex 2, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, 9th Gen NVIDIA Encoder, Nvidia Broadcast, NVIDIA G-Sync ready |
| Memory | |
| Size | 12 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 192-bit |
| Bandwidth | 672 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 250 watt |
| Included Accessories | 16-pin to 2x 8-pin cable adapter |
| Software Included | NVIDIA Studio drivers, NVIDIA App |
| Compliant Standards | DisplayPort 2.1b, Ultra High Bit Rate 20 (UHBR20) |
| Width | 1.6 in |
| Depth | 11.4 in |
| Height | 5 in |
| Shipping Width | 2.8 in |
| Shipping Depth | 15 in |
| Shipping Height | 7.6 in |
| System Requirements | |
| OS Required | Linux (64-bit), Windows 11, Windows 10 (64-bit) |
| Required Power Supply | 650 W |
| Additional Requirements | 16 pin PCI Express power connector |
