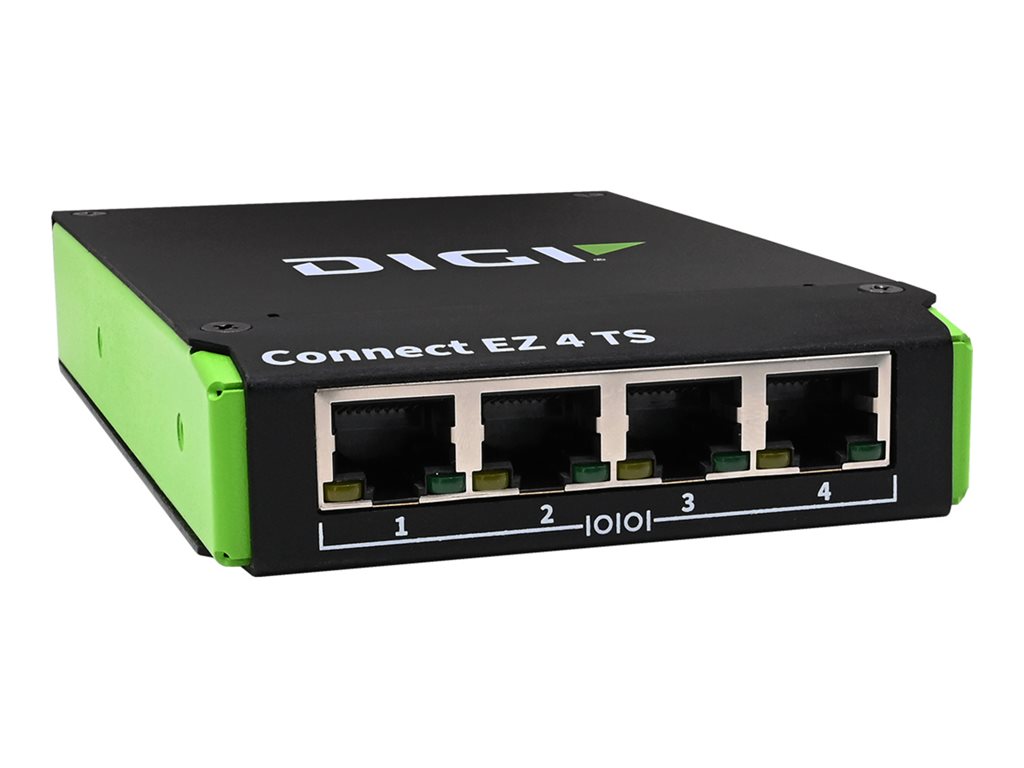

Device server - RS-232/22/485 software-selectable - with 1-year Digi LifeCycle Assurance - 4 ports - 1GbE, RS-232, RS-422, RS-485 - for Digi AC Power Supply with Cord; EtherLite DB-9F Console Adapter
| Main Specifications | |
|---|---|
| Product Description | Digi Connect EZ 4 TS - device server - RS-232/22/485 software-selectable - with 1-year Digi LifeCycle Assurance |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Form Factor | External |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485 |
| Dimensions (WxDxH) | 3.3 in x 5.2 in x 0.9 in |
| Weight | 26.45 oz |
| Manufacturer Warranty | 5-year warranty |
| Designed For | Digi AC Power Supply with Cord; EtherLite DB-9F Console Adapter |
| General | |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Width | 3.3 in |
| Depth | 5.2 in |
| Height | 0.9 in |
| Weight | 26.45 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000 - RJ-45 ¦ 4 x RS-232/422/485 - RJ-45 ¦ 1 x console - USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Technical support - 1 year |
| Miscellaneous | |
| Compliant Standards | IEC 62368-1, CB, UL 62368-1, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32, EN 55035, EN 55032 |
| Networking | |
| Form Factor | External |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485 |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, Telnet, SSH, NTP, SMTP, SCP, Syslog |
| Status Indicators | Power, serial, console, Ethernet link/activity |
| Authentication Method | TACACS+, LDAP, RADIUS |
| Power | |
| Power Device | External power adapter (not included) |
| Software / System Requirements | |
| Software Included | Digi Remote Manager, Digi Navigator |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.2 in |
| Shipping Depth | 8.3 in |
| Shipping Height | 2.5 in |
| Compatibility Information | |
| Designed For | Digi AC Power Supply with Cord ¦ Digi EtherLite DB-9F Console Adapter |
