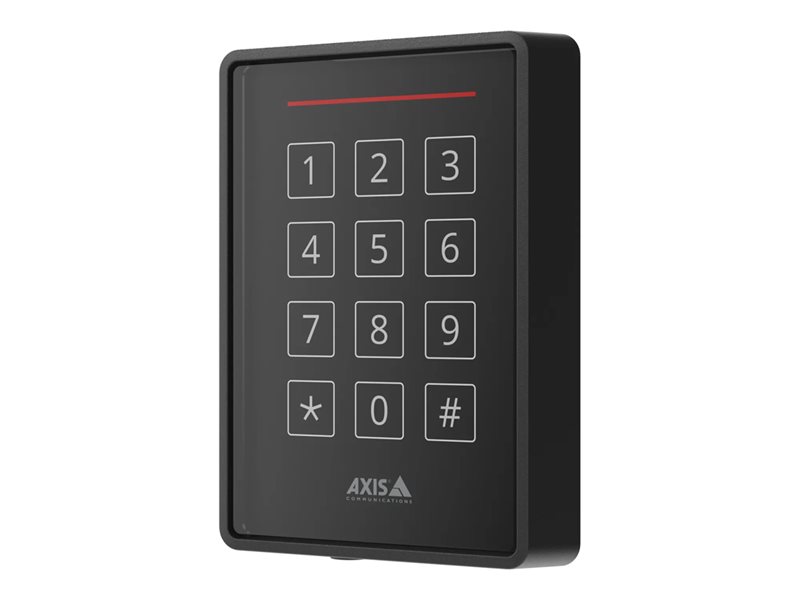

RFID proximity reader / keypad - wired - black, NCS S 9000-N
| Main Specifications | |
|---|---|
| Product Description | Axis A4131-E Reader - RFID proximity reader / keypad - black, NCS S 9000-N |
| Product Type | RFID proximity reader / keypad |
| Environment | Indoor, outdoor |
| Placing / Mounting | Wall-mounting |
| Integrated Sensors | 13.56 MHz RFID Proximity Card Scanner |
| Card Technology | HID MIFARE Plus, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3 |
| Connectivity | Wired |
| Color | Black, NCS S 9000-N |
| Localization | Australia, Europe, United Kingdom, United States |
| Manufacturer Warranty | 5-year warranty |
| Dimensions (WxDxH) | 3.3 in x 1.1 in x 4.8 in |
| General | |
| Product Type | RFID proximity reader / keypad |
| Environment | Indoor, outdoor |
| Integrated Sensors | 13.56 MHz RFID Proximity Card Scanner |
| Placing / Mounting | Wall-mounting |
| Connectivity Technology | Wired |
| Card Technology | HID MIFARE Plus, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3 |
| Interfaces Details | Serial |
| Features | Scratch protection, impact protection, RGB LED indicator, alarm mode, tamper switch, PVC-free Open Supervised Device Protocol (OSDP) |
| Miscellaneous | |
| Product Material | Plastic |
| Color | Black, NCS S 9000-N |
| Localization | Australia, Europe, United Kingdom, United States |
| Voltage Required | DC 12 V |
| Warranty | 5-year warranty |
| Compliant Standards | IP66, IK07, EAL 6+, CISPR 32 Class B, EN 61000-6-1, EN 61000-6-3, FCC Part 15 Subpart B Class B, RCM, AS/NZ CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, UL 294, UL 62368-1, UL 60950-22, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK07, EN 18031-1: 2024, FIPS 140-3 Level 3, RoHS, 2011/65/EU, 2015/863, EN/IEC 63000:2018, REACH |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 10 - 100% RH (condensing) |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 1.1 in |
| Height | 4.8 in |
| Weight | 9.1 oz |
