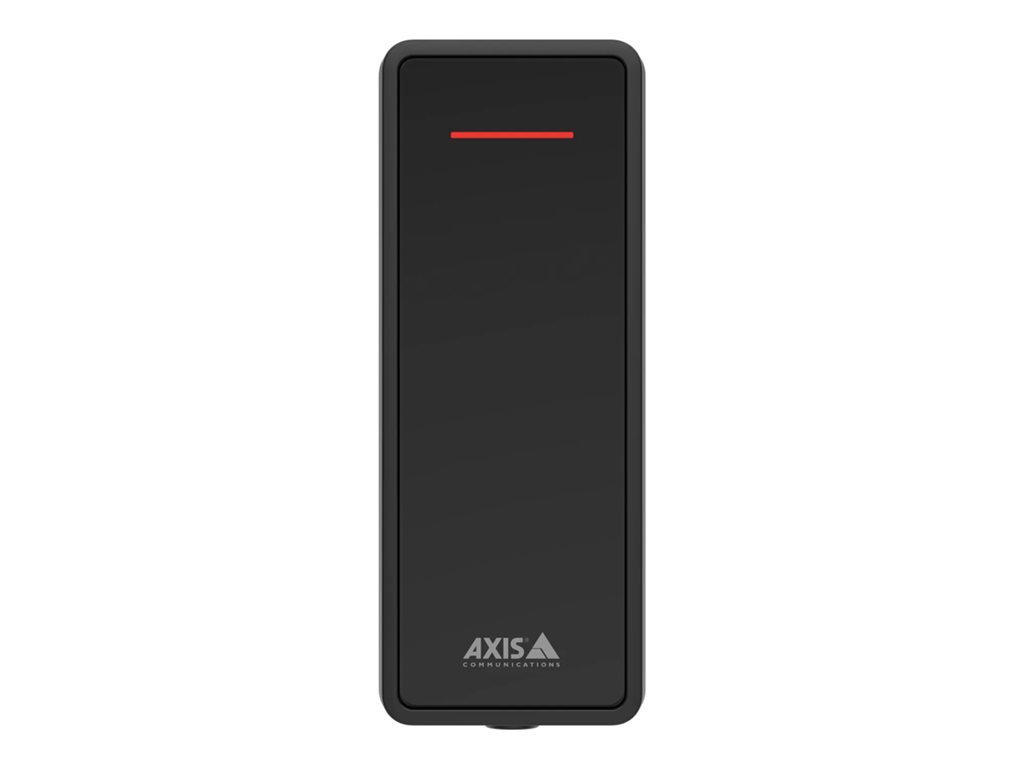

RFID proximity reader - with compact mulion design - wired - black, NCS S 9000-N
| Main Specifications | |
|---|---|
| Product Description | Axis A4030-E Reader - RFID proximity reader - with compact mulion design - black, NCS S 9000-N |
| Product Type | RFID proximity reader |
| Environment | Indoor, outdoor |
| Placing / Mounting | Wall-mounting |
| Integrated Sensors | 13.56 MHz RFID Proximity Card Scanner |
| Card Technology | HID MIFARE Plus, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3 |
| Connectivity | Wired |
| Color | Black, NCS S 9000-N |
| Localization | Australia, Europe, United Kingdom, United States |
| Manufacturer Warranty | 5-year warranty |
| Dimensions (WxDxH) | 1.9 in x 1.1 in x 4.8 in |
| Designed For | AXIS A1214 |
| General | |
| Product Type | RFID proximity reader |
| Environment | Indoor, outdoor |
| Integrated Sensors | 13.56 MHz RFID Proximity Card Scanner |
| Placing / Mounting | Wall-mounting |
| Connectivity Technology | Wired |
| Card Technology | HID MIFARE Plus, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3 |
| Interfaces Details | Serial |
| Features | RGB LED indicator, alarm mode, tamper switch, scratch protection, impact protection Open Supervised Device Protocol (OSDP) |
| Miscellaneous | |
| Product Material | Plastic |
| Color | Black, NCS S 9000-N |
| Localization | Australia, Europe, United Kingdom, United States |
| Voltage Required | DC 12 V |
| Warranty | 5-year warranty |
| Power Consumption Operational | 114 mAh |
| Compliant Standards | EAL 6+, IP65, IK07, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK07, EN 62311, EN 300330, EN 301489-1, EN 301.489.3, FCC Part 15 Subpart C, RSS-102, RSS-210, FIPS 140-3 Level 3, ISO 14443 type A, EN 18031-1: 2024 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 10 - 100% RH (condensing) |
| Dimensions & Weight | |
| Width | 1.9 in |
| Depth | 1.1 in |
| Height | 4.8 in |
| Weight | 4.16 oz |
| Compatibility Information | |
| Designed For | AXIS A1214 |
