NVR - 16 channels - networked
| Main Specifications | |
|---|---|

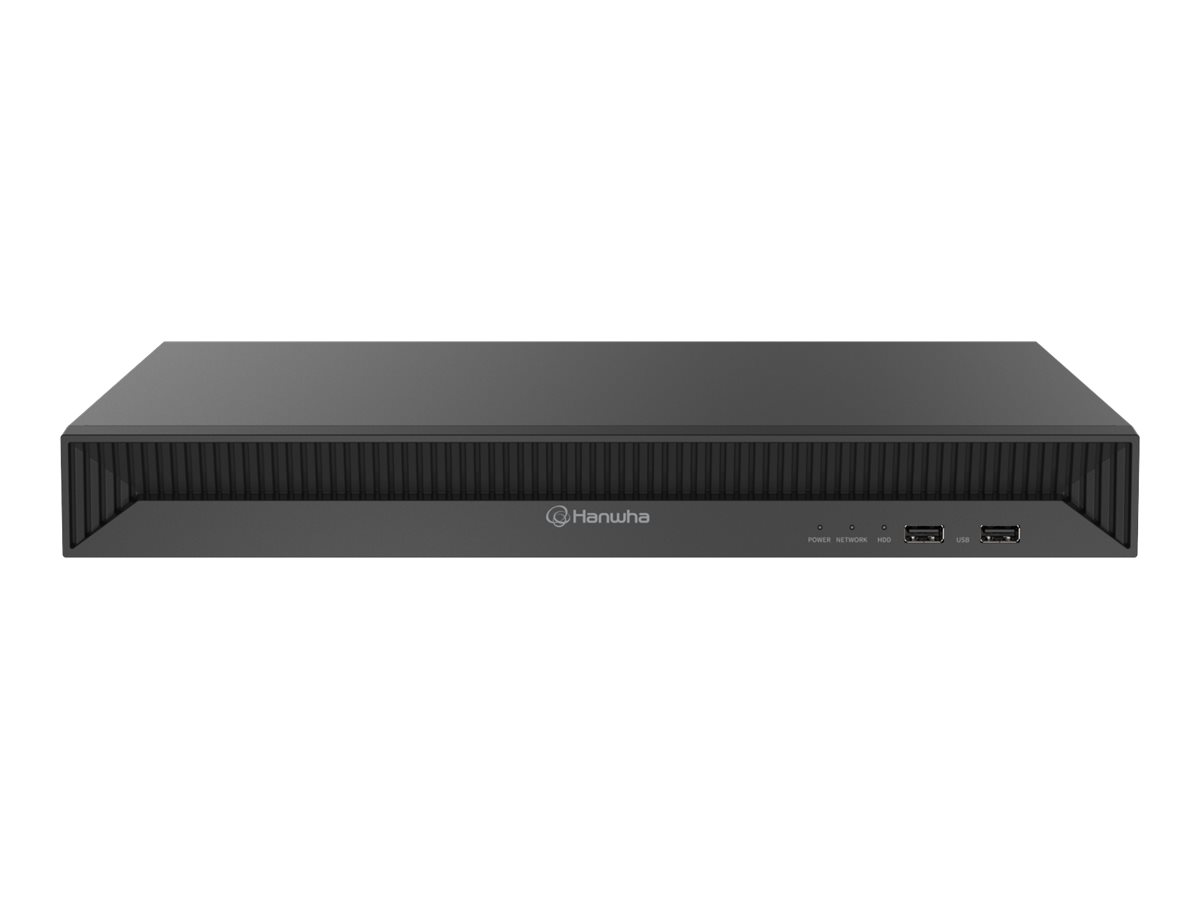

| Product Description | Hanwha Vision BRB-X1610E - standalone NVR - 16 channels |
| Device Type | NVR - 16 channels - networked |
| Hard Drive(s) Supported | Quantity: 2 - total capacity: 32 TB |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) | 14.6 in x 12.6 in x 2 in |
| Weight | 5.95 lbs |
| General | |
| Device Type | NVR |
| Video Channels | 16 |
| Package Content | Keyboard, mouse |
| Software Included (Y) | 16 Blaze Premium VMS licenses |
| Compliant Standards | EAC, cULus, NDAA, FCC, UL, FIPS 140-3 Level 3 |
| Color | Black |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Power | |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 72 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% RH (non-condensing) |
| Hard Drive | |
| Quantity Supported | 2 |
| Interface | Serial ATA |
| Supported Max Total Capacity | 32 TB |
| Connections | |
| Video Output Ports | HDMI x 1, DisplayPort x 1 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 2 |
| Dimensions & Weight | |
| Width | 14.6 in |
| Depth | 12.6 in |
| Height | 2 in |
| Weight | 5.95 lbs |
| Security DVR | |
| Networked | Yes |
| Features | Hardened operating system, recording data rate up to 150 Mbps, RAID 1 support, 24/7 continuous recording, eMMC SSD OS system drive, 2-way audio communication, metal housing |
| Video Server | |
| RAM | 8 GB |
