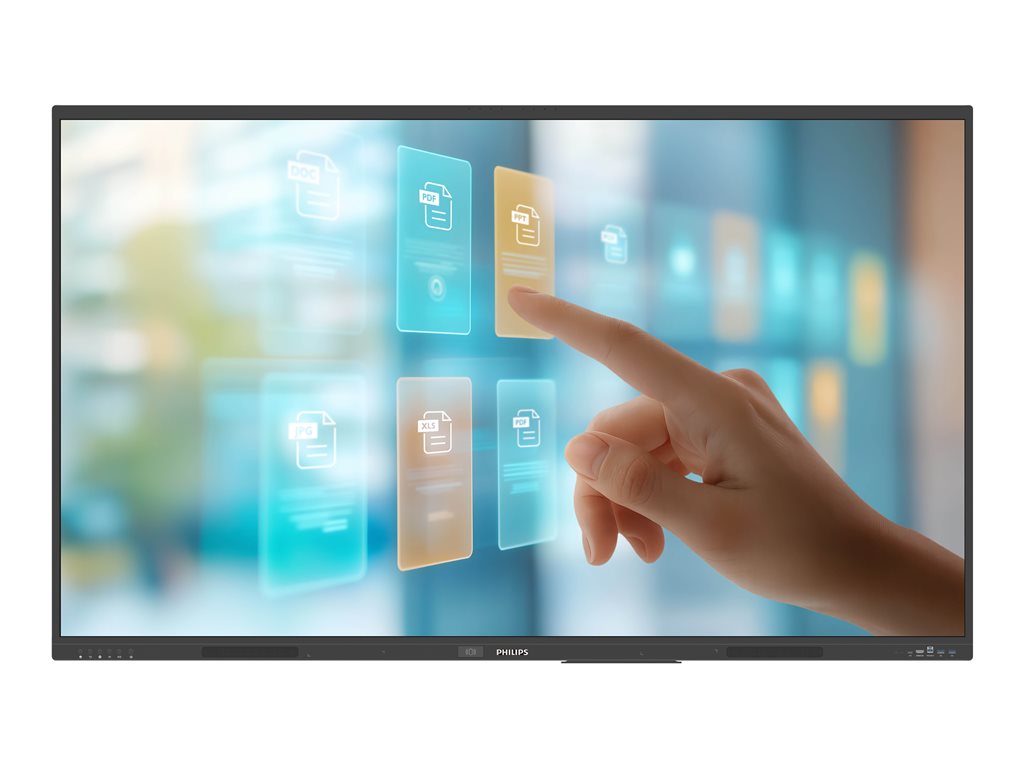

75" Diagonal Class E-Line LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) - Android - 4K UHD (2160p) 3840 x 2160
| Main Specifications | |
|---|---|
| Product Description | Philips 75BDL4252E E-Line - 75" LED-backlit LCD display - 4K - for digital signage / interactive communication |
| Product Type | LED-backlit LCD flat panel display with touchscreen (multi touch) |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2304646 |
| Diagonal Class | 75" |
| Commercial Use | Yes - interactive digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Input Video Formats | 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 480/60i, 2160/50p, 2160/60p |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN, NFC, Bluetooth |
| PC Interface | DisplayPort, VGA, USB-C, VGA (HD-15) |
| Technology | ADS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Internet Streaming Services | Google Cast |
| Commercial Features | Philips Wave remote management, remote lock, Open Pluggable Standard (OPS) support, keyboard lock |
| Picture Enhancements | Dynamic contrast enhancement, Pixel Shift, Low Bright, 3D Combfilter, motion compensation deinterlacing, progressive scan, Blue Light Filter |
| Speaker System | 2 speakers |
| Storage Capacity | 128 GB eMMC |
| USB | 7 ports |
| Included Accessories | Remote control, cleaning cloth, 2 touch pens, AC switch cover, Philips logo |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class F |
| Power Consumption Operational | 130 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) - without stand | 67.3 in x 3.8 in x 40.6 in |
| Weight | 87.08 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2304646 |
| Energy Class | Class F |
| Power Consumption Operational | 130 Watt |
| Power Consumption SDR (On mode) | 125 kWh/1000h |
| Diagonal Class | 75" |
| Commercial Use | Yes - interactive digital signage |
| Combined With | Touchscreen (multi touch) |
| Series | E-Line |
| Platform | Android |
| Operating System | Android OS 14 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS) |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort, VGA, USB-C, VGA (HD-15) |
| Picture Enhancements | Dynamic contrast enhancement, Pixel Shift, Low Bright, 3D Combfilter, motion compensation deinterlacing, progressive scan, Blue Light Filter |
| Dimensions | Without stand |
| Width | 67.3 in |
| Depth | 3.8 in |
| Height | 40.6 in |
| Weight | 87.08 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Cleaning cloth, 2 touch pens, AC switch cover, Philips logo |
| Cables Included | USB-A to USB-B cable - 10 ft |
| Compliant Standards | Plug and Play, FCC Class A certified, RoHS, CB, EAC, EMF, ETL, FCC |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Features | Smart power |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Display | |
| LCD Display Technology | ADS |
| Pixel Pitch | 0.4296 mm |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 7 MOHS hardness, anti-fingerprint, anti-reflection |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 500000:1 |
| Brightness | 400 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Pull-Down Compensation | 3:2, 2:2 |
| Touchpoints Qty | 50 |
| Response Time | 8 ms |
| Display Menu Language | Danish, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Turkish, Arabic, Japanese |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Philips Wave remote management, remote lock, Open Pluggable Standard (OPS) support, keyboard lock |
| Operation Hours / Days | 18 / 7 |
| Additional Features | 3D MA deinterlacing, HID support, OPS Slot, Apple AirPlay support, Palm Rejection, loop-through IR, carrying handles |
| Connections | |
| Connector Type | 3 x HDMI input ¦ HDMI output ¦ DisplayPort ¦ VGA output ¦ 4 x USB 3.0 ¦ USB 2.0 ¦ USB-C with 65W Power Delivery ¦ USB ¦ 2 x USB ¦ 2 x LAN ¦ Audio line-in ¦ Audio line-out ¦ Optical output ¦ RS-232C input/output |
| Video Features | |
| Input Video Formats | 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 480/60i, 2160/50p, 2160/60p |
| Supported Computer Resolutions | 1366 x 768, 1920 x 1200 (WUXGA), 1024 x 768 (XGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1152 x 864, 1280 x 960, 848 x 480, 1920 x 1080, 1360 x 768, 3840 x 2160 |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 40 Watt |
| Speakers | 2 x speaker - 20 Watt |
| Dimensions & Weight (Shipping) | |
| Weight (Shipping) | 121.25 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, NFC, Bluetooth |
| LAN Protocol | Gigabit Ethernet |
| Bluetooth Version | Bluetooth 5.2 |
| Connect & Share | Screen Share, Wi-Fi Miracast |
| Internet Streaming Services | Google Cast |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, H.264, H.263, H.265, VP8, VP9 |
| Supported Audio Formats | AAC, HE-AAC, MPEG |
| Supported Pictures Formats | BMP, PNG, JPEG, WebP |
| USB Port | Yes |
| USB Ports Qty | 7 |
| Configuration | 4 x ARM Cortex-A73 + 4 x ARM Cortex-A53 - 8 GB - 128 GB eMMC - Mali-G52 |
