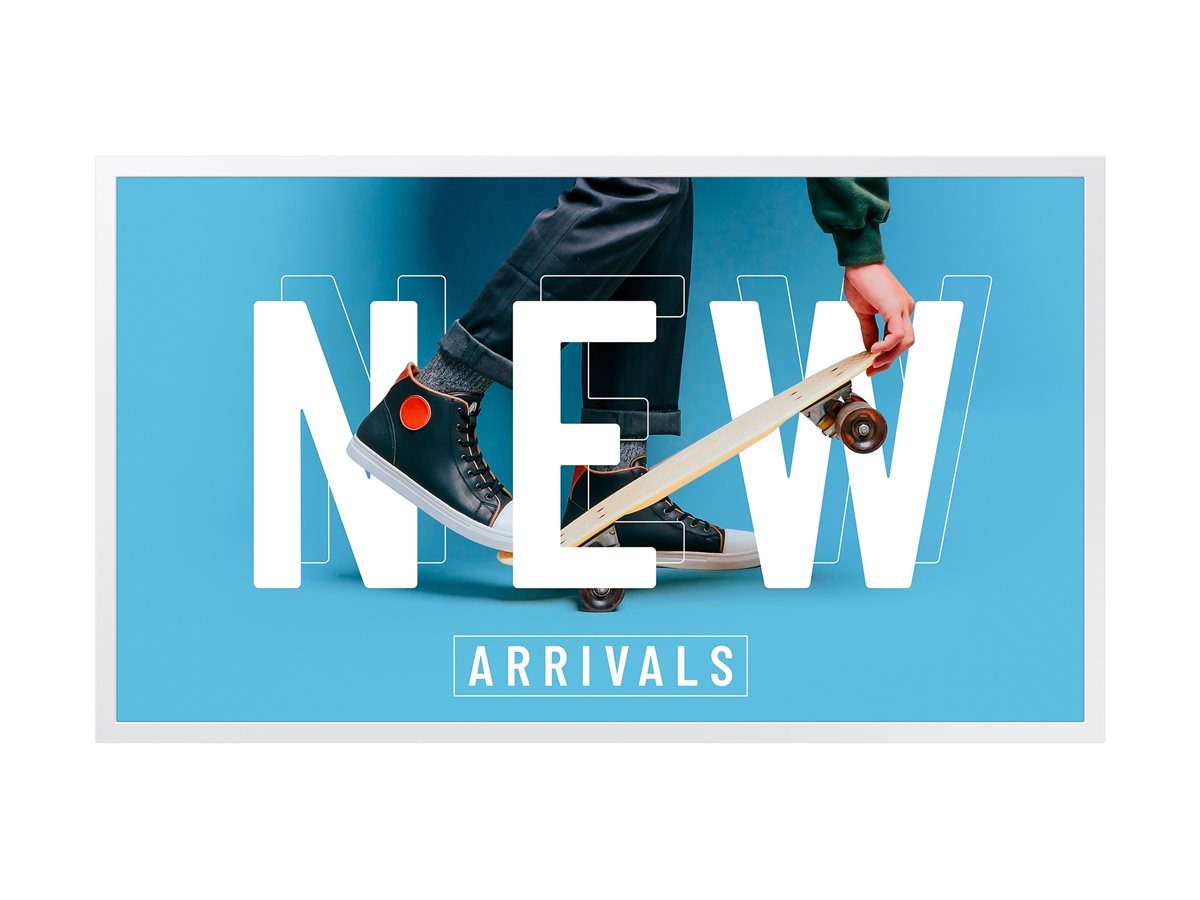

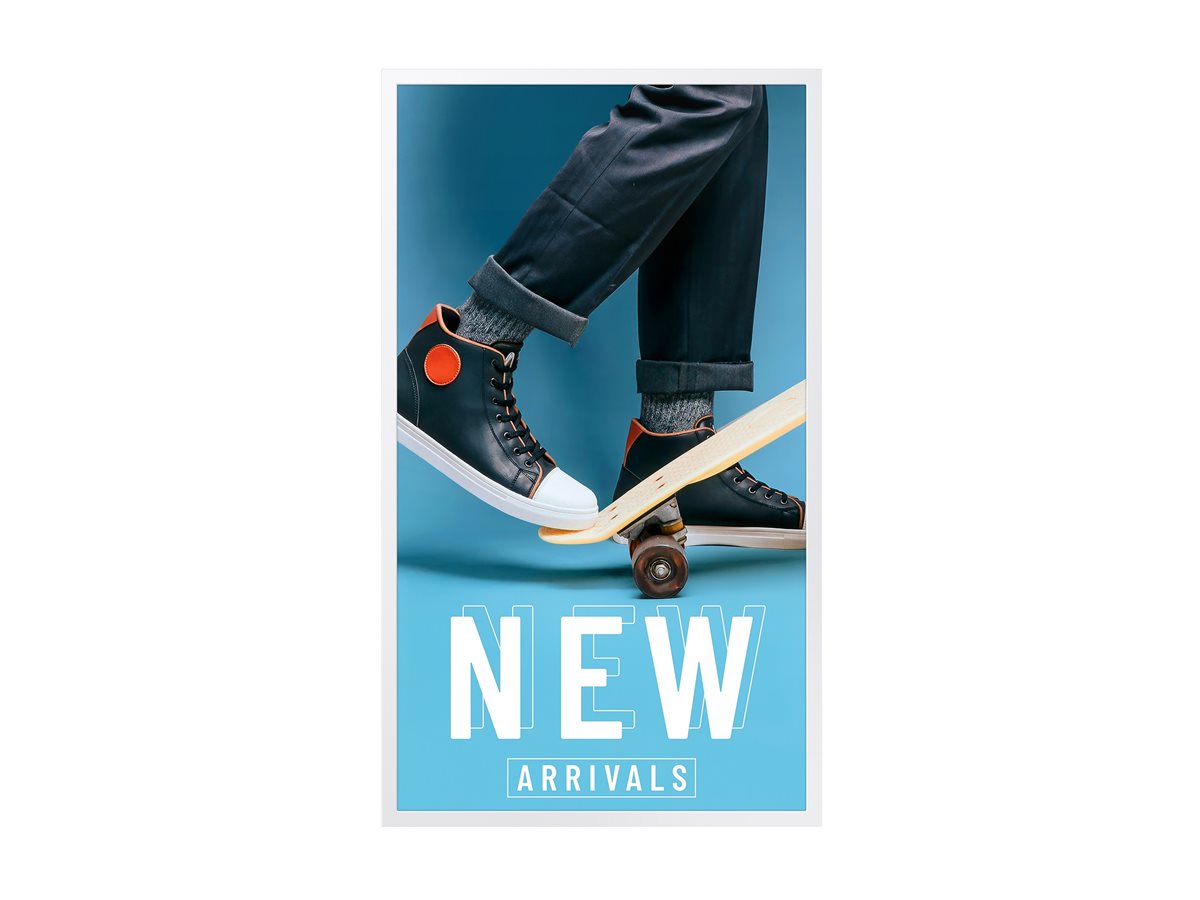

32" Diagonal Class (31.5" viewable) - EMDX-A series e-Paper display - E Ink Spectra 6 - digital signage - Tizen OS - 1440p (Quad HD) 2560 x 1440 - gray white
| Main Specifications | |
|---|---|
| Product Description | Samsung EM32DX-A EMDX-A series - 32" Class (31.5" viewable) e-Paper display - E Ink Spectra 6 - QHD - for digital signage |
| Product Type | E-Paper display - E Ink Spectra 6 |
| Diagonal Class | 32" |
| Diagonal Size | 31.5" |
| Commercial Use | Yes - digital signage |
| Color | Gray white |
| Platform | Tizen OS |
| Resolution | 2560 x 1440 |
| Display Format | 1440p (Quad HD) |
| Connectivity | Wi-Fi, LAN, Bluetooth |

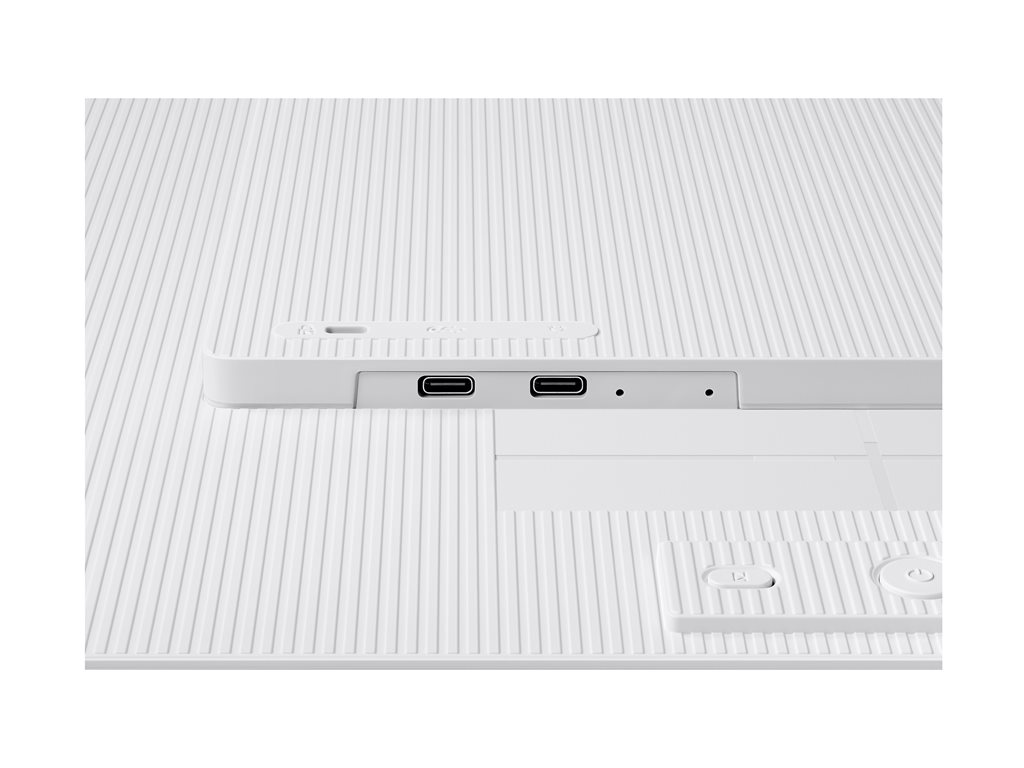

| PC Interface | USB-C |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Samsung VXT CMS, Custom App (TEP) compatible, Samsung E-Paper App |
| Picture Enhancements | Color Imaging Algorithm |
| Storage Capacity | 8 GB |
| USB | 2 ports |
| Battery | Battery lithium ion - 4600 mAh |
| Dimensions (WxDxH) - without stand | 28.5 in x 0.7 in x 16.6 in |
| Weight | 5.29 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | E-Paper display - E Ink Spectra 6 |
| Diagonal Class | 32" |
| Diagonal Size | 31.5" |
| Commercial Use | Yes - digital signage |
| Series | EMDX-A series |
| Platform | Tizen OS |
| Operating System | Tizen OS 8.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| PC Interface | USB-C |

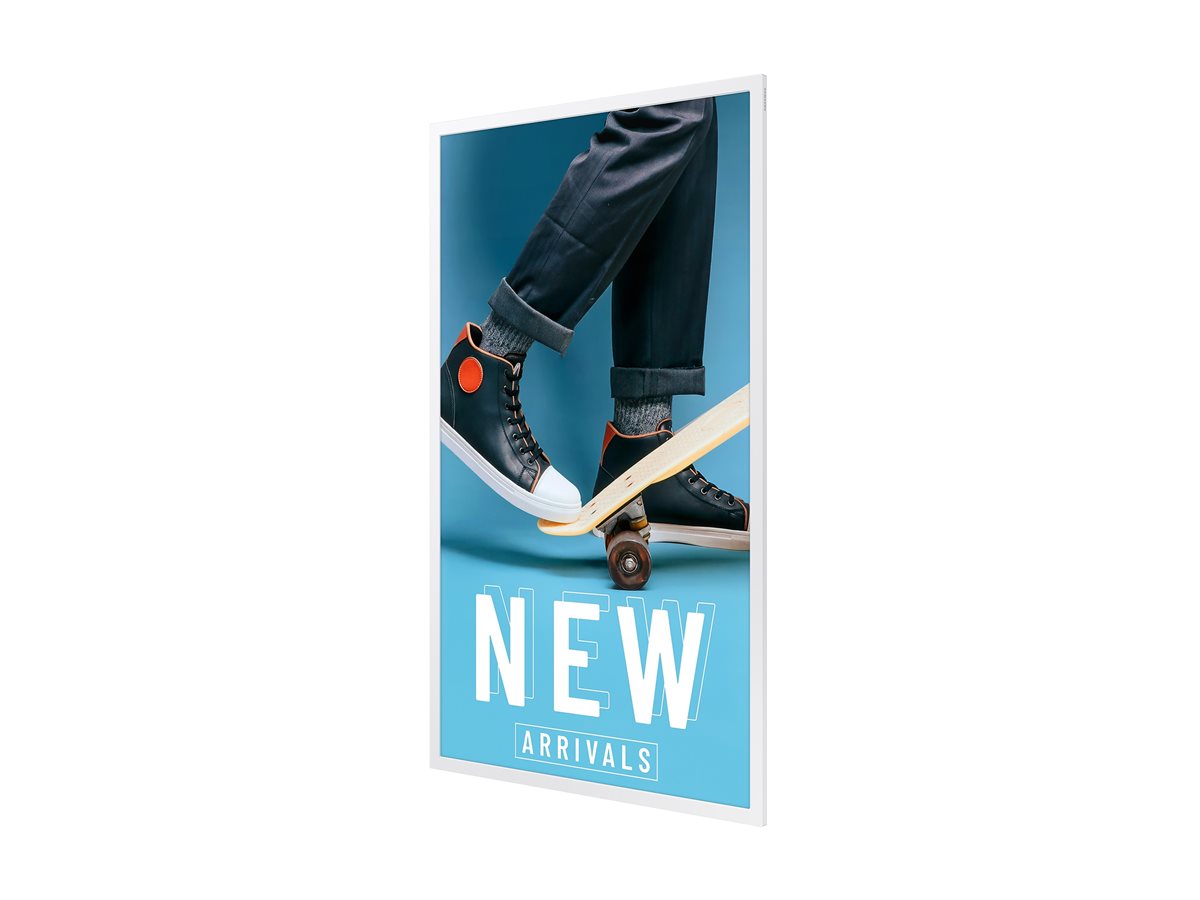

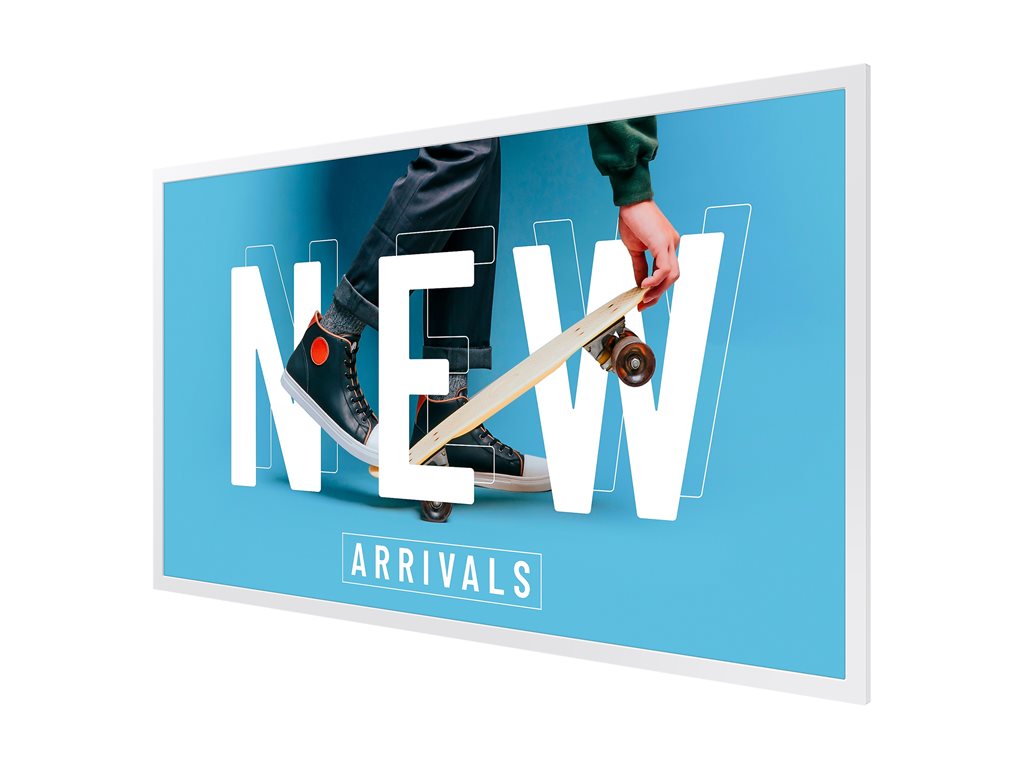

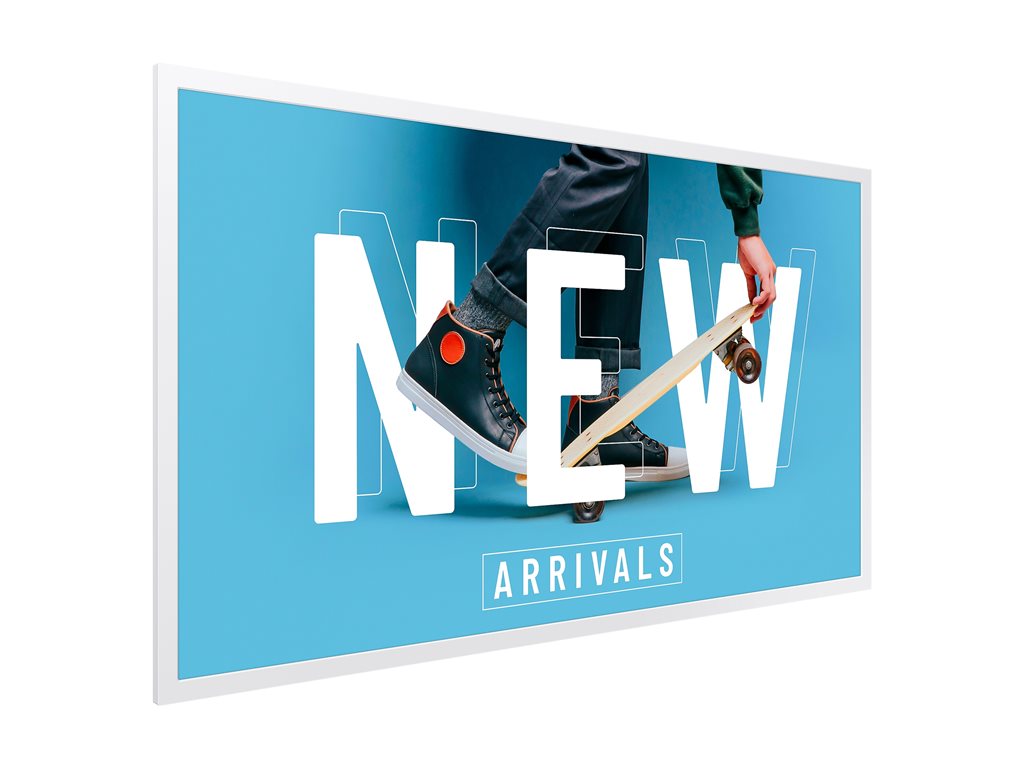

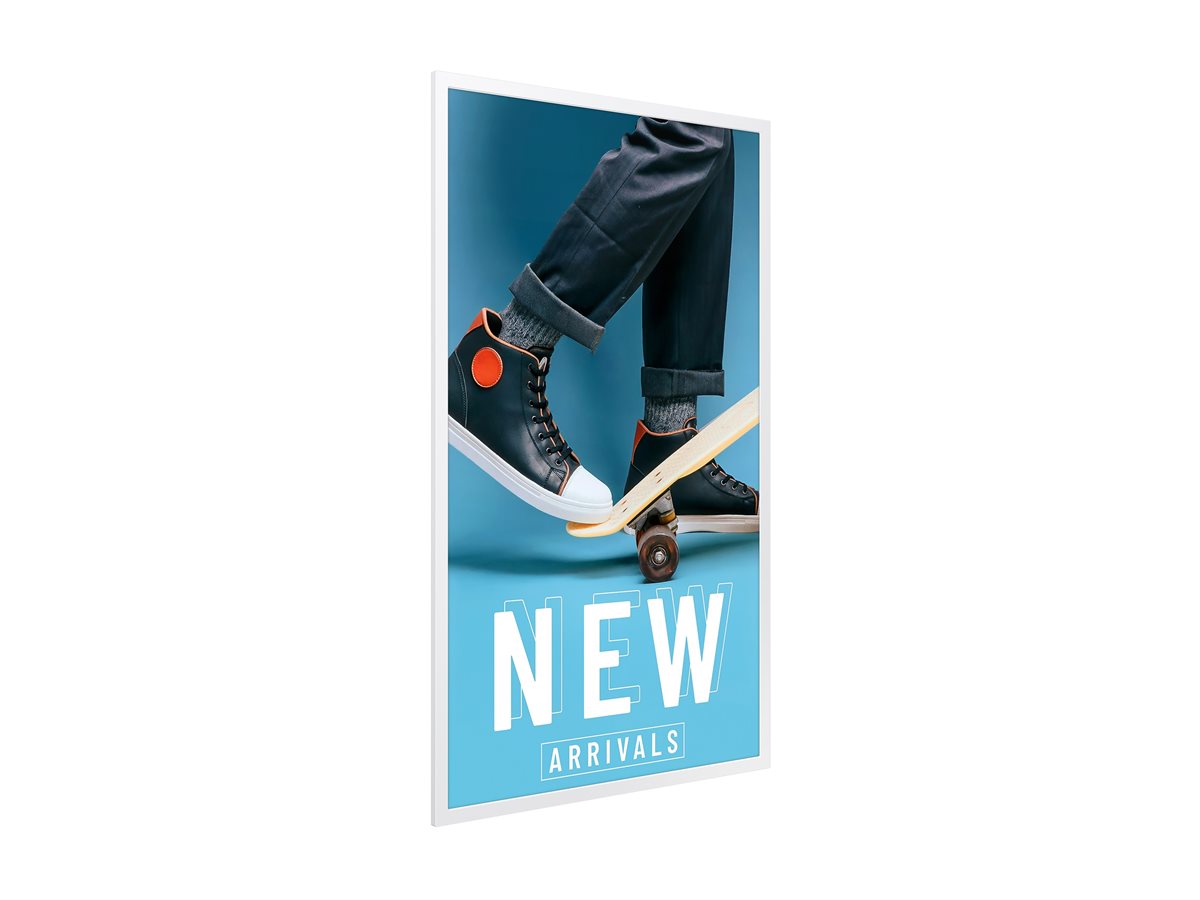

| Modes | Portrait mode, landscape mode |
| Picture Enhancements | Color Imaging Algorithm |

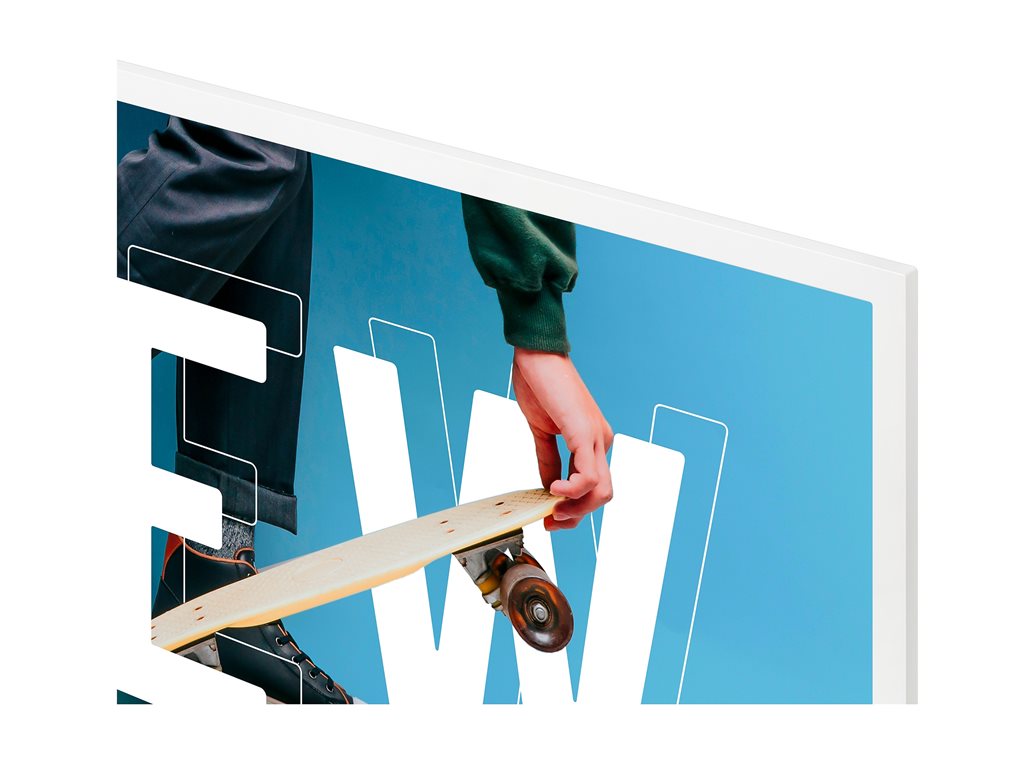

| Design | Ultra Thin Design |
| Dimensions | Without stand |
| Width | 28.5 in |

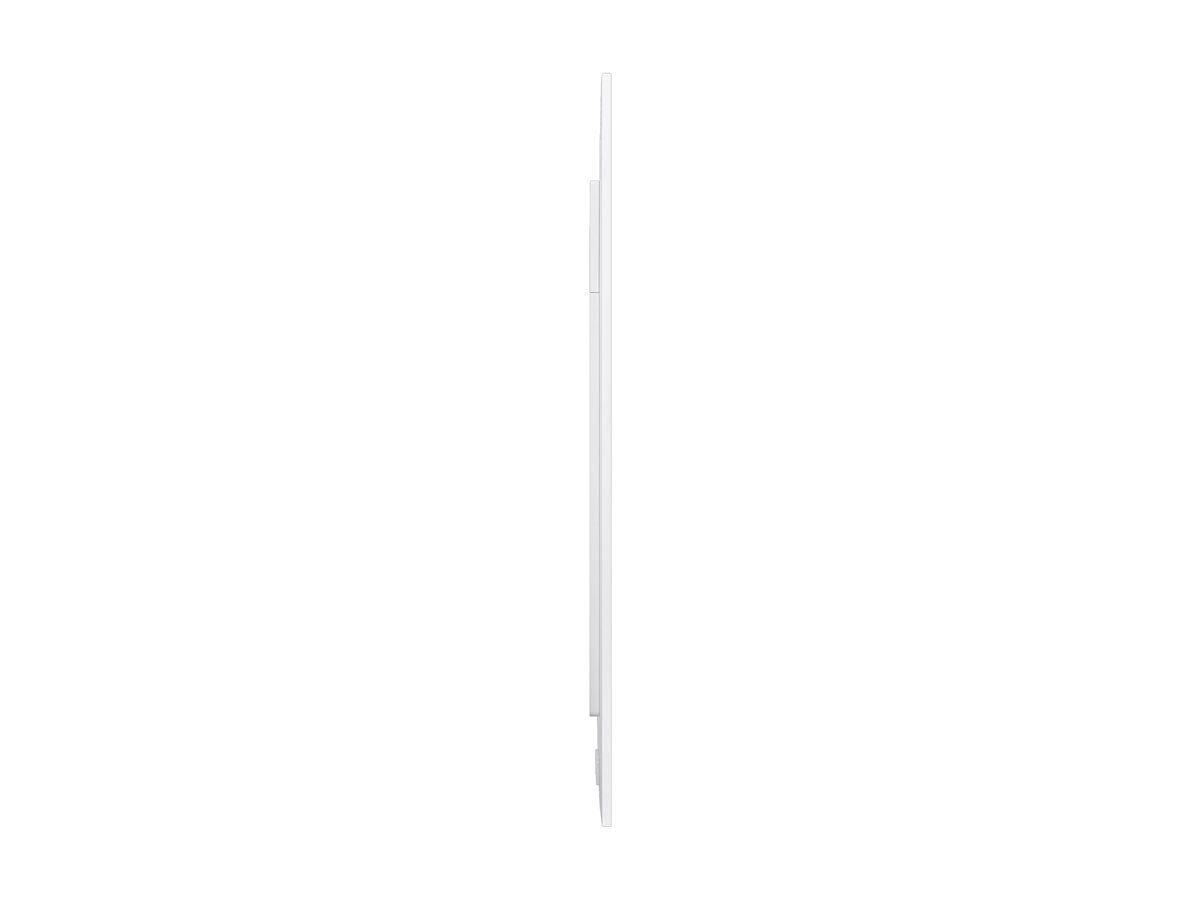

| Depth | 0.7 in |
| Height | 16.6 in |
| Weight | 5.29 lbs |
| Enclosure Color | Gray white |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Security Slot Type | Kensington security slot |
| Compliant Standards | EMC Class A, Safety 60950-1, Safety 62368-1 |
| Power | |
| Power Device | Power adapter + battery |
| Battery | Battery - lithium ion |
| Capacity | 4600 mAh |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 30 - 70% (non-condensing) |
| Display | |
| Pixel Pitch | 0.272 mm |
| Color Support | 54600 colors |
| Resolution | 2560 x 1440 |
| Display Format | 1440p (Quad HD) |
| Image Aspect Ratio | 16:9 |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Commercial Features | Samsung VXT CMS, Custom App (TEP) compatible, Samsung E-Paper App |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Security lock slot (cable lock sold separately), pivot |
| Connections | |
| Connector Type | USB 2.0 ¦ USB |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 35.8 in |
| Depth (Shipping) | 4.8 in |
| Height (Shipping) | 21 in |
| Weight (Shipping) | 16.09 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| Wi-Fi Protocol | 802.11ac |
| Bluetooth Version | Bluetooth 5.0 |
| Stands & Mounts | |

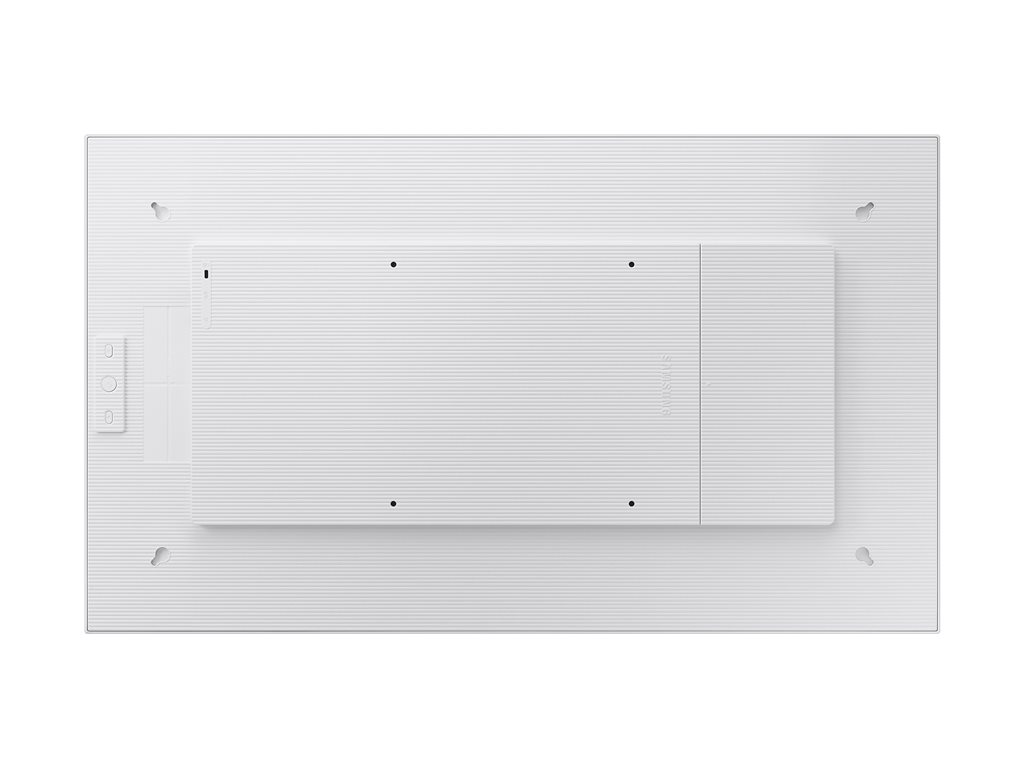

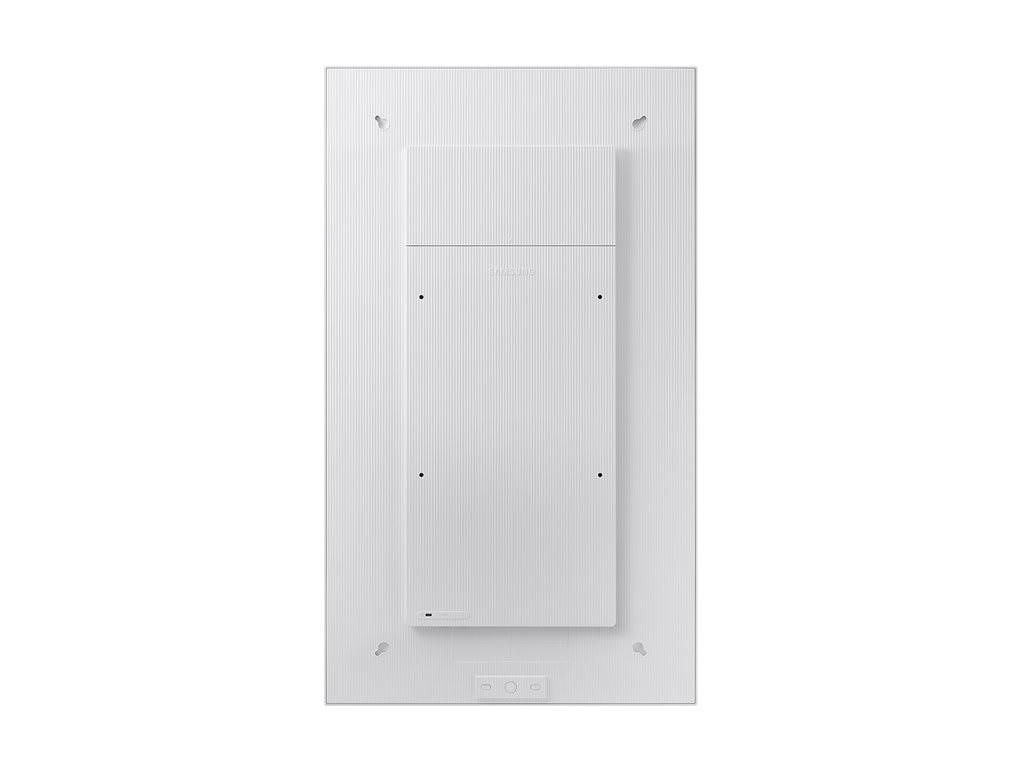

| Flat Panel Mount Interface | 200 x 200 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 8 GB |
