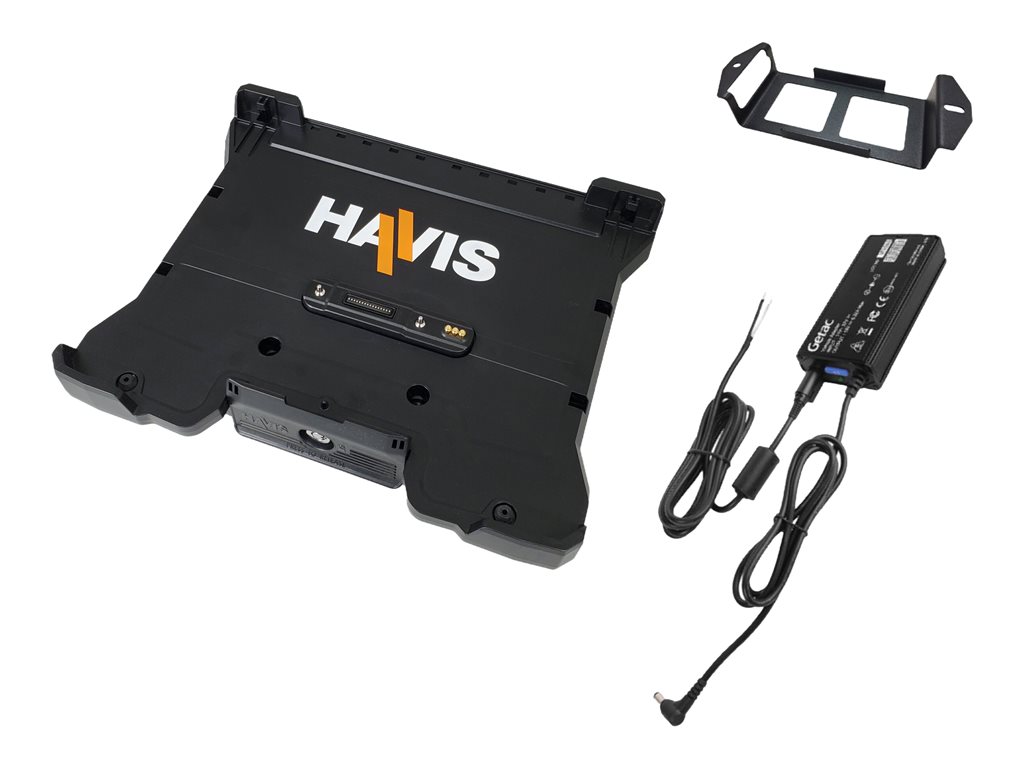

Docking station - HDMI, VGA - 10Mb LAN - 120 watt - with Havis Power Supply
| Main Specifications | |
|---|---|
| Product Description | Havis - docking station - HDMI, VGA - 10Mb LAN |
| Product Type | Docking station |
| Video Interfaces | HDMI, VGA |
| Bundled with | Havis Power Supply |
| Dimensions (WxDxH) | 13.8 in x 11.5 in x 2.4 in |
| Weight | 3.28 lbs |
| Networking | Ethernet |
| Power | Power supply 11 - 32 V 120 watt Power Provided (19 V) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Bundled with | Havis Power Supply |
| Width | 13.8 in |
| Depth | 11.5 in |
| Height | 2.4 in |
| Weight | 3.28 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x PoweredUSB 2.0 - 4 pin USB Type A ¦ 1 x USB-C 2.0 - 24 pin USB-C ¦ 2 x network - Ethernet - RJ-45 ¦ 1 x serial - 9 pin D-Sub (DB-9) ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 3 x antenna - SMA ¦ 3 x SuperSpeed USB 3.0 - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 keys, mounting bracket, mounting hardware |
| Features | Advanced port replication, compact, keyed lock, lightweight, one-handed docking & undocking, reinforced mounting bracket, tested up to 30000 cycles (latch, lock, dock) |
| Compliant Standards | MIL-STD 810H 514.8, SAE J1455, FCC, UKCA, WEEE |
| Networking | |
| Data Link Protocol | Ethernet |
| Power | |
| Power Device | Power supply |
| Voltage Required | 11 - 32 V |
| Power Provided | 120 watt |
| Voltage Provided | 19 V |
| Environmental Parameters | |
| Min Operating Temperature | -20.2 °F |
| Max Operating Temperature | 145.4 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 6.5 lbs |
