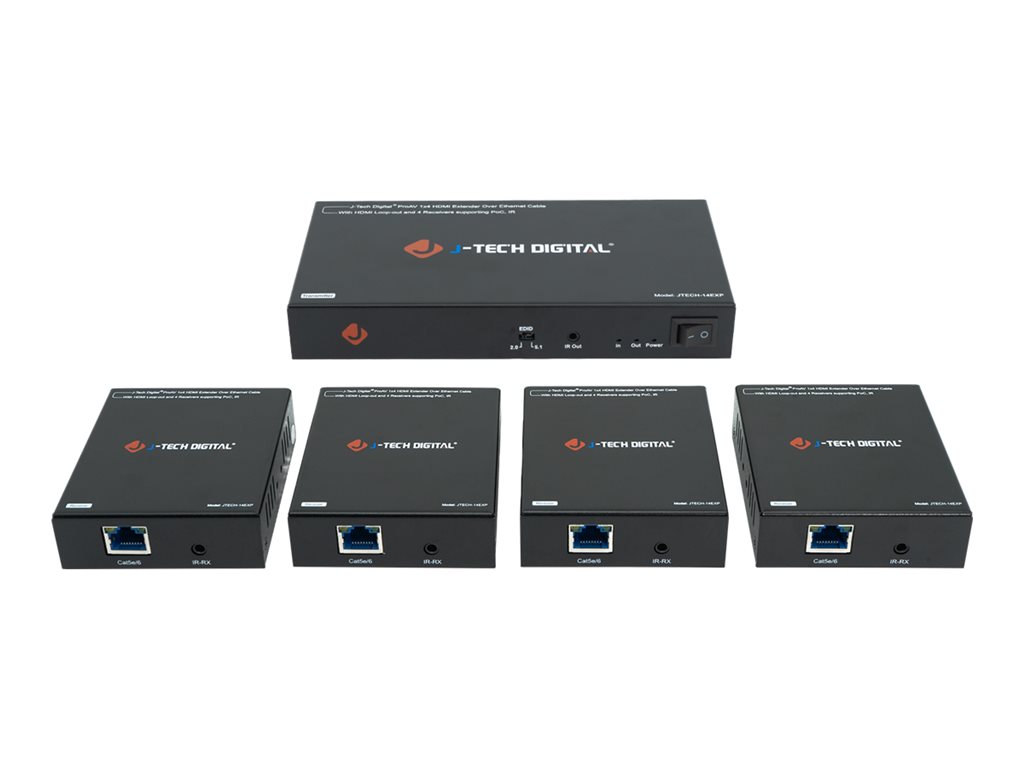

Transmitter + 4 receivers - video/audio extender - HDMI - over CAT 5e/6 - up to 164 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-14EXP - transmitter + 4 receivers - video/audio extender - HDMI |
| Device Type | Video/audio extender |
| Form Factor | Desktop |
| Data Transfer Rate | 6 Gbps |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 5e/6 |
| Max Transfer Distance | 164 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | DC 12 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Desktop |
| Expansion / Connectivity | |
| Interfaces | 4 x network (transmitter) - RJ-45 ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x IR output (transmitter) - 3.5 mm ¦ 1 x network (receiver) - RJ-45 ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x IR input (receiver) - 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 10 mounting brackets, power adapter |
| Cables Included | 1 x IR transmitter cable ¦ 4 x IR receiver cable |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 6 Gbps |
| Max Resolution | 1080p @ 60 Hz |
| Max Transfer Distance | 164 ft |
| Status Indicators | Power, HDMI input, HDMI output |
| Features | YUV 4:2:2, YUV 4:4:4, Adobe RGB support, AC3 support, DTS support, LPCM 2.0 support, LPCM 7.1 support, Dolby Digital support, 10-bit Deep Color support, 12-bit Deep Color support, 8-bit Deep Color support, EDID Management |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 8 in x 4.1 in x 1.1 in ¦ Receiver: 2.9 in x 3.3 in x 1.1 in |
