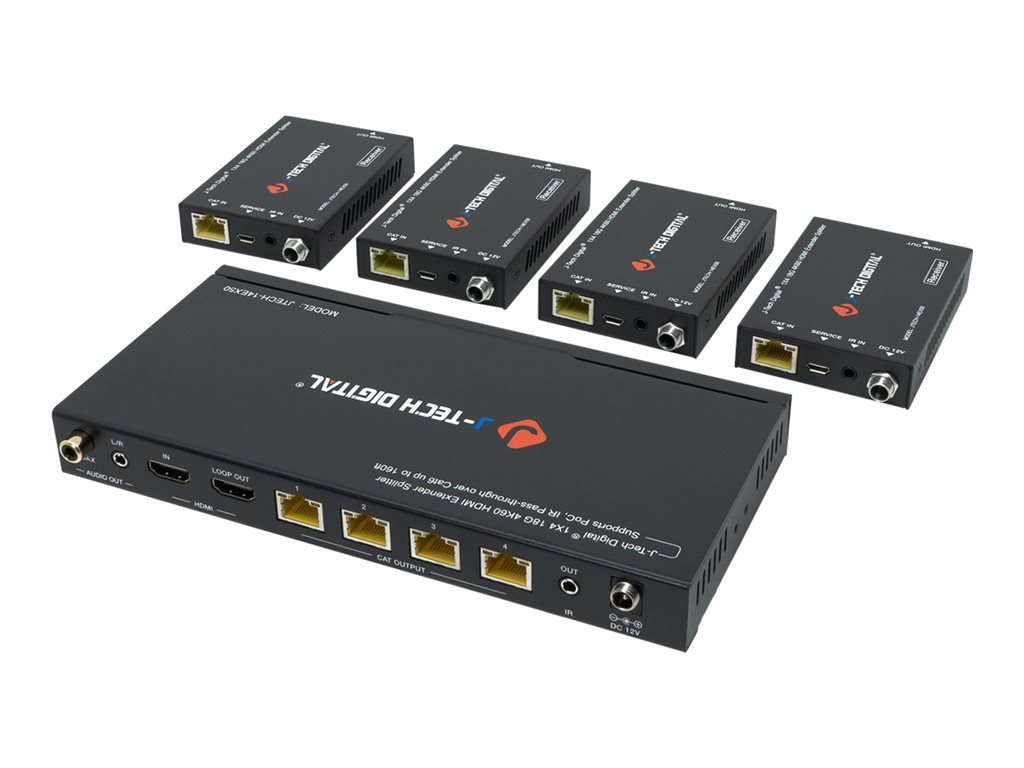

Transmitter + 4 receivers - video/audio extender - HDMI - over CAT 6/6a/7 - up to 197 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-14EX50 - transmitter + 4 receivers - video/audio extender - HDMI |
| Device Type | Video/audio extender |
| Form Factor | Desktop |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 6/6a/7 |
| Max Transfer Distance | 197 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Desktop |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 4 x network (transmitter output) - RJ-45 ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x IR output (transmitter) - 3.5 mm ¦ 1 x coaxial (transmitter) - RCA ¦ 1 x audio line-out (transmitter) - 3.5 mm ¦ 4 x network (receiver) - RJ-45 ¦ 4 x IR input (receiver) - 3.5 mm ¦ 4 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 4 x firmware upgrade (receiver) - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Locking power supply, 10 mounting brackets |
| Cables Included | 1 x IR blaster cable - 5 ft ¦ 4 x IR receiver cable - 5 ft |
| Compliant Standards | FCC, UL Certified |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 197 ft |
| Status Indicators | Power, HDMI input, HDMI output, network |
| Features | 3D support, Dolby Vision support, HDR10 support, HDR10+ support, Hybrid Log-Gamma (HLG) support, 1080p/60 resolution support, 4K30Hz support, 10-bit Deep Color support, 12-bit Deep Color support, 8-bit Deep Color support, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4, YUV 4:2:0, YUV 4:4:4, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Dolby Digital Plus support, Dolby TrueHD support, DTS ES support, DTS HRA support, DTS:X support, DTS-HD Master Audio support, LPCM 2.0 support, LPCM 2.1 support, LPCM 5.1 support, LPCM 6.1 support, LPCM 7.1 support, metal housing, Advanced EDID Management |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 8.3 in x 3.9 in x 1 in / 21.8 oz ¦ Receiver: 3.5 in x 2.4 in x 0.7 in / 5.5 oz |
