LCD projector - 6500 lumens - WUXGA (1920 x 1200) - 16:10 - 1200p - zoom lens - white
| Main Specifications | |
|---|---|
| Product Description | Panasonic PT-MZ682WU8 - LCD projector - zoom lens - white |
| Device Type | LCD projector - 1200p |
| Color | White |
| Brightness | 6500 lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens | Zoom lens |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode ¦ Up to 20000 hour(s) - quiet mode |
| Power | AC 100-120 / 200 - 240 V (50/60 Hz) |
| Dimensions (WxDxH) | 22.1 in x 17.3 in x 8.8 in |
| Weight | 38.8 lbs |
| General | |
| Device Type | LCD projector - 1200p |
| Enclosure Color | White |
| Expansion / Connectivity | |

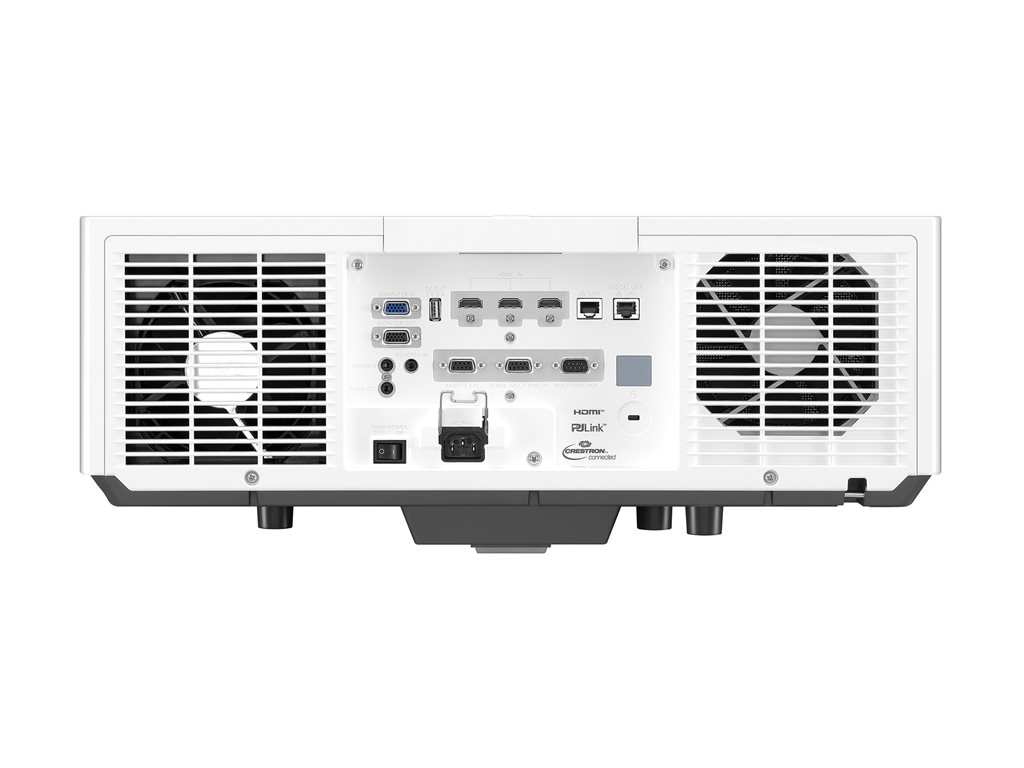

| Interfaces | 3 x HDMI input ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ Sync in - 9 pin D-Sub (DB-9) ¦ 1 x Sync out - 9 pin D-Sub (DB-9) (male) ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x serial RS-232C / Sync in - 9 pin D-Sub (DB-9) ¦ 1 x serial RS-232C / Sync out - 9 pin D-Sub (DB-9) ¦ 2 x remote control - mini-phone stereo 3.5 mm ¦ 1 x DIGITAL LINK - RJ-45 ¦ 1 x network - RJ-45 ¦ 1 x USB (power only) - Type A |
| Miscellaneous | |
| Compliant Standards | HDCP 2.3, CEC |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-120 / 200 - 240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Sound Emission | 32 dB |
| Sound Emission (Economic Mode) | 32 dB |
| Video Input | |
| Video Interfaces | HDMI, VGA |
| Dimensions & Weight | |
| Width | 22.1 in |
| Depth | 17.3 in |
| Height | 8.8 in |
| Weight | 38.8 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 29.4 in |
| Shipping Depth | 13.1 in |
| Shipping Height | 21.1 in |
| Shipping Weight | 48.5 lbs |
| Projector | |
| Brightness | 6500 lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Throw Ratio | 1.61 - 2.76:1 |
| Uniformity | 85 % |
| Resolution | WUXGA - WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Display Format | 2,304,000 pixels (1920 x 1200) |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode ¦ Up to 20000 hour(s) - quiet mode |
| Controls & Adjustments | Keystone correction, lens shift dial (horizontal), lens shift dial (vertical) |
| Features | Plastic cabinet, SOLID SHINE Laser Technology |
| Lens | |
| Type | Zoom lens |
| Focus Type | Powered |
| Lens Aperture | F/1.7-2.3 |
| Zoom Type | Powered |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -25 / +25 |
| Horizontal Keystone Correction | -30 / +30 |
| Lens Shift Type | Powered |
| Lens Shift Direction | Horizontal, vertical |
