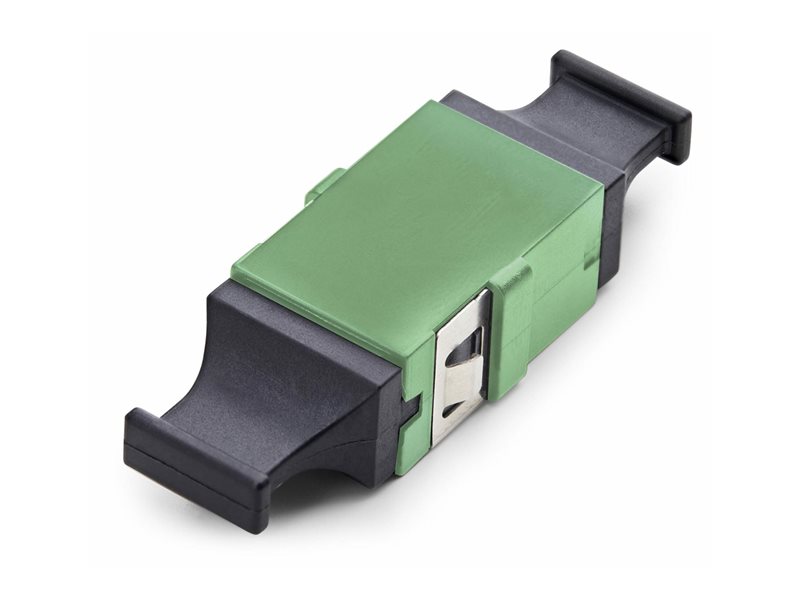

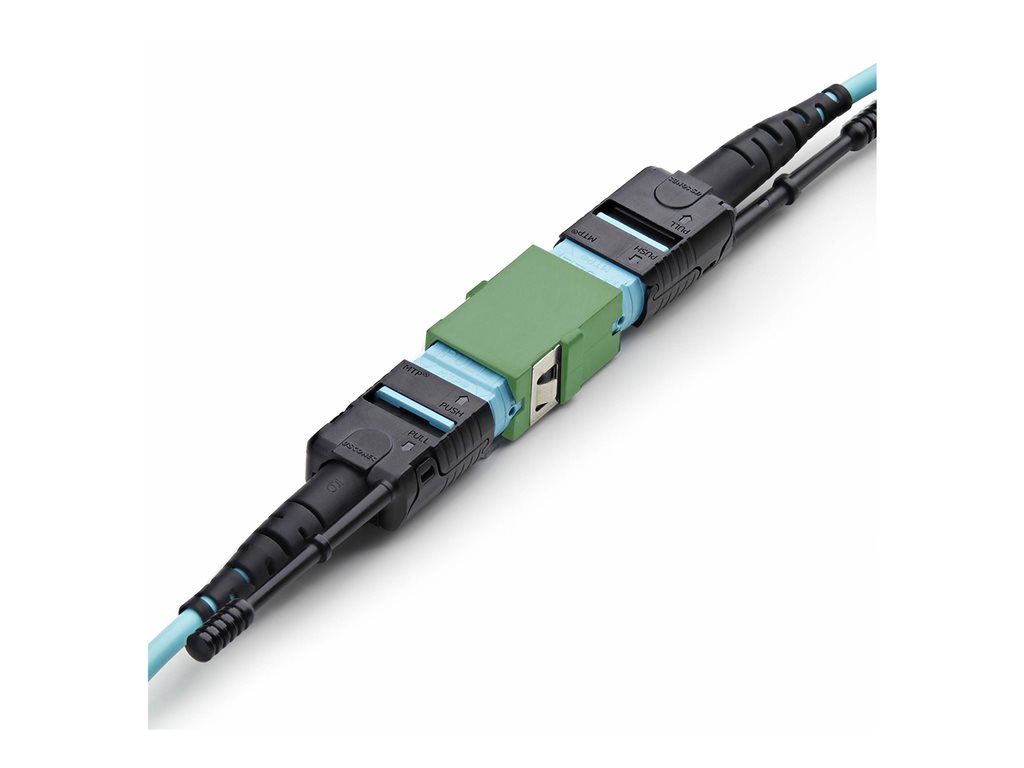

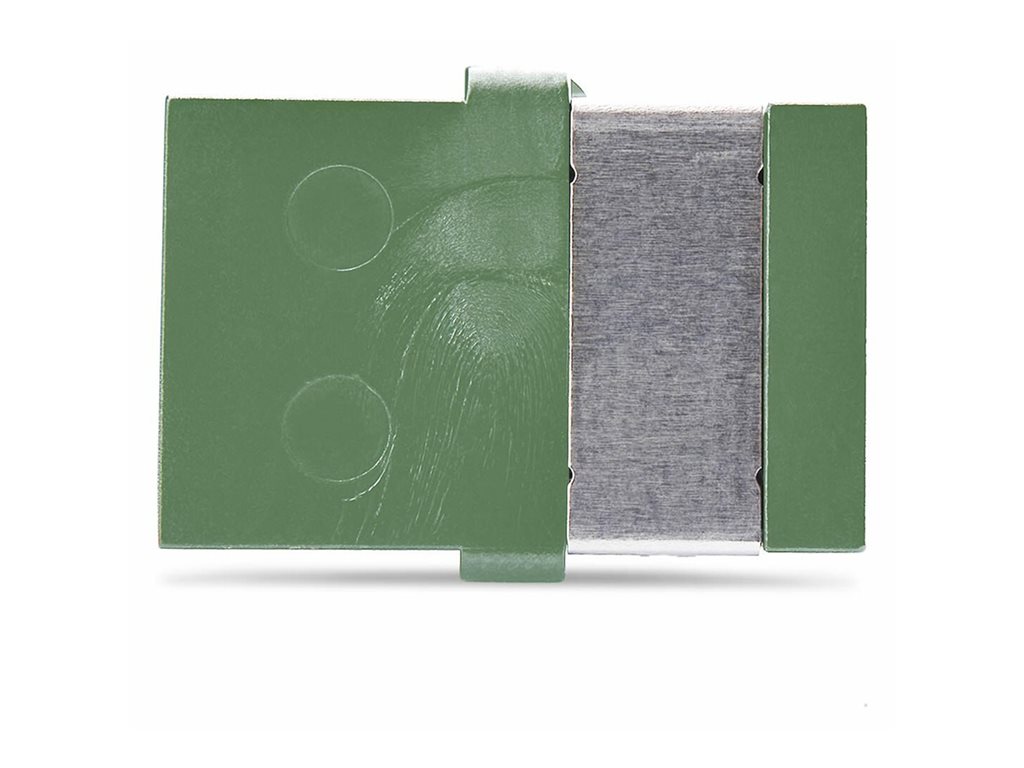

Network coupler - TAA Compliant - MTP/MPO/APC single-mode (F) to MTP/MPO/APC single-mode (F) - fiber optic - 9 / 125 micron - OS1/OS2 - passive - green
| Main Specifications | |
|---|---|
| Product Description | Startech network coupler - TAA Compliant - green |
| Type | Network coupler - OS1/OS2 |
| Technology | Fiber optic |
| Type of Fiber Optics | Singlemode |
| Features | Passive adapter, up to 100 Gbps, wavelength of 1310/1550 nm, 0.2 dB insertion loss, ABS shell |
| Core / Cladding Diameter | 9 / 125 micron |
| Connector | MTP/MPO/APC single-mode - female |
| Connector (Second End) | MTP/MPO/APC single-mode - female |
| Color | Green |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Network Cable Type | Network coupler - OS1/OS2 |
| Technology | Fiber optic |
| Type of Fiber Optics | Singlemode |
| Core / Cladding Diameter | 9 / 125 micron |
| Features | Passive adapter, up to 100 Gbps, wavelength of 1310/1550 nm, 0.2 dB insertion loss, ABS shell |
| Width | 0.6 in |
| Depth | 1.8 in |
| Height | 0.4 in |
| Weight | 0.14 oz |
| Color | Green |
| Manufacturer Warranty | |
| Service & Support | 1-year warranty |
| Miscellaneous | |
| Compliant Standards | Plug and Play, TIA-568.3-D |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Connectivity | |
| Connector | MTP/MPO/APC single-mode - female |
| Connector (Second End) | MTP/MPO/APC single-mode - female |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3.5 in |
| Shipping Depth | 4.7 in |
| Shipping Height | 0.4 in |
| Shipping Weight | 0.18 oz |
