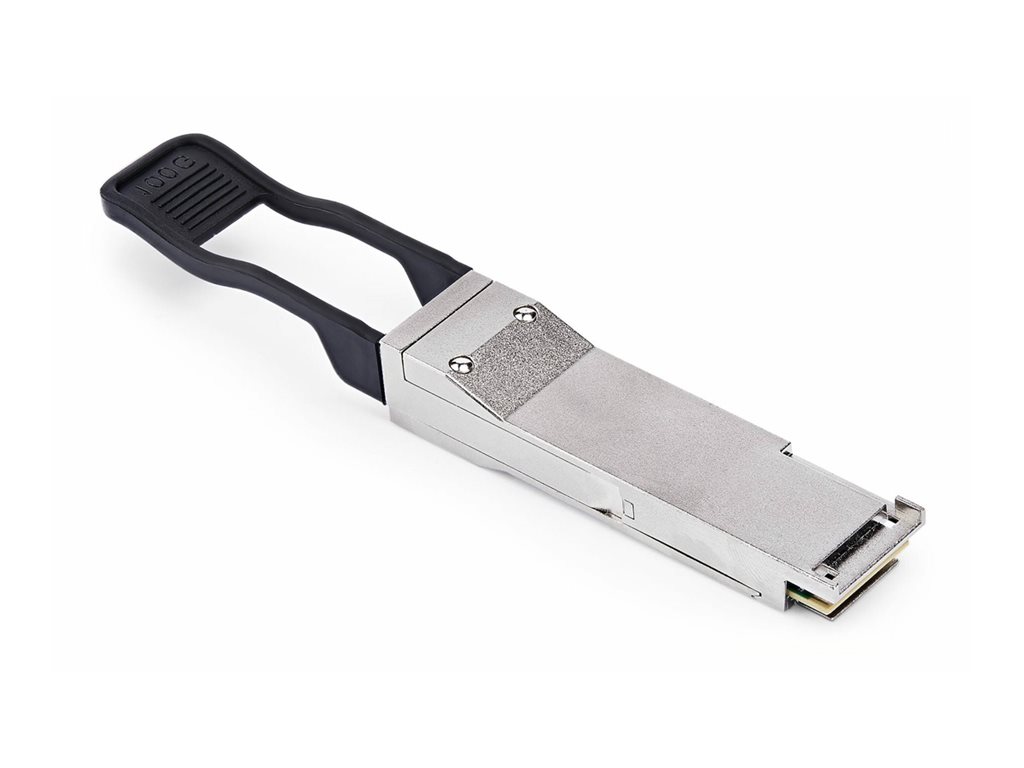

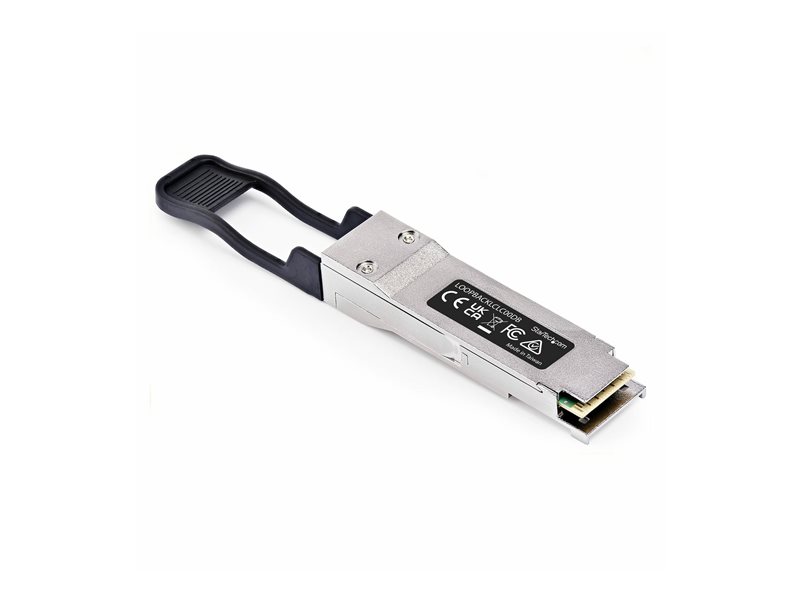

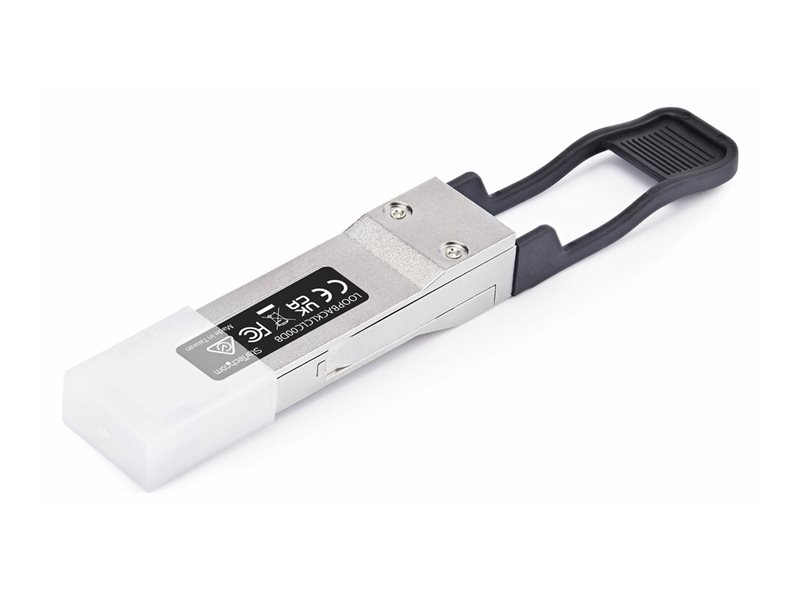

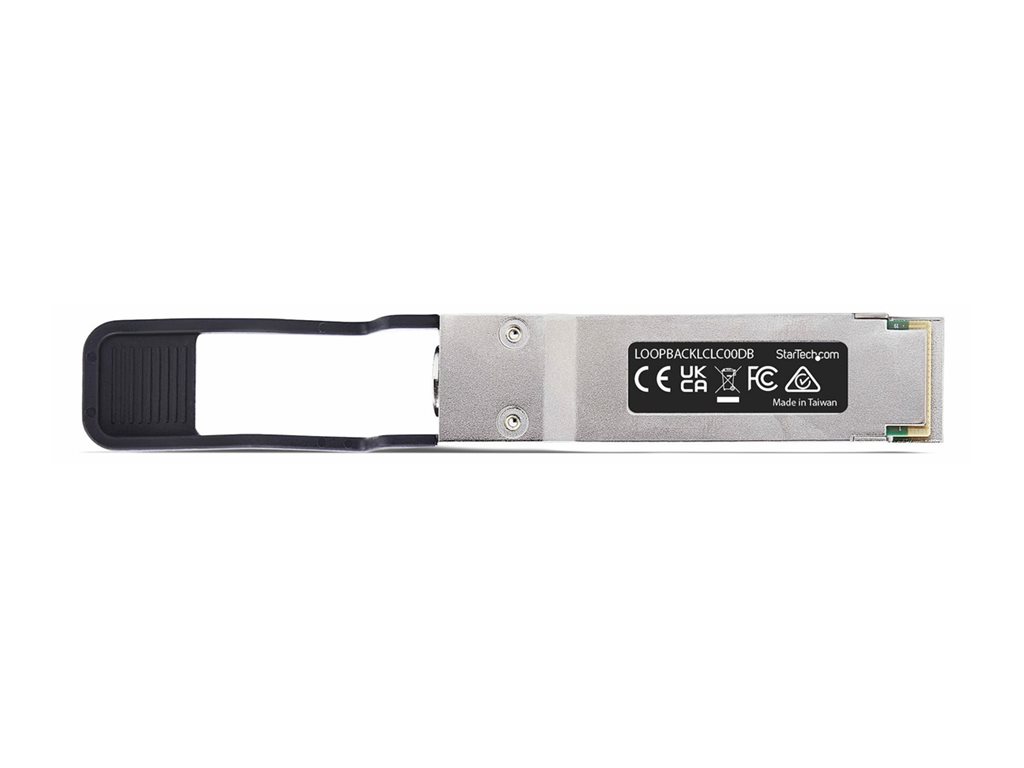

QSFP28 passive loopback testing module - 100GbE, 40GbE - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech - QSFP28 passive loopback testing module - 100GbE, 40GbE - TAA Compliant |
| Device Type | QSFP28 passive loopback testing module |
| Form Factor | Plug-in module |
| Data Transfer Rate | 100 Gbps |
| Data Link Protocol | 100GbE, 40GbE |
| Dimensions (WxDxH) | 0.7 in x 5 in x 0.5 in |
| Weight | 1.34 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | QSFP28 passive loopback testing module |
| Form Factor | Plug-in module |
| Color | Silver |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | MSA, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Data Link Protocol | 100GbE, 40GbE |
| Data Transfer Rate | 100 Gbps |
| Features | Low jitter, compact |
| Compliant Standards | IEEE 802.3, IEEE 802.3ba |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 5 in |
| Height | 0.5 in |
| Weight | 1.34 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 0.8 in |
| Shipping Depth | 3.7 in |
| Shipping Height | 0.6 in |
| Shipping Weight | 1.62 oz |
