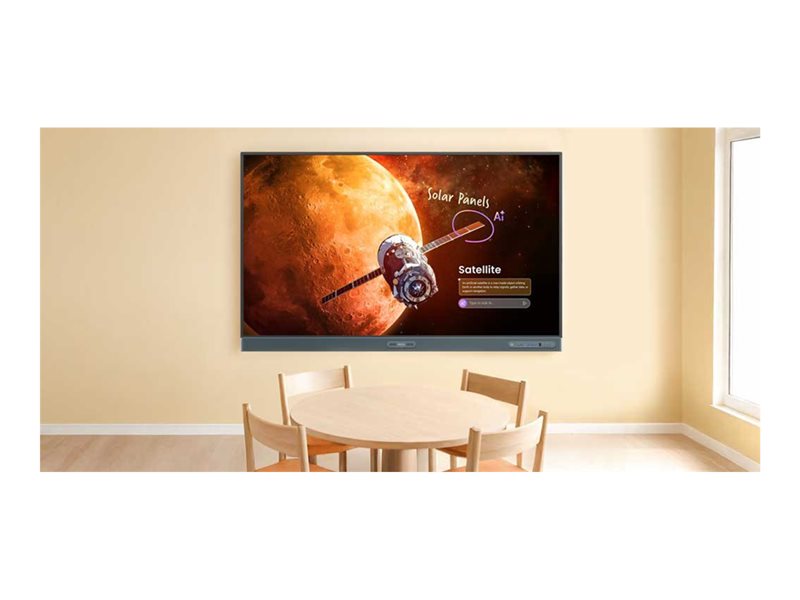

65" Diagonal Class RP05 Series LED-backlit LCD display - education / business - with built-in interactive whiteboard, touchscreen (multi touch) - Android - 4K UHD (2160p) 3840 x 2160
| Main Specifications | |
|---|---|
| Product Description | BenQ Board Pro RP6505 RP05 Series - 65" LED-backlit LCD display - 4K - for education / business |
| Product Type | LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch) |
| Diagonal Class | 65" |
| Commercial Use | Yes - education / business |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | LAN, Wi-Fi, Bluetooth, NFC |
| PC Interface | DisplayPort, VGA (HD-15), USB-C |
| Technology | IPS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Open Pluggable Standard (OPS) support, BenQ Device Management Solution (DMS), BenQ Account Management System (AMS) |
| Picture Enhancements | 72% Color Gamut NTSC |
| Speaker System | 2 speakers |
| Storage Capacity | 256 GB |
| Supported Memory Cards | microSD |
| USB | Yes, 10 ports |
| Included Accessories | Remote control, pen tray, EZWrite 6.0, Floating Tool, X.Sign Broadcast, 2 pens |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 77.4 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 58.6 in x 5.1 in x 36.9 in |
| Weight | 76.06 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 77.4 watt |
| Diagonal Class | 65" |
| Commercial Use | Yes - education / business |
| Combined With | Built-in interactive whiteboard, touchscreen (multi touch) |
| Series | RP05 Series |
| Platform | Android |
| Operating System | Android OS 15 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | NFC sensor, ambient light sensor (ALS), Infrared (IR), air quality sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort, VGA (HD-15), USB-C |
| Modes | Landscape mode |
| Picture Enhancements | 72% Color Gamut NTSC |
| Protection | Germ-resistant |
| Width | 58.6 in |
| Depth | 5.1 in |
| Height | 36.9 in |
| Weight | 76.06 lbs |
| Miscellaneous | |
| Included Accessories | Pen tray, EZWrite 6.0, Floating Tool, X.Sign Broadcast, 2 pens |
| Cables Included | USB-C cable - 5 ft ¦ HDMI cable - 10 ft ¦ USB touch cable - 10 ft |
| Compliant Standards | Google EDLA, SIAA |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Display | |
| LCD Display Technology | IPS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Coating | Nano-ionic silver coating, anti-glare, 9H Hard |
| Image Contrast Ratio | 1500:1 |
| Dynamic Contrast Ratio | 50000:1 |
| Brightness | 450 cd/m² |
| Touchpoints Qty | 50 |
| Response Time | 8 ms |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Open Pluggable Standard (OPS) support, BenQ Device Management Solution (DMS), BenQ Account Management System (AMS) |
| Operation Hours / Days | 18 / 7 |
| Additional Features | 10-bit support, Ultra Precision IR technology, Air Ionizer, Flicker free technology, Low Blue Light Technology, 10 TOPS NPU |
| Connections | |
| Connector Type | 3 x HDMI input ¦ HDMI output ¦ VGA input ¦ DisplayPort ¦ 4 x USB 3.0 ¦ 3 x USB 2.0 ¦ USB-C 3.0 with 100W Power Delivery ¦ 2 x USB-C 2.0 ¦ 3 x touch ¦ Microphone ¦ Audio line-out ¦ SPDIF output ¦ LAN ¦ 2 x audio line-in ¦ RS-232 |
| Remote Control | |
| Type | Remote control |
| Features | Voice control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 70 watt |
| Additional Features | Built-in 8-array microphone |
| Speakers | 2 x main channel speaker - 25 watt ¦ 1 x subwoofer - 20 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 64.1 in |
| Depth (Shipping) | 8.2 in |
| Height (Shipping) | 40.3 in |
| Weight (Shipping) | 98.1 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi, Bluetooth, NFC |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11ax |
| Bluetooth Version | Bluetooth 5.2 |
| Connect & Share | InstaShare 2 |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Memory Cards | microSD |
| USB Port | Yes |
| USB Ports Qty | 10 |
| Configuration | 2 x ARM Cortex-A78 + 6 x ARM Cortex-A55 - 16 GB - 256 GB - ARM Mali-G57 MC2 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
