Motherboard - extended ATX / SSI EEB - LGA4710-2 Socket - W890 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 2 - Gigabit LAN, 10 Gigabit LAN - onboard graphics - HD Audio (8-channel)
| Main Specifications | |
|---|---|

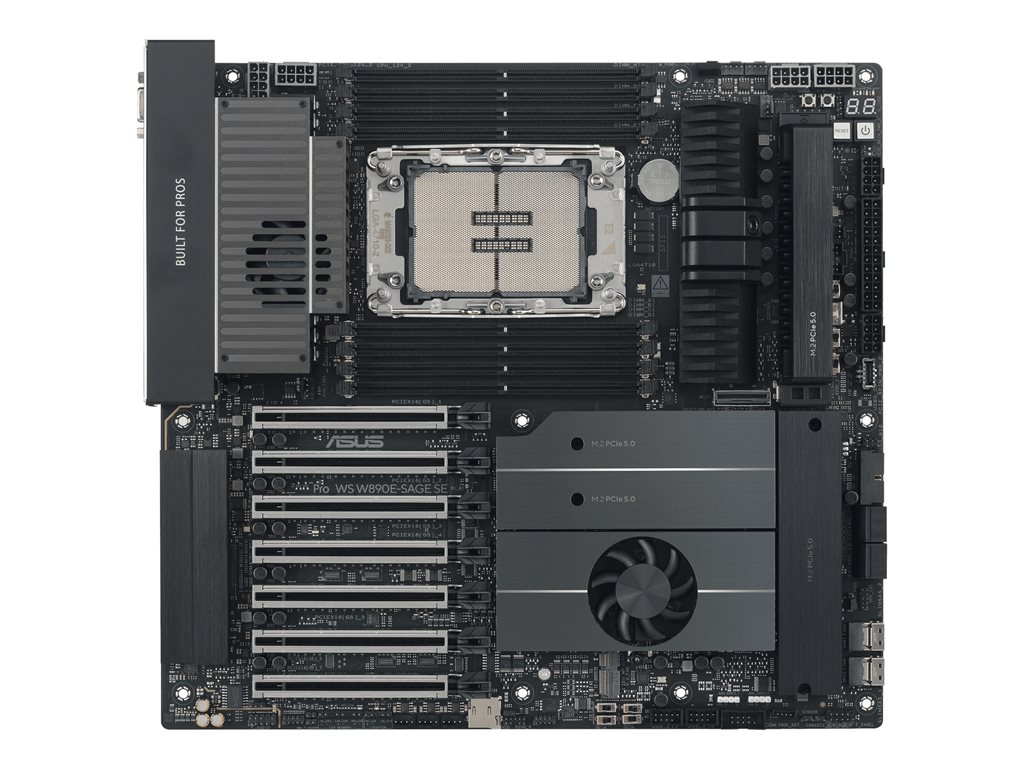

| Product Description | ASUS Pro WS W890E-SAGE SE - motherboard - extended ATX / SSI EEB - LGA4710-2 Socket - W890 |
| Product Type | Motherboard - extended ATX / SSI EEB |
| Chipset Type | Intel W890 |
| Processor Socket | 1 x LGA4710-2 Socket |
| Compatible Processors | (supports Intel Xeon 600 series) |
| Max RAM Size | 4 TB |
| RAM Supported | 8 DIMM slots - DDR5, ECC, unbuffered, registered, 3DS-RDIMM, MRDIMM |
| Storage Ports | 1 x MCIO, 4 x M.2, 2 x SlimSAS, 4 x SATA-600 (RAID) |
| USB / FireWire Ports | 2 x USB4 + 6 x USB 3.2 Gen 2 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Graphics | ASPEED AST2600 |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet, 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - extended ATX / SSI EEB |
| Chipset Type | Intel W890 |
| Processor Socket | LGA4710-2 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Xeon 600 series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 7 x PCIe 5.0 x16 ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x SlimSAS - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x MCIO - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x LAN (Gigabit Ethernet)/management ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x Mini DisplayPort ¦ 2 x USB4/DisplayPort ¦ 6 x USB 3.2 Gen 2 ¦ 1 x VGA |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin PCI Express power connector, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express to CPU power connector |
| Miscellaneous | |
| Included Accessories | Thermistor cable pack, 4-pin to 24-pin adapter cable, AngleBoost fan kit, 2 x thermal pads for M.2 SSD, 2 x M.2 screw package, AMI license sticker, M.2 backplate rubber package, M.2 Q-Latch, Q-Connector, E2A CPU carrier, E2B CPU carrier, ACC Express Activation Key Card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS Control Center Express, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| Width | 12 in |
| Depth | 13 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | BIOS FlashBack button, Preboot eXecution Environment (PXE), BIOS FlashBack LED, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ESD Guards, LANGuard, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Code, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS SafeDIMM, Clear CMOS Button, CrashFree BIOS 3, M.2 heatsink, M.2 heatsink backplate, overcurrent protection, pre-mounted I/O shield, Q-LED, Q-Slot, steel backplate, VRM heatsink design, FlexKey button, ReTry button, 16+2+2+1+2 Phase Power Design, chipset heatsink |
| LAN | |
| Network Interfaces | Gigabit Ethernet, 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 4 TB |
| Technology | DDR5 |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered, registered, 3DS-RDIMM, MRDIMM |
| Features | Intel Extreme Memory Profiles (XMP), 8-channel memory architecture |
