Barcode scanner - portable - 2D imager - 60 scan / sec - decoded - Bluetooth 2.1 EDR, Bluetooth 2.1
| Main Specifications | |
|---|---|

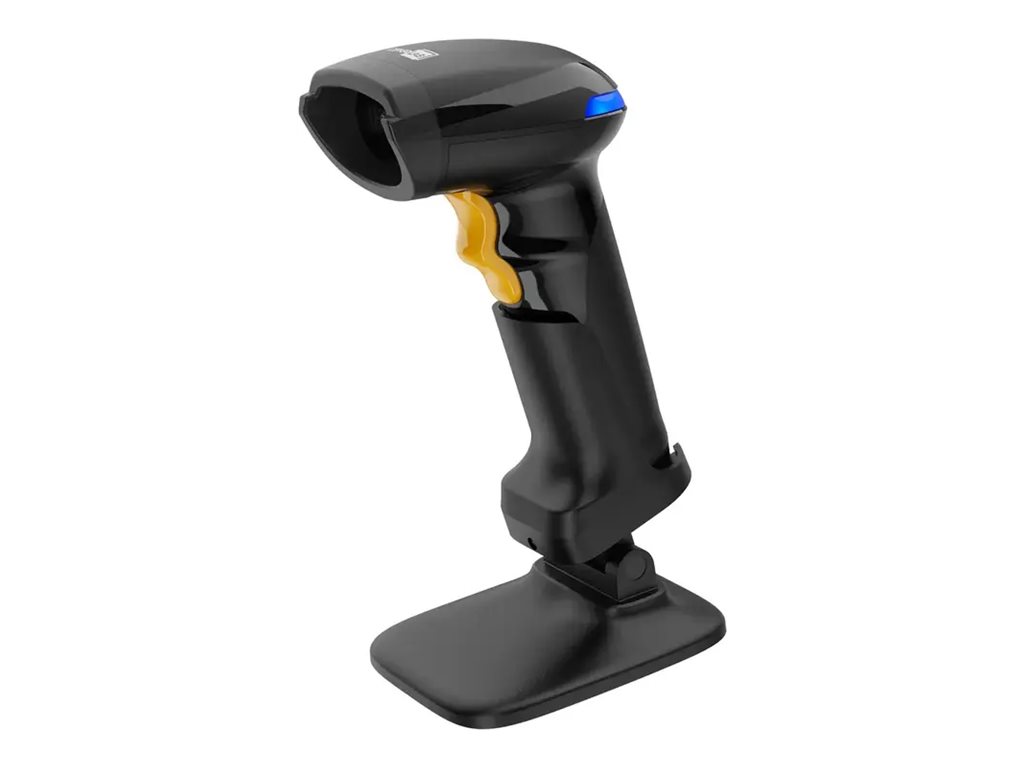

| Product Description | CipherLab 1264 - barcode scanner |
| Type | Barcode scanner - portable - Bluetooth 2.1 EDR, Bluetooth 2.1 - decoded |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - white LED |
| Sensor Resolution | 640 x 480 |
| Scan Speed | 60 scan / sec |
| Connectivity Technology | Wireless |
| Wireless Connectivity | Bluetooth 2.1, Bluetooth 2.1 EDR |
| Dimensions (WxDxH) | 3.4 in x 6.6 in x 2.6 in |
| Weight | 6.7 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - portable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Charging cradle |
| Cables Included | 1 x USB-C cable |
| Compliant Standards | IP42, BSMI, FCC |
| Networking | |
| Wireless Connectivity | Bluetooth 2.1, Bluetooth 2.1 EDR |
| Power | |
| Power Device | Barcode scanner charging stand |
| Electric Current Required | 120 mA (standby), 350 mA (operating) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% |
| Drop Specification | 5 ft |
| Dimensions & Weight | |
| Width | 3.4 in |
| Depth | 6.6 in |
| Height | 2.6 in |
| Weight | 6.7 oz |
| Barcode | |
| Interface Type | Bluetooth 2.1 EDR, Bluetooth 2.1 |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - white LED |
| Sensor Resolution | 640 x 480 |
| Scan Mode | Single-pass |
| Scan Speed | 60 scan / sec |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Codabar, Code 11, Code 93, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 128, GS1-128, UPC-A, UPC-E, EAN-8, EAN-13, GS1 DataBar, RSS-14, GS1 DataBar Limited, GS1 DataBar Expanded, PDF417, MicroPDF417, DataMatrix, QR code, Micro QR code, Aztec |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| Features | Serial Port Profile (SPP), Human Interface Device Profile (HID), Generic Attribute Profile (GATT), presentation mode scanning, 2600 mAh battery, 15 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge) |
