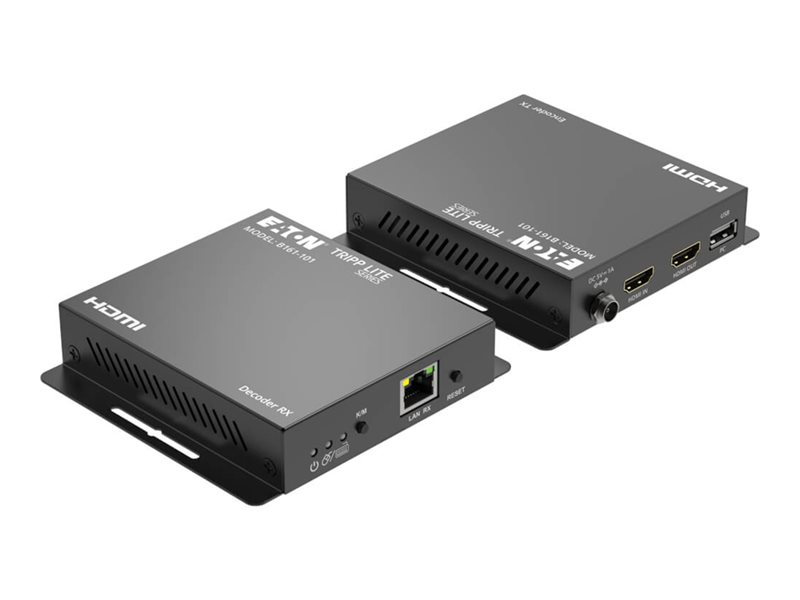

KVM / video / audio extender - receiver - HDMI, 1GbE - over CAT 5/5e/6 - USB - up to 394 ft
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - KVM / video / audio extender - HDMI, 1GbE |
| Device Type | KVM / video / audio extender (receiver) - USB |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDMI, 1GbE |
| Transmission Medium | CAT 5/5e/6 |
| Max Transfer Distance | 394 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 6.7 in x 5 in x 1.1 in |
| Weight | 23.63 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | KVM / video / audio extender (receiver) |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10/100 - RJ-45 ¦ 1 x HDMI output - 19 pin HDMI Type A female ¦ 2 x USB - Type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 4 international power plugs |
| Cables Included | USB-A cable |
| Compliant Standards | Plug and Play, C-Tick, FCC, PSE Mark, RoHS, TUV, UL, WEEE, cUL, NOM, REACH, UKCA |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, 1GbE |
| Data Transfer Rate | 10.2 Gbps |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 394 ft |
| Status Indicators | Power, KVM |
| Features | TCP/IP support, nickel plated connector, cascadable, metal housing, 3D support, 12-bit Deep Color support, wall mountable |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 5 in |
| Height | 1.1 in |
| Weight | 23.63 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.6 in |
| Shipping Depth | 7.7 in |
| Shipping Height | 2.4 in |
