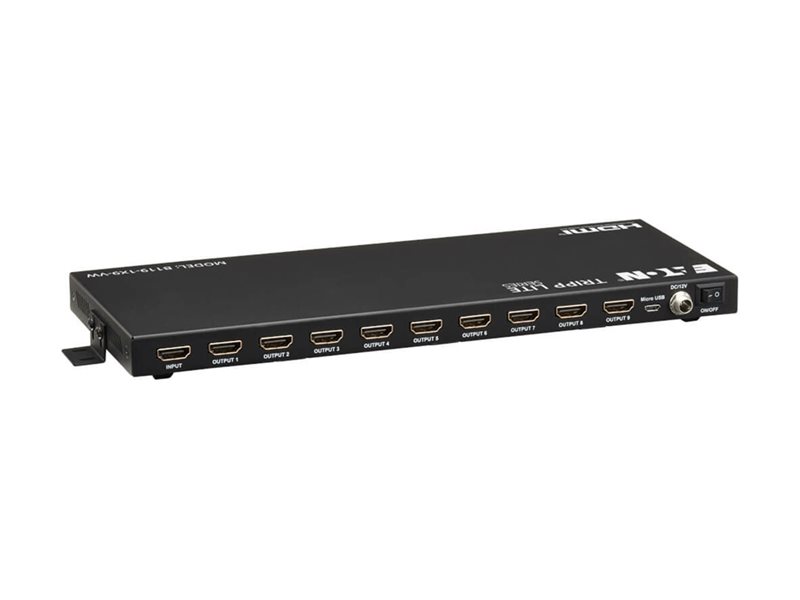

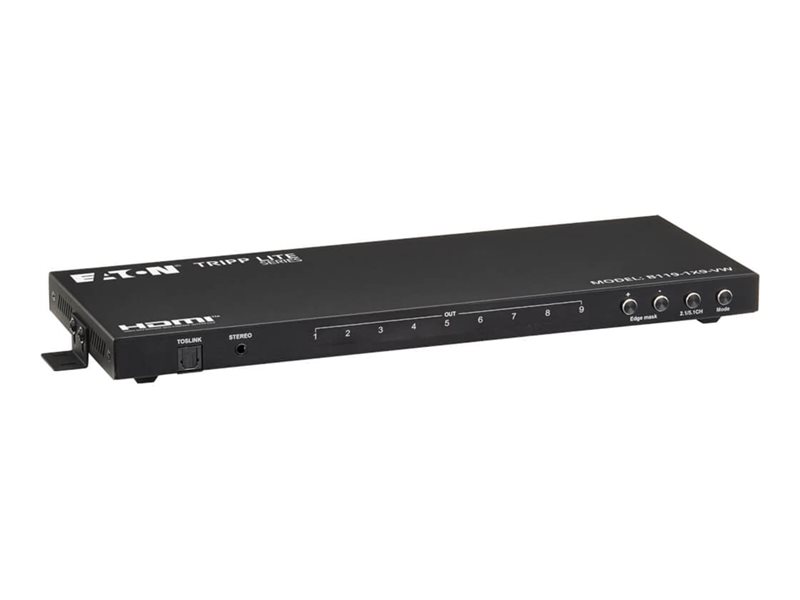

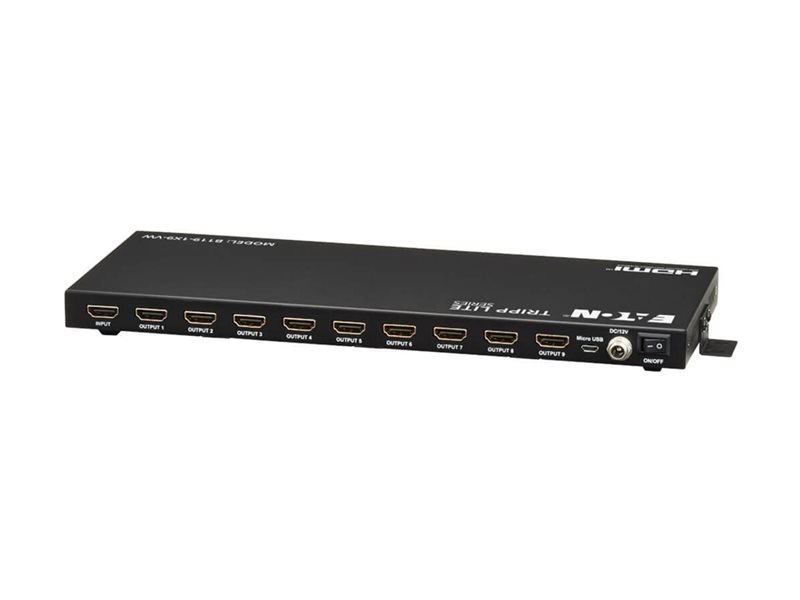

Video wall controller - HDMI - 9 x HDMI - black
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - video wall controller - black |
| Device Type | Video wall controller |
| Bus Type | HDMI |
| Max Resolution | 1920 x 1080 |
| Max Monitors Supported | 9 |
| Interfaces Details | Audio line-out - front ¦ SPDIF Toslink - front ¦ HDMI input - rear ¦ 9 x HDMI output - rear ¦ Micro-USB - rear |
| Dimensions (WxDxH) | 11.5 in x 4.4 in x 0.7 in |
| Enclosure Color | Black |
| Localization | Australia, Europe, North America, United Kingdom |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video wall controller |
| Bus Type | HDMI |
| Max Resolution | 1920 x 1080 at 60 Hz |
| Max Monitors Supported | 9 |
| Interfaces Details | Audio line-out - front ¦ SPDIF Toslink - front ¦ HDMI input - rear ¦ 9 x HDMI output - rear ¦ Micro-USB - rear |
| Interfaces | - female |
| Features | Remote control, linear pulse-code modulation (LPCM) support, 4:4:4 chroma sampling, 4:2:2 support, OnScreenDisplay (OSD), LED indicators |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4 x rubber feet, 2 mounting ears |
| Cables Included | 1 x USB-A to Micro-USB Type B cable - 5 ft |
| Compliant Standards | Plug and Play, EDID compatible, HDCP 1.3, HDCP 1.4, IEC 61000-4-2, CEC, FCC, cUL, UKCA, WEEE |
| Width | 11.5 in |
| Depth | 4.4 in |
| Height | 0.7 in |
| Weight | 21.87 oz |
| Shipping Width | 13.1 in |
| Shipping Depth | 9.4 in |
| Shipping Height | 1.6 in |
| Shipping Weight | 34.21 oz |
| Enclosure Color | Black |
| Localization | Australia, Europe, North America, United Kingdom |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| System Requirements | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
