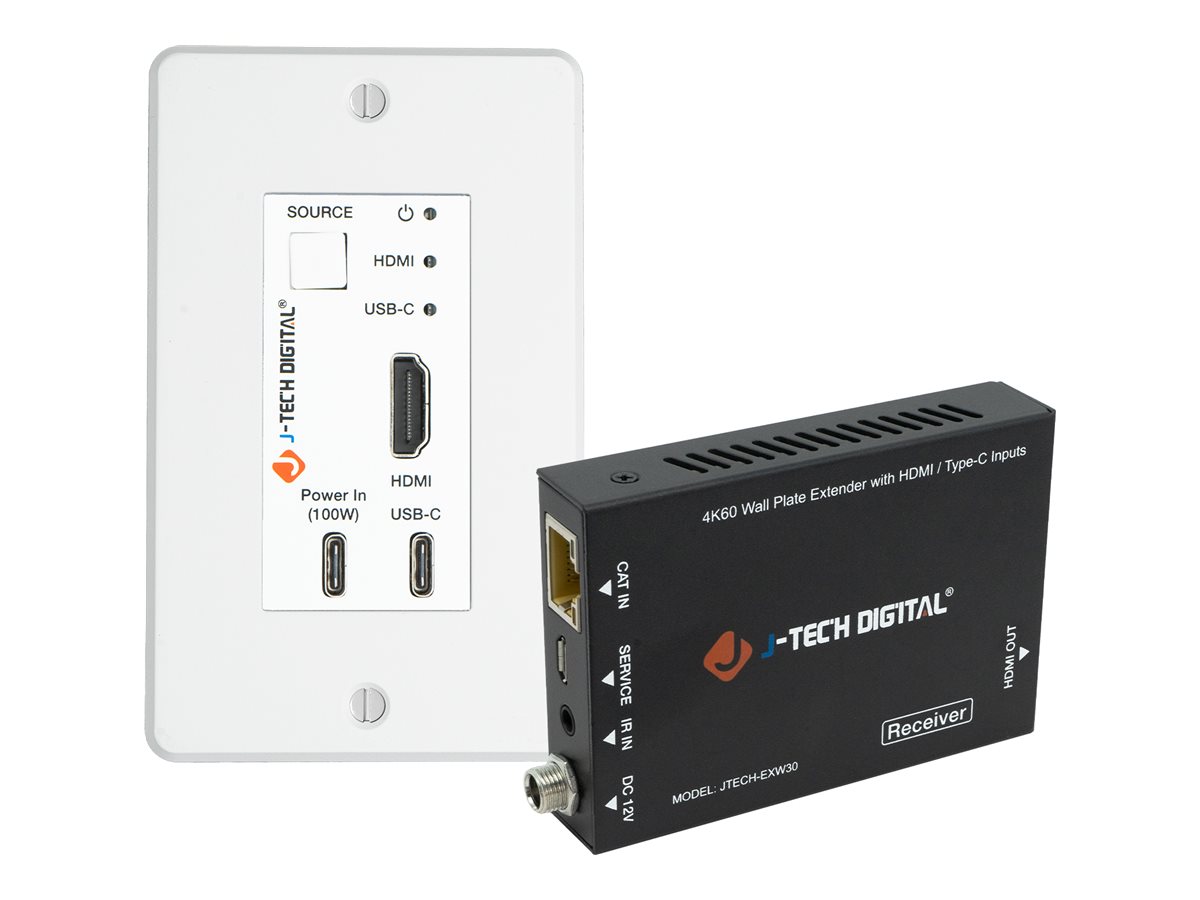

Video/audio/USB extender - HDMI, USB-C - over CAT 5e/6/7 - up to 164 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-EXW30 - video/audio/USB extender - HDMI, USB-C |
| Device Type | Video/audio/USB extender |
| Form Factor | Wall mountable |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI, USB-C |
| Transmission Medium | CAT 5e/6/7 |
| Max Transfer Distance | 164 ft |
| Power Over Ethernet (PoE) | PoC |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio/USB extender |
| Form Factor | Wall mountable |
| Color | White, black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x control (transmitter) - micro-USB ¦ 1 x network (transmitter) - RJ-45 ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x network (receiver) - RJ-45 ¦ 1 x IR input (receiver) - mini jack ¦ 1 x service (receiver) - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets, faceplate, power adapter |
| Compliant Standards | HDCP 2.2 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, USB-C |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 164 ft |
| Status Indicators | Power, HDMI, USB |
| Features | Dolby Digital EX support, Dolby Digital Plus support, Dolby TrueHD support, DTS 96/24 support, DTS EX support, DTS support, DTS-HD Master Audio support, DTS-HD support, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), Dolby Vision support, HDR10 support, 1-gang, USB-C host charging port |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 1.3 in x 2.6 in x 2.7 in / 6.9 oz ¦ Receiver: 3.5 in x 2.4 in x 0.7 in / 5.5 oz ¦ Wall plate: 2.8 in x 0.1 in x 4.5 in |
