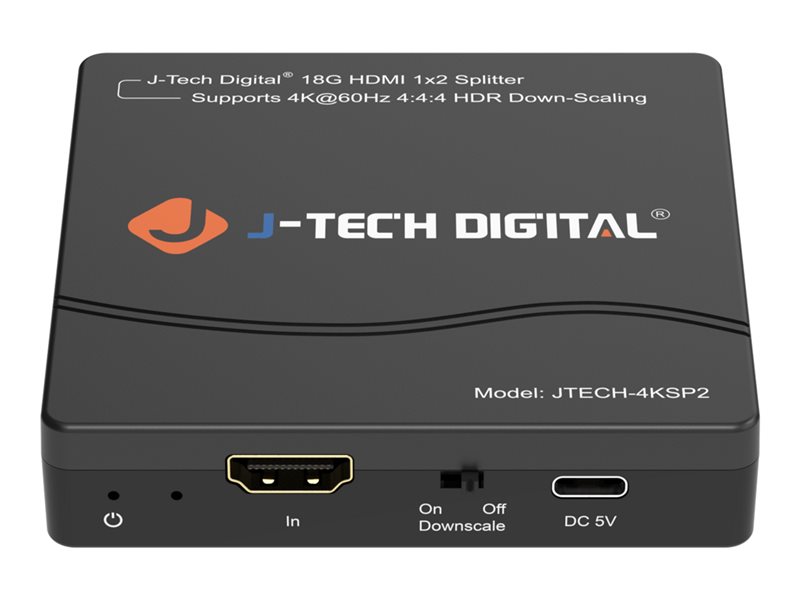

Video/audio splitter - 2 x HDMI - desktop
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-4KSP2 - video/audio splitter - 2 ports |
| Device Type | Video/audio splitter - 2 ports |
| Subtype | HDMI |
| Ports | 2 x HDMI |
| Features | 18 Gbps bandwidth, PCM, Dolby Digital support, Dolby TrueHD support, Dolby Atmos support, DTS support, DTS-HD support, DTS:X support, Dolby Digital Plus support, HDR10 support, 4:4:4 chroma subsampling support, EDID Management, down-scaling |
| Compliant Standards | HDCP 2.3 |
| Power | 5 V (50 - 60 Hz) 1 A |
| Dimensions (WxDxH) | 3.3 in x 3.3 in x 0.7 in |
| Weight | 2.47 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio splitter - 2 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 2 x HDMI |
| Max Resolution | 4K @ 60 Hz |
| Features | 18 Gbps bandwidth, PCM, Dolby Digital support, Dolby TrueHD support, Dolby Atmos support, DTS support, DTS-HD support, DTS:X support, Dolby Digital Plus support, HDR10 support, 4:4:4 chroma subsampling support, EDID Management, down-scaling |
| Compliant Standards | HDCP 2.3 |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input ¦ 2 x HDMI output ¦ 1 x micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Power Provided | AC 100-240 V |
| Voltage Required | 5 V (50 - 60 Hz) |
| Electric Current Required | 1 A |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 3.3 in |
| Height | 0.7 in |
| Weight | 2.47 oz |
