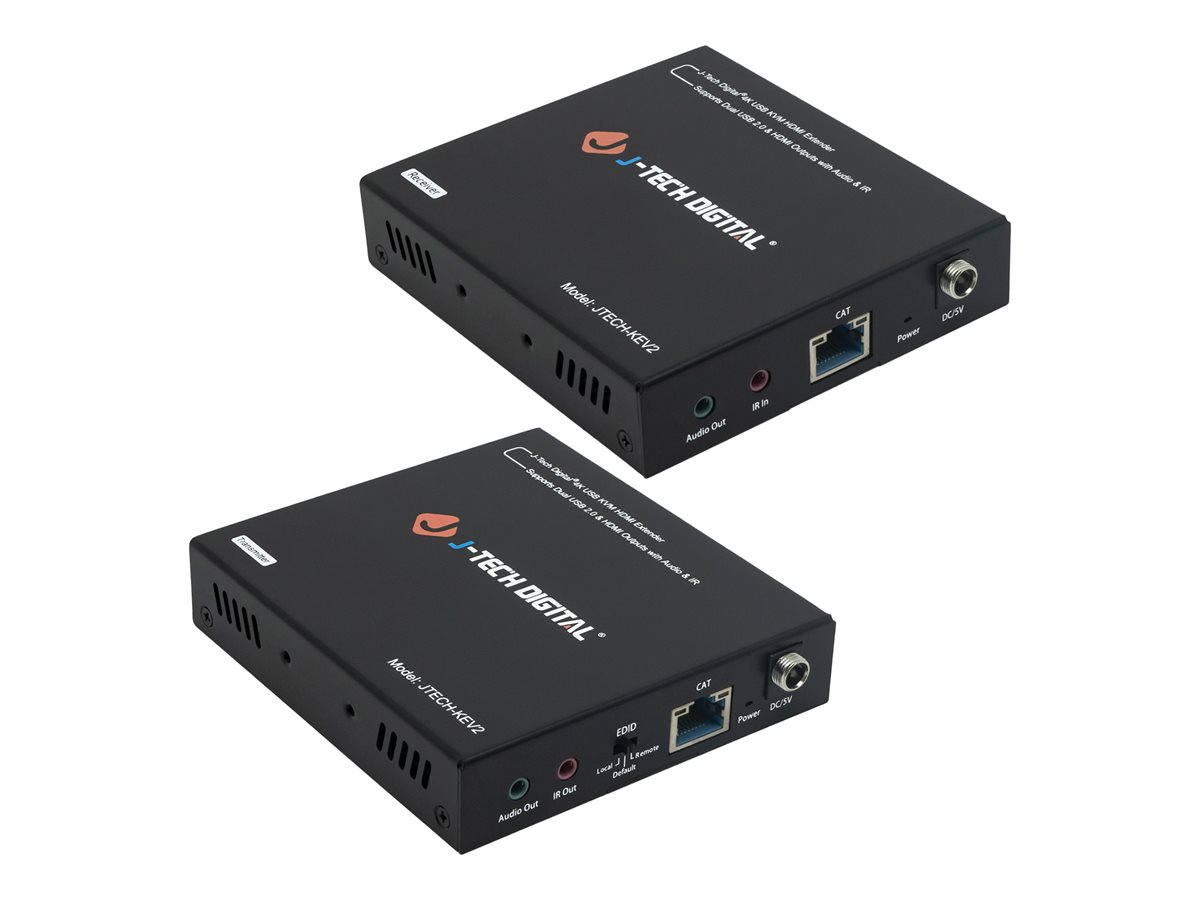

KVM / video / audio extender - HDMI - over CAT 6 - USB - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTD-677 - KVM / video / audio extender - HDMI |
| Device Type | KVM / video / audio extender - USB |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 5.1 in x 3.9 in x 0.9 in |
| General | |
| Device Type | KVM / video / audio extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter/loopthrough) - 19 pin HDMI Type A ¦ 1 x USB (transmitter) - USB type B ¦ 1 x network (transmitter) - RJ-45 ¦ 1 x audio line-out (transmitter) - mini jack ¦ 1 x IR output (transmitter) - mini jack ¦ 2 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 2 x USB 2.0 (receiver) - USB type A ¦ 2 x audio line-out (receiver) - mini jack ¦ 1 x IR input (receiver) - mini jack ¦ 1 x network (receiver) - RJ-45 |
| Miscellaneous | |
| Included Accessories | 2 power adapters, mounting kit |
| Cables Included | 1 x IR receiver cable ¦ 1 x IR blaster cable ¦ 1 x USB type A to USB type B cable |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4K @ 30 Hz |
| Max Transfer Distance | 328 ft |
| Features | Aluminum alloy enclosure, Pulse-Code Modulation (PCM) support, LPCM support, Dolby support, DTS support |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 5.1 in |
| Depth | 3.9 in |
| Height | 0.9 in |
| Dimensions (WxDxH) / Weight Details | Transmitter: 9.2 oz ¦ Receiver: 8.8 oz |
