Security appliance - High Availability - with 1 year Standard Support - 1GbE
| Main Specifications | |
|---|---|

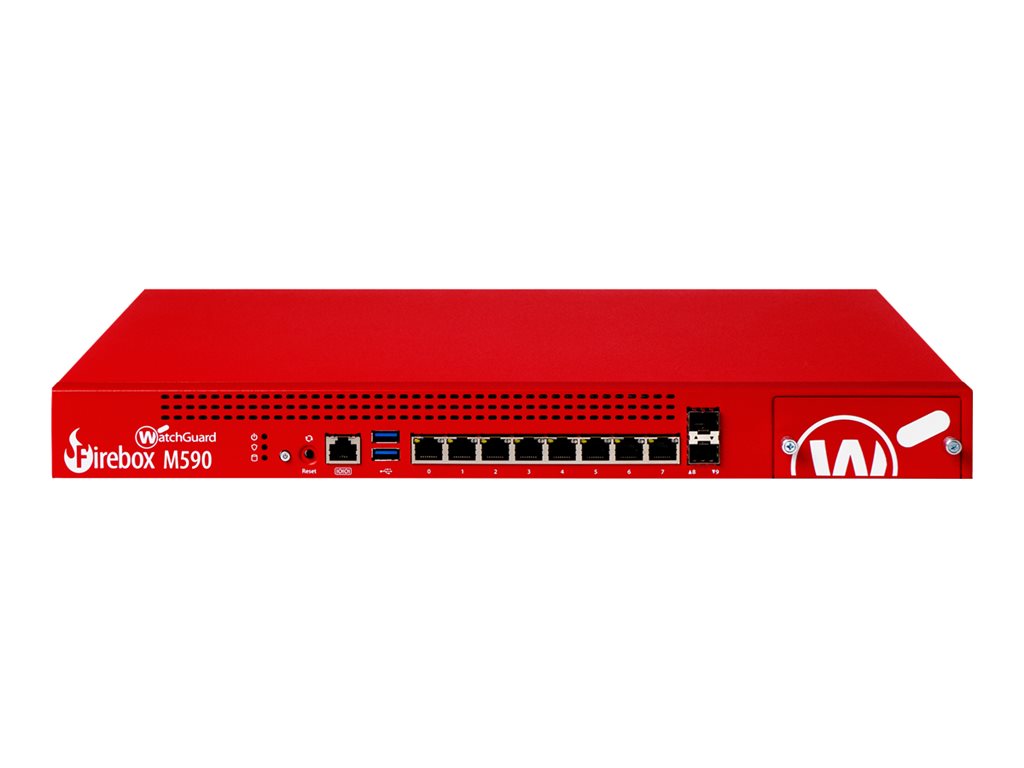

| Product Description | WatchGuard Firebox M590 - security appliance - High Availability - with 1 year Standard Support |
| Device Type | Security appliance |
| Bundled Services | 1 year Standard Support |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Unified Threat Management (UTM) throughput: 3.3 Gbps ¦ VPN throughput (IMIX): 2.2 Gbps ¦ HTTPS content inspection (IPS enabled): 1.9 Gbps ¦ Antivirus throughput: 5.0 Gbps ¦ IPS throughput (full scan): 4.6 Gbps ¦ Firewall throughput (1518-byte UDP): 20 Gbps ¦ VPN throughput (1518-byte UDP): 6.84 Gbps |
| Capacity | Concurrent connections: 6000000 ¦ Virtual interfaces (VLANs): 750 ¦ New connections per second: 132000 ¦ WSM licenses: 4 ¦ Branch office VPN tunnels: 500 ¦ Mobile VPN tunnels: 500 ¦ EDR core licenses: 250 |
| Power | AC 90-264 V (47 - 63 Hz) |
| Dimensions (WxDxH) | 17.2 in x 12.1 in x 1.7 in |
| Weight | 9.92 lbs |
| General | |
| Device Type | Security appliance |
| Bundled Services | 1 year Standard Support |
| Width | 17.2 in |
| Depth | 12.1 in |
| Height | 1.7 in |
| Weight | 9.92 lbs |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - SFP+ ¦ 2 x USB ¦ 1 x serial |
| Miscellaneous | |
| MTBF | 443,771 hour(s) |
| Compliant Standards | FIPS 140-3, NRTL, CB, WEEE, RoHS, REACH |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, SMTP, FTP, DNS, POP3, DHCP, PPPoE, DDNS, IPSec, L2TP |
| Routing Protocol | Static IP routing, OSPF, RIP, BGP |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3 |
| Performance | Unified Threat Management (UTM) throughput: 3.3 Gbps ¦ VPN throughput (IMIX): 2.2 Gbps ¦ HTTPS content inspection (IPS enabled): 1.9 Gbps ¦ Antivirus throughput: 5.0 Gbps ¦ IPS throughput (full scan): 4.6 Gbps ¦ Firewall throughput (1518-byte UDP): 20 Gbps ¦ VPN throughput (1518-byte UDP): 6.84 Gbps |
| Capacity | Concurrent connections: 6000000 ¦ Virtual interfaces (VLANs): 750 ¦ New connections per second: 132000 ¦ WSM licenses: 4 ¦ Branch office VPN tunnels: 500 ¦ Mobile VPN tunnels: 500 ¦ EDR core licenses: 250 |
| Features | DoS attack prevention, Stateful Packet Inspection (SPI), TLS decryption, firewall protection, IPv6 support, Routing Information Protocol (RIP), Open Shortest Path First (OSPF), DHCP client, DHCP relay, DHCP server, Link Aggregation Control Protocol (LACP) |
| Encryption Algorithm | TLS, IKE |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
| Power | |
| Voltage Required | AC 90-264 V (47 - 63 Hz) |
| Power Consumption Operational | 75 Watt |
| Software / System Requirements | |
| Software Included | WatchGuard Cloud, WatchGuard Dimension |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.1 in |
| Shipping Depth | 25.5 in |
| Shipping Height | 7.9 in |
| Shipping Weight | 14.33 lbs |
