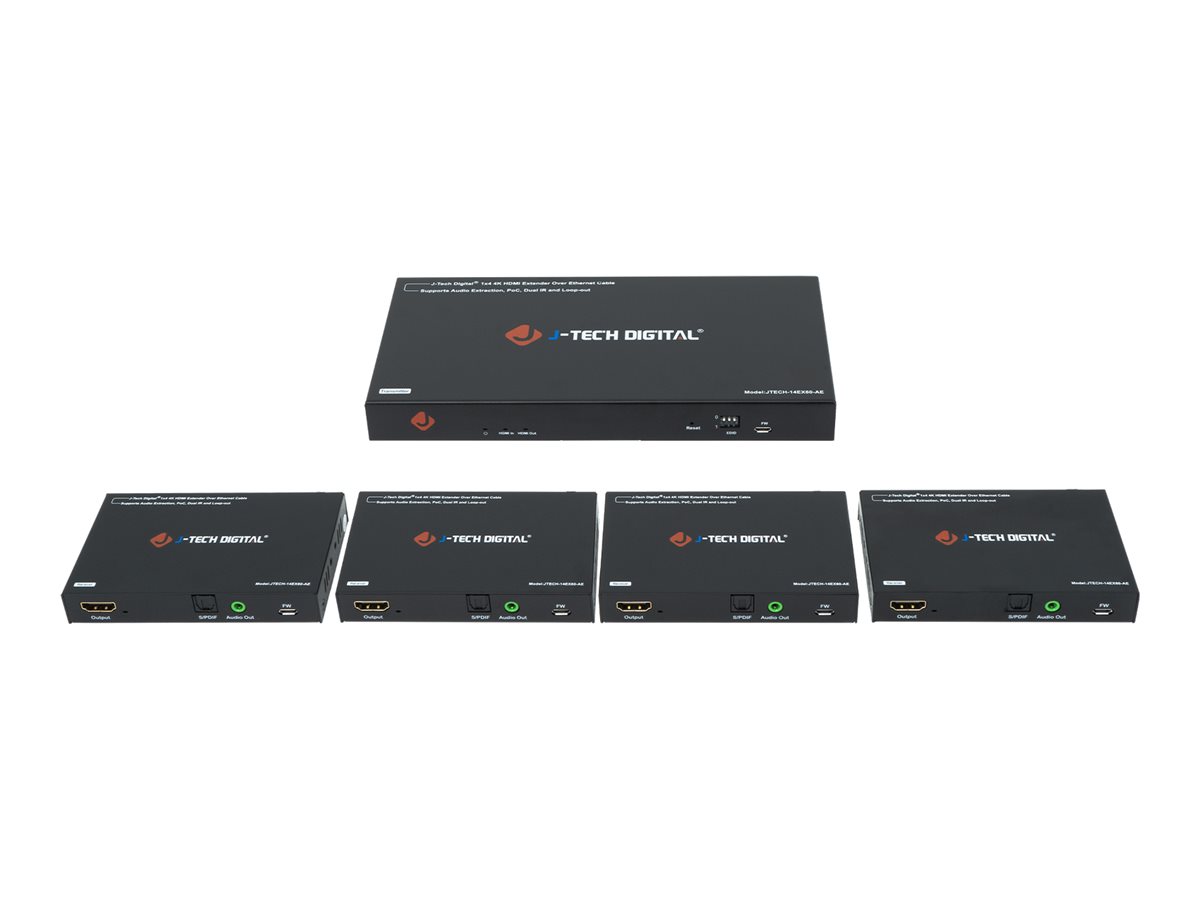

Video/audio extender - HDMI - over CAT 5e/6 - 4 ports - up to 197 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-14EX60-AE - video/audio extender - HDMI |
| Device Type | Video/audio extender |
| Ports Qty | 4 |
| Form Factor | Desktop |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 5e/6 |
| Max Transfer Distance | 197 ft |
| Power Over Ethernet (PoE) | PoC |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Desktop |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (loop output) - 19 pin HDMI Type A female ¦ 4 x network (output) - RJ-45 female ¦ IR input ¦ IR output ¦ SPDIF - TOSLINK |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC |
| Networking | |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 197 ft |
| Status Indicators | Power, input, output, reset |
| Features | HDMI loop out, down-scaling, built-in DIP switch, LPCM 2.0 support, LPCM 5.1 support, DTS Digital Surround 5.1 support, Dolby Digital Plus support, Dolby TrueHD support |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Power Consumption Operational | 12.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 9 in x 4.5 in x 0.9 in / 2.9 lbs ¦ Receiver: 4.3 in x 2.7 in x 0.7 in |
