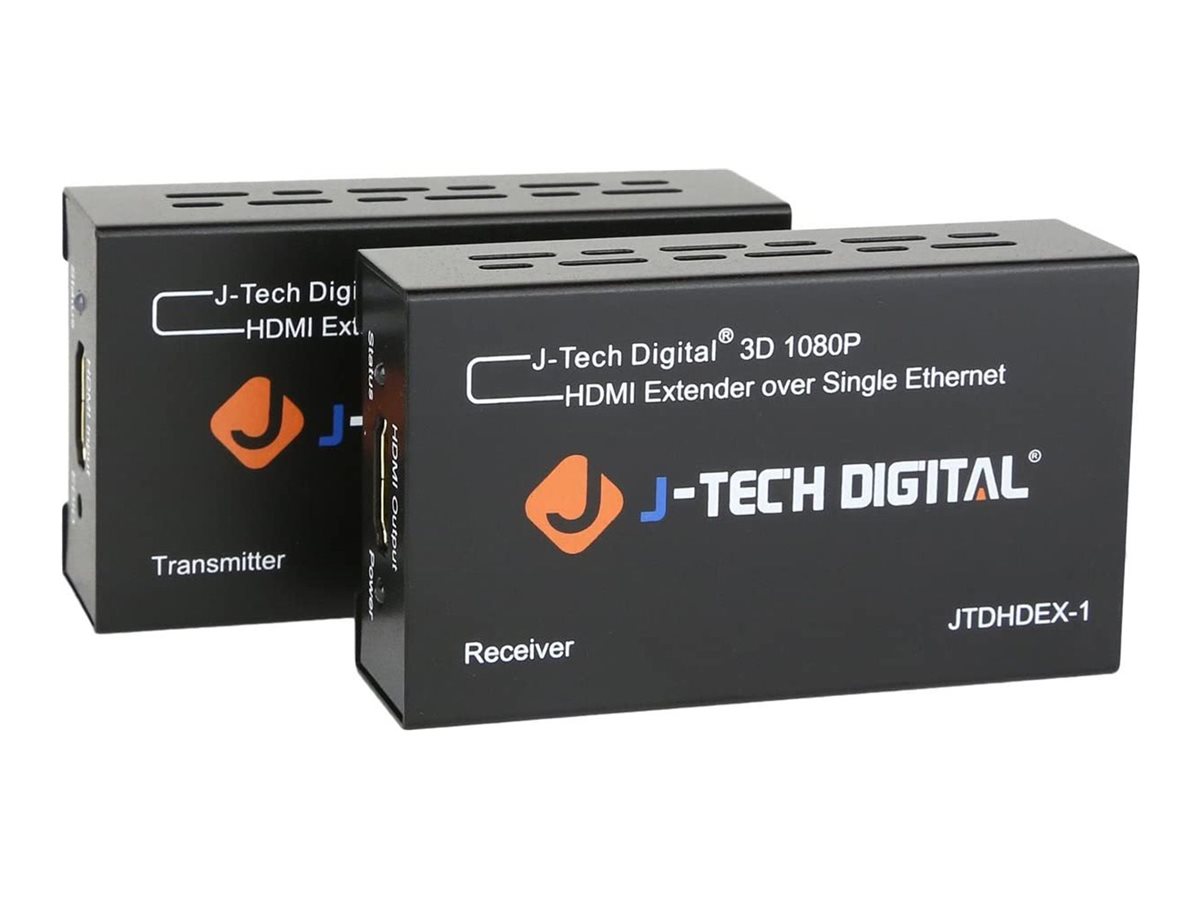

Video/audio extender - HDMI - over CAT 5e/6/7 - up to 200 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTDHDEX-1 - video/audio extender - HDMI |
| Device Type | Video/audio extender |
| Form Factor | External |
| Data Transfer Rate | 6.75 Gbps |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 5e/6/7 |
| Max Transfer Distance | 200 ft |
| Dimensions (WxDxH) | 3.3 in x 1.9 in x 1 in |
| Weight | 4.41 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x network (transmitter) - RJ-45 ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x network (receiver) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 2 power adapters |
| Compliant Standards | HDCP 1.4 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 6.75 Gbps |
| Max Resolution | 1080p @ 60 Hz |
| Max Transfer Distance | 200 ft |
| Status Indicators | Status, EDID, power |
| Features | Deep Color support, Dolby TrueHD support, DTS-HD Master Audio support, EDID capture |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 1.9 in |
| Height | 1 in |
| Weight | 4.41 oz |
