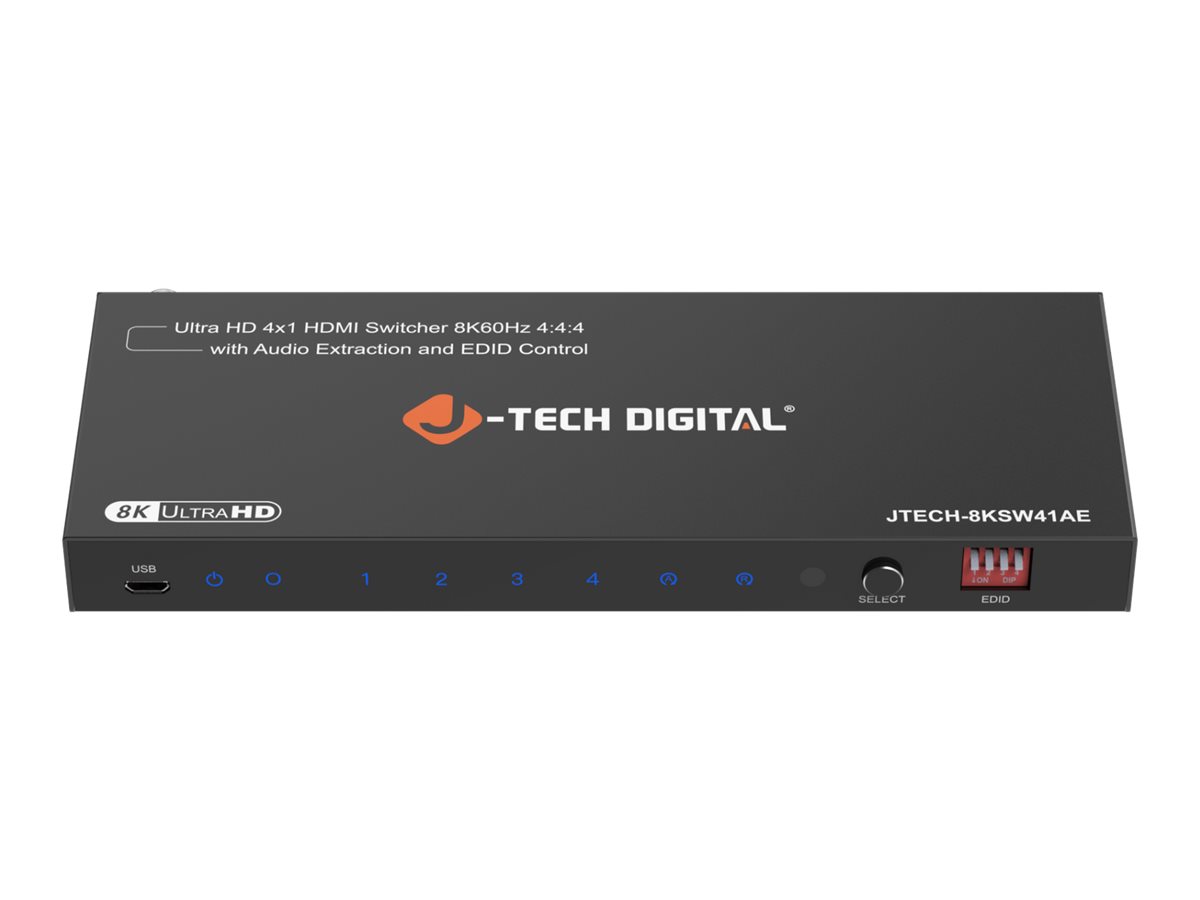

Video/audio switch - 8k60hz, 4-in-1, with audio exxtraction - 4 x HDMI - desktop
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-8KSW41AE - video/audio switch - 8k60hz, 4-in-1, with audio exxtraction - 4 ports |
| Device Type | Video/audio switch - 4 ports |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Performance | Bandwidth per channel: 12 Gbps |
| Features | 1080p resolution support, 4:4:4 chroma subsampling support, 4K120Hz support, audio extraction support, Dolby Digital support, Dolby TrueHD support, Dolby Vision support, DTS-HD Master Audio support, EDID Management, HDR10 support, HDR10+ support, LPCM support, switch button, auto-switching |
| Compliant Standards | HDCP 2.3 |
| Power | (50/60 Hz) |
| Dimensions (WxDxH) | 7.4 in x 2.8 in x 0.7 in |
| Weight | 10.02 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Performance | Bandwidth per channel: 12 Gbps |
| Max Resolution | 8K @ 60 Hz |
| Max Video Bandwidth | 1200 MHz |
| Features | 1080p resolution support, 4:4:4 chroma subsampling support, 4K120Hz support, audio extraction support, Dolby Digital support, Dolby TrueHD support, Dolby Vision support, DTS-HD Master Audio support, EDID Management, HDR10 support, HDR10+ support, LPCM support, switch button, auto-switching |
| Compliant Standards | HDCP 2.3 |
| Status Indicators | Port status |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 1 x HDMI output ¦ 1 x SPDIF output ¦ 1 x audio output ¦ 1 x USB (service) USB Type-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Included Accessories | Wireless remote control |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 7.4 in |
| Depth | 2.8 in |
| Height | 0.7 in |
| Weight | 10.02 oz |
