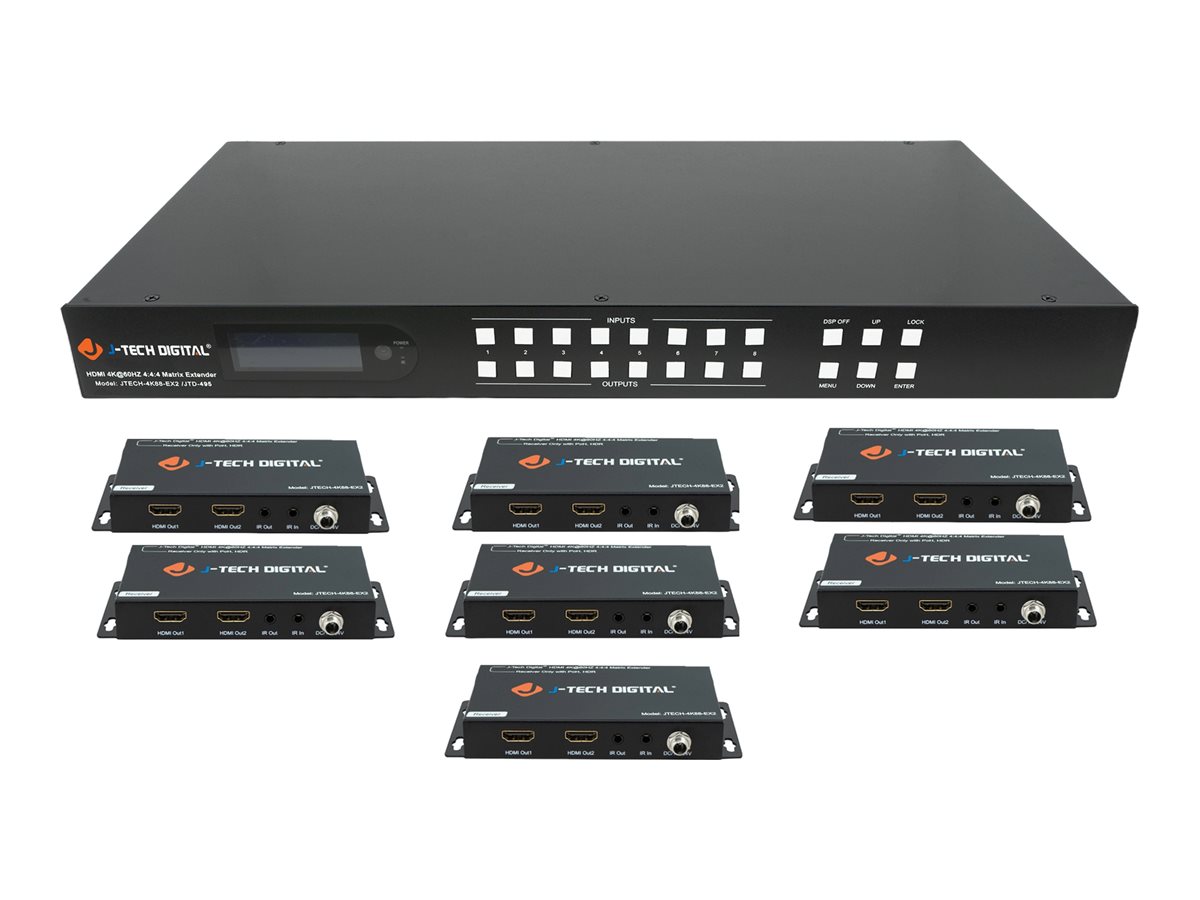

Transmitter + 7 receivers - video/audio extender - HDMI - over CAT 5e/6 - up to 230 ft - 1U
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-4K88-EX2 - transmitter + 7 receivers - video/audio extender - HDMI |
| Device Type | Video/audio extender |
| Form Factor | Desktop / rack mountable - 1U |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 5e/6 |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 110-220 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Desktop / rack mountable - 1U |
| Built-in Devices | Display |
| Expansion / Connectivity | |
| Interfaces | 7 x IR input (transmitter) ¦ 8 x IR output (transmitter) ¦ 1 x RS-232 (transmitter) ¦ 1 x management (transmitter) - RJ-45 ¦ 1 x audio line-out (transmitter) ¦ 1 x SPDIF (transmitter) ¦ 8 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 7 x HDBaseT (transmitter) - RJ-45 ¦ 7 x firmware upgrade (receiver) - micro-USB ¦ 7 x network (receiver) - RJ-45 ¦ 7 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 7 x HDMI input (receiver) - 19 pin HDMI Type A ¦ 7 x RS-232 (receiver) ¦ 7 x IR input (receiver) - 3.5 mm ¦ 7 x IR output (receiver) - 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | IR remote, 6 screws, 2 mounting brackets, 8 x 3-pin Phoenix connectors |
| Cables Included | 1 x power cable ¦ 16 x IR emitter cable ¦ 16 x IR receiver cable |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Features | HDR10 support, 4:4:4 chroma subsampling support, DTS Digital Surround 5.1 support, LPCM support, Dolby Vision support, front panel select buttons, HDR support, web-based management, bi-directional IR |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 110-220 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 17.3 in x 13.8 in x 1.7 in / 8.8 lbs ¦ Receiver: 5.5 in x 4.9 in x 0.8 in |
