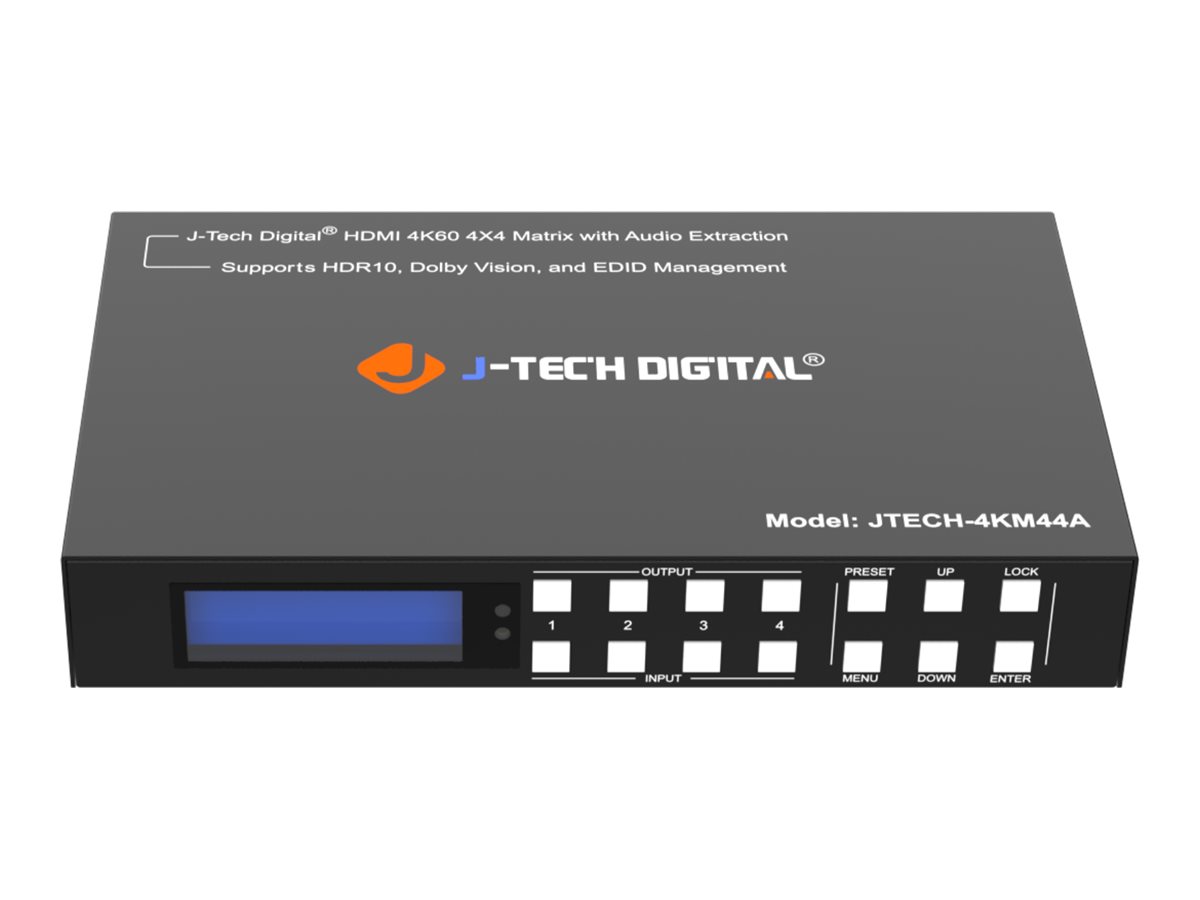

Video/audio switch - 4K 60Hz, HDMI, matrix, with audio de-embedding - 4 x 4 - desktop
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-4KM44A - video/audio switch - 4K 60Hz, HDMI, matrix, with audio de-embedding - 4 x 4 |
| Device Type | Video/audio switch - 4 x 4 |
| Subtype | HDMI |
| Performance | Video bandwidth: 18 Gbps ¦ Pixel clock: 600 MHz |
| Features | Audio de-embedding, HDR support, 4K60Hz support, Dolby Vision support, Copy EDID mode, HDR10 support, HLG support, DTS:X support, LPCM 7.1 support, 192 kHz audio sampling, 24-bit sample size audio, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 4:4:4 chroma subsampling support, Dolby TrueHD support, DTS-HD Master Audio support, LPCM 2.0 support, PCM 2.0 support, 10-bit Deep Color support, 12-bit Deep Color support, 8-bit Deep Color support, Adobe RGB support, metal housing, status display |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 8.6 in x 5.5 in x 1.3 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio switch - 4 x 4 |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Video bandwidth: 18 Gbps ¦ Pixel clock: 600 MHz |
| Max Resolution | 4K @ 60 Hz |
| Features | Audio de-embedding, HDR support, 4K60Hz support, Dolby Vision support, Copy EDID mode, HDR10 support, HLG support, DTS:X support, LPCM 7.1 support, 192 kHz audio sampling, 24-bit sample size audio, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 4:4:4 chroma subsampling support, Dolby TrueHD support, DTS-HD Master Audio support, LPCM 2.0 support, PCM 2.0 support, 10-bit Deep Color support, 12-bit Deep Color support, 8-bit Deep Color support, Adobe RGB support, metal housing, status display |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 4 x HDMI output ¦ 4 x SPDIF output ¦ 4 x audio output 3 pin Phoenix ¦ 1 x RS232 3 pin Phoenix ¦ 1 x IrDA input mini-jack ¦ 1 x management (LAN) RJ-45 ¦ 1 x micro-USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Remote control, 5 x 3-pin Phoenix connectors |
| Cables Included | 1 x IR cable |
| Compliant Standards | EDID compatible, PSE Mark, RoHS, UL |
| Power | |
| Power Device | External power adapter |
| Power Provided | 24 Watt - DC 12 V - 2 A |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 14 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.6 in |
| Depth | 5.5 in |
| Height | 1.3 in |
