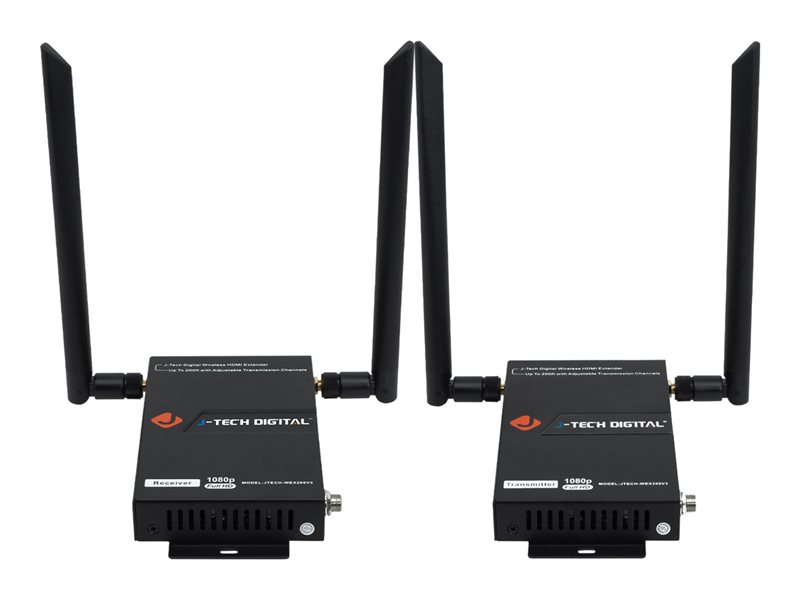

Transmitter and receiver - video/audio extender - HDMI, 802.11b/g/n, Wi-Fi 5, 2T2R - up to 200 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-WEX200 - transmitter and receiver - video/audio extender - HDMI, 802.11b/g/n, Wi-Fi 5, 2T2R |
| Device Type | Video/audio extender |
| Form Factor | External |
| Data Transfer Rate | 6.75 Gbps |
| Frequency Band | 5 GHz |
| Data Link Protocol | HDMI, 802.11b/g/n, Wi-Fi 5, 2T2R |
| Max Transfer Distance | 200 ft |
| Power | AC 100-240 V |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x IR output (transmitter) - mini jack |
| Networking | |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | HDMI, 802.11b/g/n, Wi-Fi 5, 2T2R |
| Data Transfer Rate | 6.75 Gbps |
| Frequency Band | 5 GHz |
| Max Resolution | 1080p @ 60 Hz |
| Max Transfer Distance | 200 ft |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
