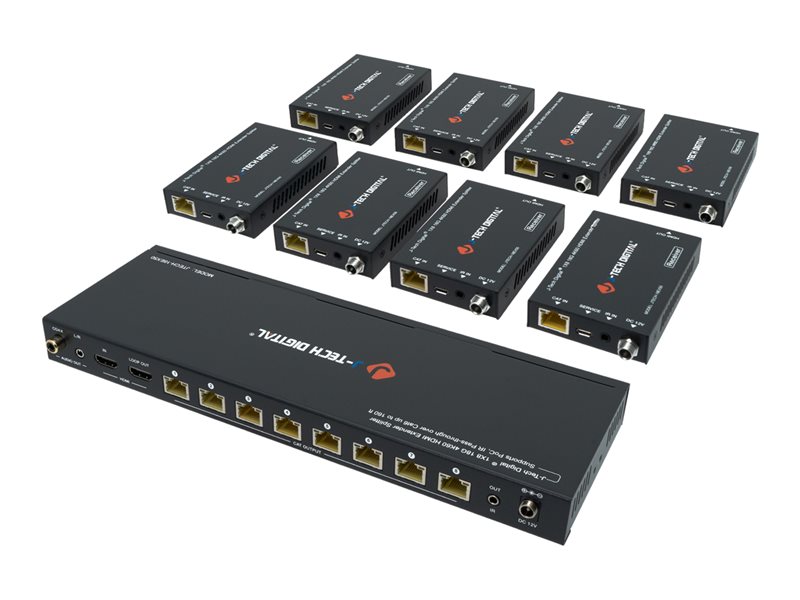

Video/audio extender - HDMI - over CAT 6 - 8 ports - up to 197 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-18EX50 - video/audio extender - HDMI |
| Device Type | Video/audio extender |
| Ports Qty | 8 |
| Form Factor | Desktop |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 197 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| System Requirements | Apple MacOS, Microsoft Windows, Linux |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Desktop |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 8 x network (output) - RJ-45 female ¦ 1 x coaxial (output) - RCA ¦ 1 x audio (output) - 3.5 mm ¦ 1 x micro-USB (service) ¦ 1 x IR output - 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC |
| Networking | |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 197 ft |
| Status Indicators | Power, input, loop, output |
| Features | HDMI loop out, IR pass-through, EDID Management, 3D support, HDR support, HDR10 support, HDR10+ support, Hybrid Log-Gamma (HLG) support, Dolby Vision support, 4:4:4 chroma subsampling support, 7.1 channel audio support, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0, LPCM support, Dolby Digital support, Dolby Digital Plus support, Dolby Digital EX support, Dolby TrueHD support, DTS support, DTS EX support, DTS-HD Master Audio support, LPCM 2.0 support, LPCM 5.1 support, metal housing |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 25.44 Watt |
| Software / System Requirements | |
| OS Required | Apple MacOS, Microsoft Windows, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 11.8 in x 3.9 in x 1.1 in / 29 oz ¦ Receiver: 3.5 in x 2.4 in x 0.7 in / 5.5 oz |
