Video/audio/infrared/serial extender - HDMI, HDBaseT - over CAT 5e/6 - up to 230 ft
| Main Specifications | |
|---|---|

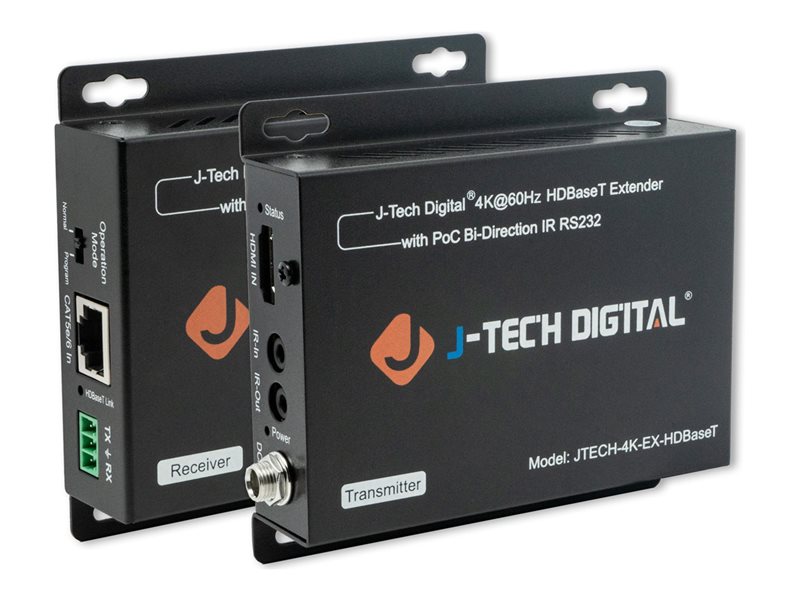

| Product Description | J-Tech Digital JTECH-4K-EX-HDBASET - video/audio/infrared/serial extender - HDMI, HDBaseT |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | Desktop |
| Data Link Protocol | HDMI, HDBaseT |
| Transmission Medium | CAT 5e/6 |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Dimensions (WxDxH) | 2.8 in x 1 in x 4.1 in |
| Weight | 24.69 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | Desktop |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x IR input (transmitter) - mini jack ¦ 1 x IR output (transmitter) - mini jack ¦ 1 x network (transmitter) - RJ-45 ¦ 1 x RS-232 (transmitter) - 3 pin Phoenix ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x IR input (receiver) - mini jack ¦ 1 x IR output (receiver) - mini jack ¦ 1 x network (receiver) - RJ-45 ¦ 1 x RS-232 (receiver) - 3 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 2 x 3-pin Phoenix connectors |
| Cables Included | 2 x IR receiver cable ¦ 2 x IR transmitter cable |
| Compliant Standards | HDCP 2.2 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power, network |
| Features | 4K resolution support, 1080p/60 resolution support, DTS-HD support, Dolby TrueHD support, ESD Protector |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 1 in |
| Height | 4.1 in |
| Weight | 24.69 oz |
