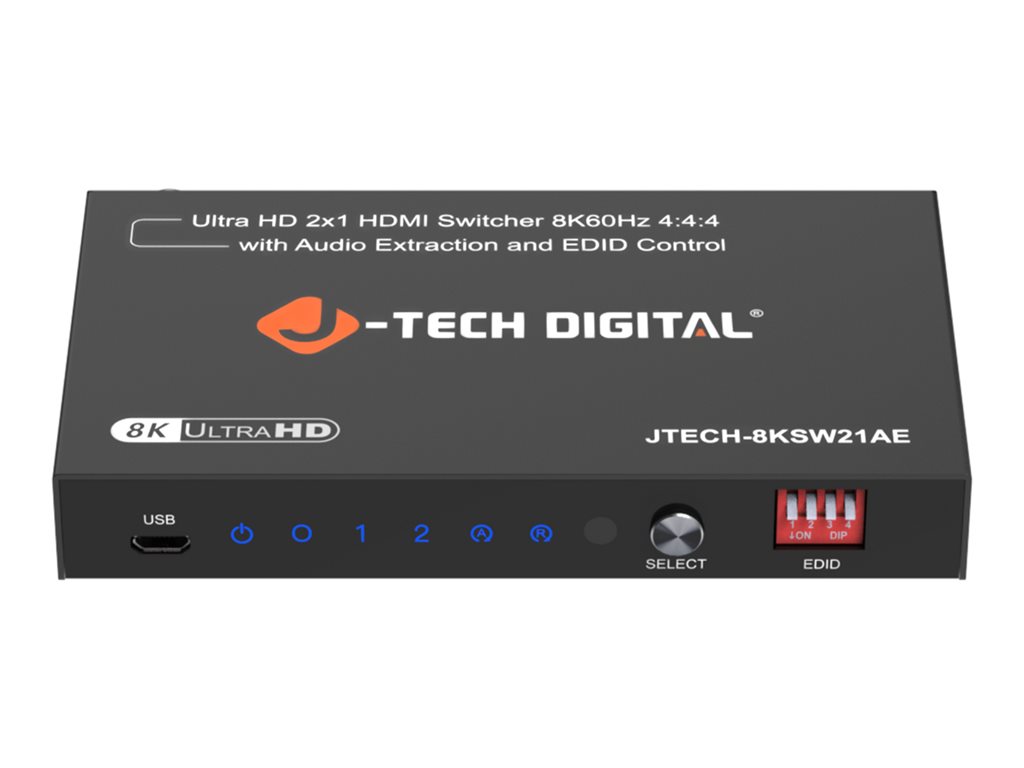

Video/audio switch - 8K 60 Hz HDMI, 2-In-1 Out, with Audio Extraction - desktop
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-8KSW21AE - video/audio switch - 8K 60 Hz HDMI, 2-In-1 Out, with Audio Extraction |
| Device Type | Video/audio switch |
| Subtype | HDMI |
| Performance | Video bandwidth: 48 Gbps |
| Features | EDID Management, HDR10 support, HDR10+ support, Dolby Vision support, audio extractor, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Digital support, LPCM support, CEC support, built-in DIP switch, 4:4:4 chroma subsampling support |
| Compliant Standards | HDCP 2.3 |
| Power | (50/60 Hz) |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Video bandwidth: 48 Gbps |
| Max Resolution | 8K @ 60 Hz |
| Features | EDID Management, HDR10 support, HDR10+ support, Dolby Vision support, audio extractor, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Digital support, LPCM support, CEC support, built-in DIP switch, 4:4:4 chroma subsampling support |
| Compliant Standards | HDCP 2.3 |
| Status Indicators | Power, input |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI input Type A ¦ 1 x HDMI output Type A ¦ 1 x audio output phone stereo 3.5 mm ¦ 1 x SPDIF output TOSLINK ¦ 1 x management (micro-USB) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Remote control |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Power Provided | 5 V - 1 A |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
