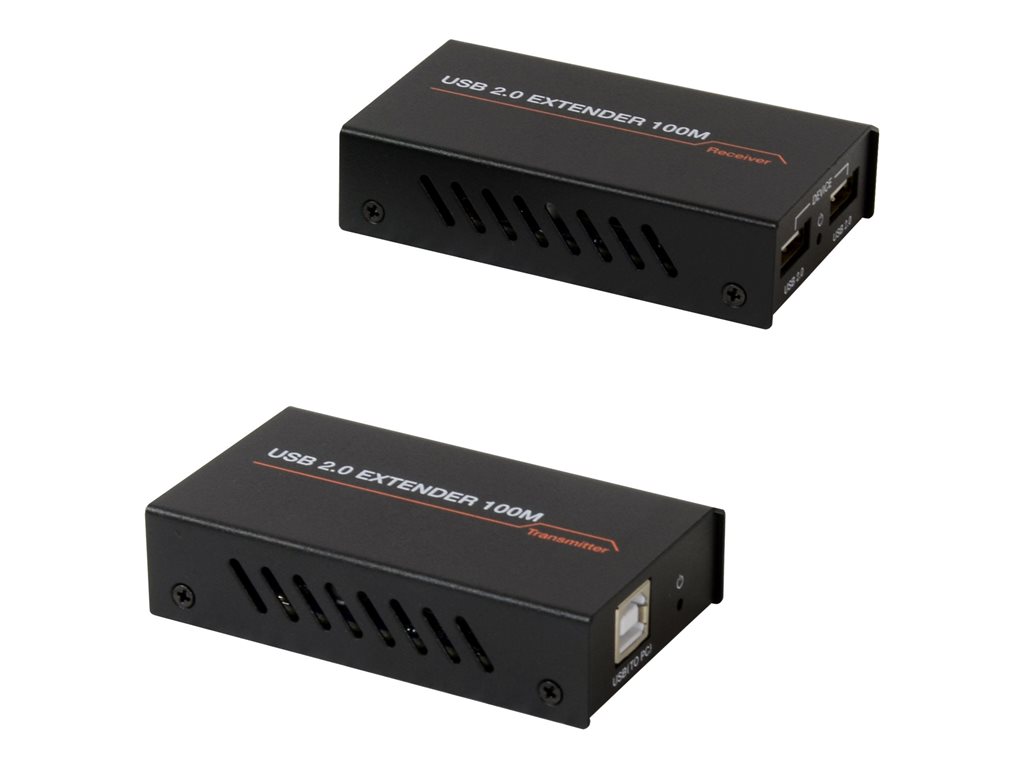

USB extender - USB - over CAT 5e/6 - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital JTECH-BE100 - USB extender - USB |
| Device Type | USB extender |
| Form Factor | External |
| Data Transfer Rate | 480 Mbps |
| Data Link Protocol | USB |
| Transmission Medium | CAT 5e/6 |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 3.2 in x 1.9 in x 0.8 in |
| Weight | 3.53 oz |
| General | |
| Device Type | USB extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 2.0 (transmitter) - USB type B ¦ 1 x network (transmitter output) - RJ-45 ¦ 2 x USB 2.0 (receiver) - USB type A ¦ 1 x network (receiver input) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Cables Included | 1 x USB type A to USB type B cable - 3.3 ft |
| Compliant Standards | Plug and Play |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB |
| Data Transfer Rate | 480 Mbps |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power |
| Features | Metal housing, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge) |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 1.9 in |
| Height | 0.8 in |
| Weight | 3.53 oz |
