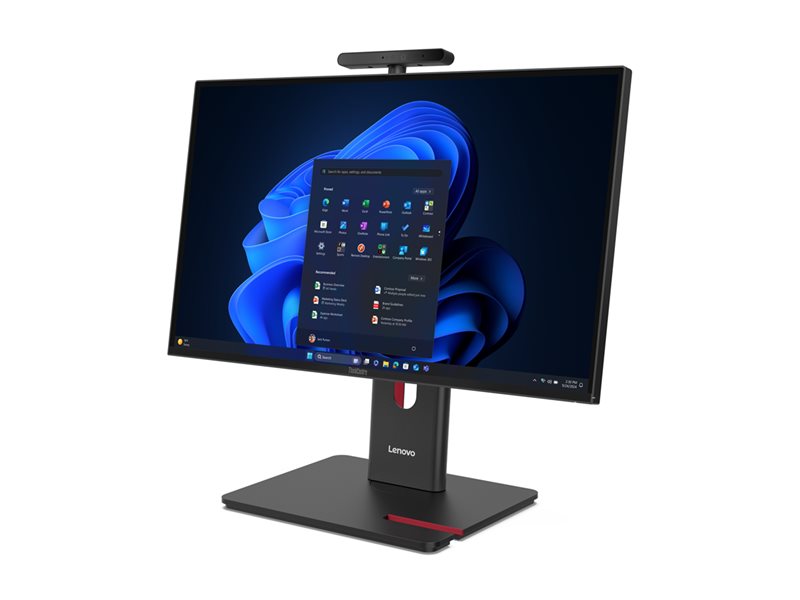

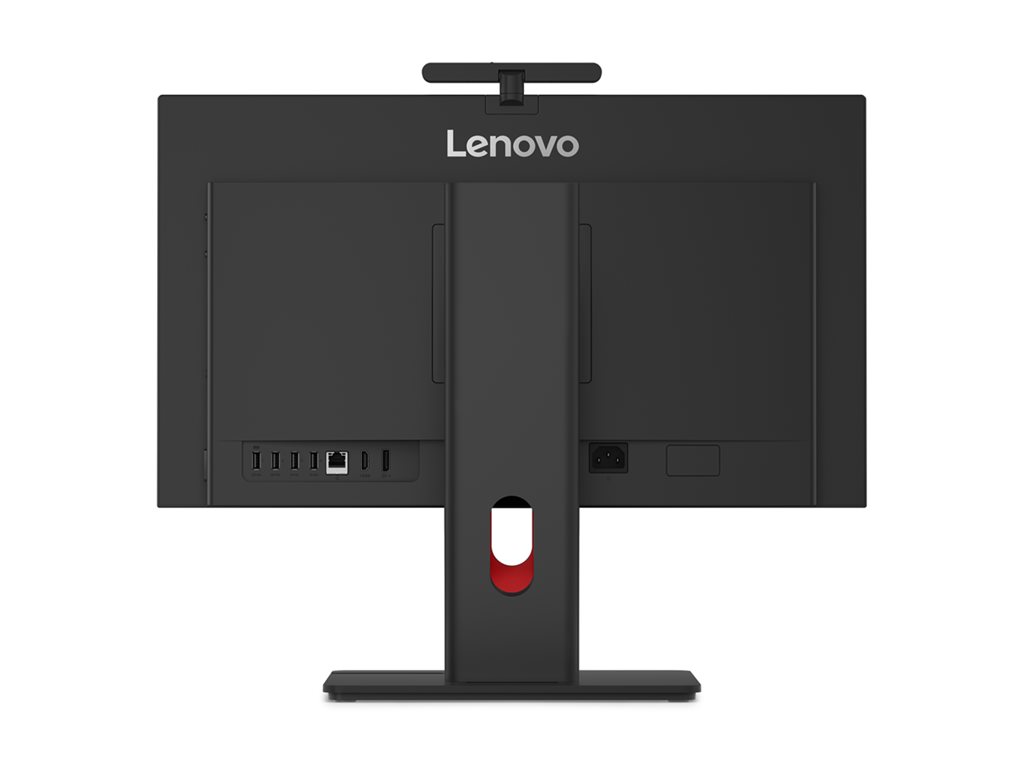

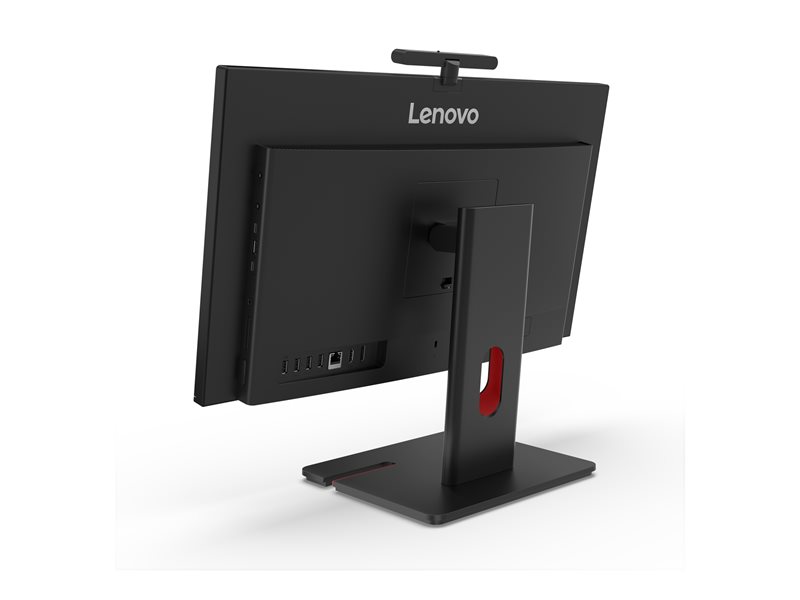

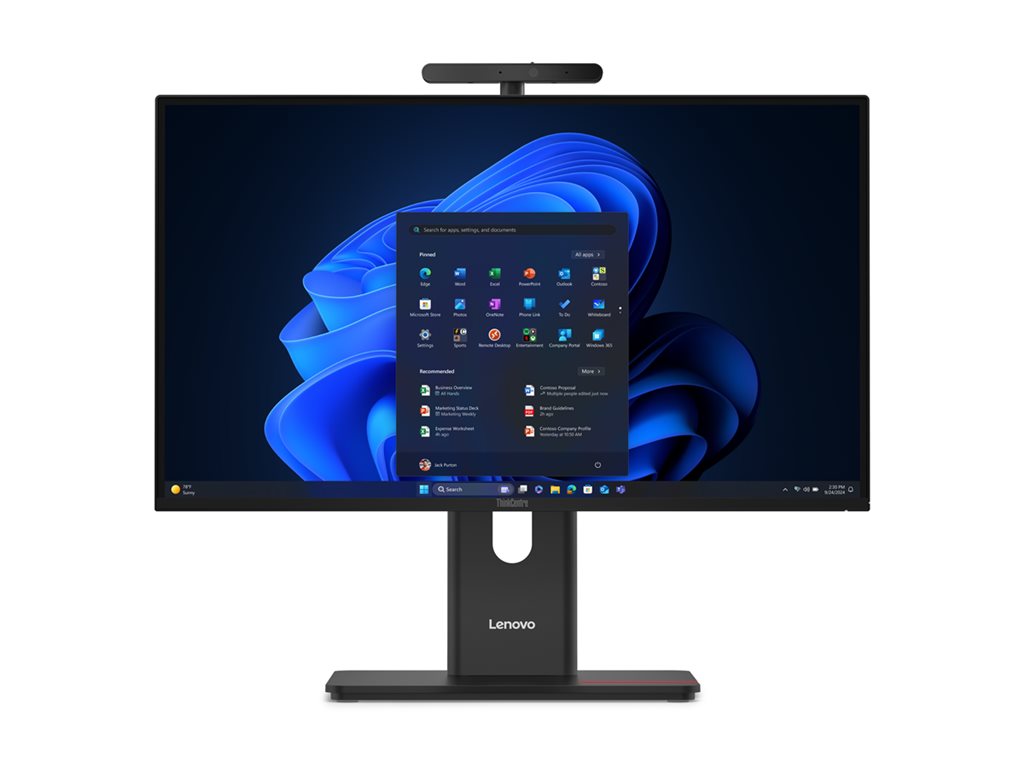

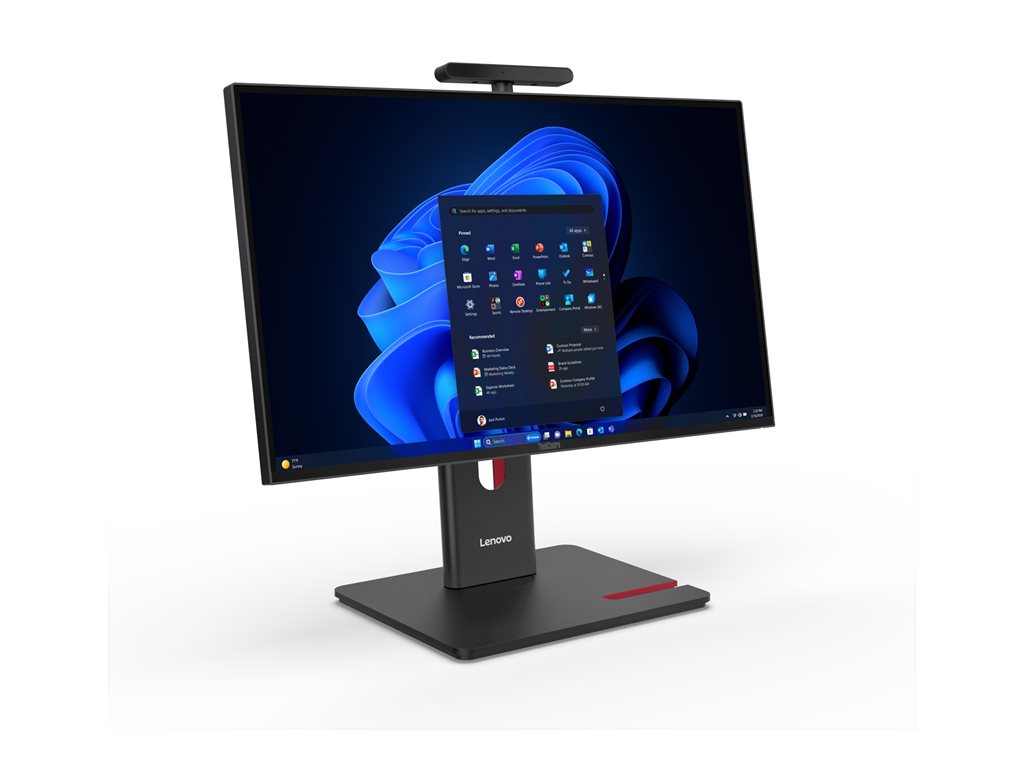

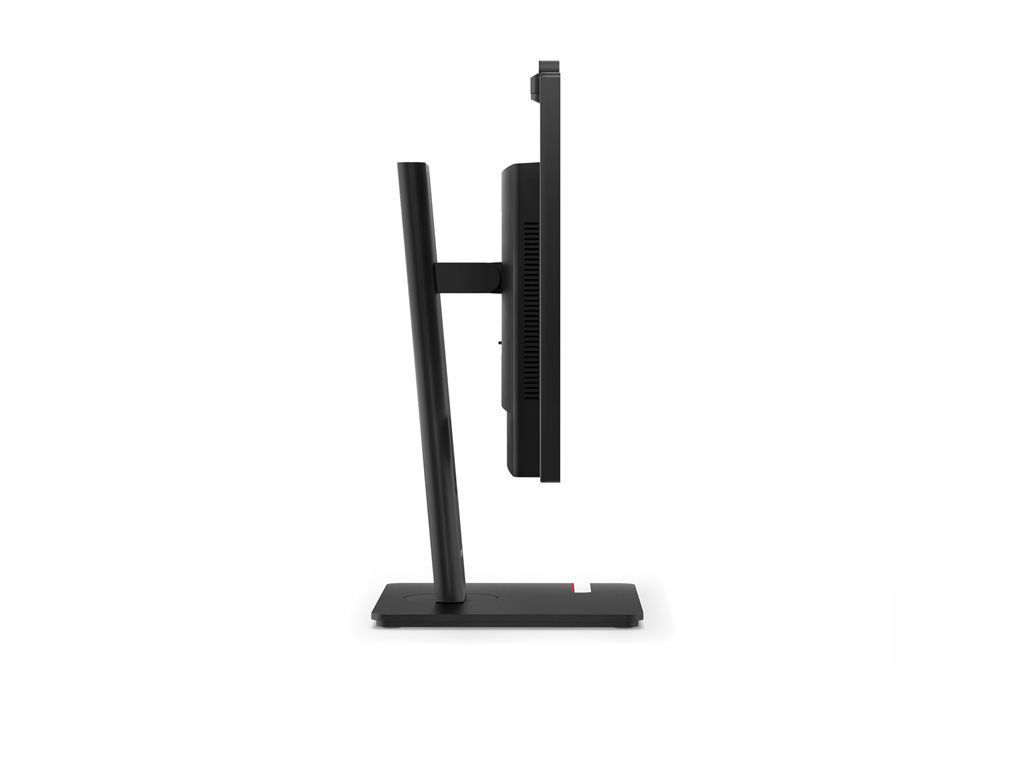

AI PC - all-in-one with UltraFlex V Stand - Core Ultra 9 285 / up to 5.6 GHz - vPro Enterprise - RAM 64 GB - SSD 1 TB - TCG Opal Encryption 2, NVMe - GeForce RTX 4050 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: LED 23.8" 1920 x 1080 (Full HD) @ 120 Hz - keyboard: US English - black - Lenovo TopSeller
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkCentre M90a Gen 6 - all-in-one - AI PC - Core Ultra 9 285 - vPro Enterprise - 64 GB - SSD 1 TB - LED 23.8" - US English |
| Type | Personal computer - all-in-one - AI PC |
| Platform Technology | Intel vPro Enterprise |
| Localization | Language: English / region: United States |
| Processor | Intel Core Ultra 9 (Series 2) 285 (up to 5.6 GHz, (24-core) |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 36 MB |
| Cache Per Processor | 36 MB |
| RAM | 64 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 1 TB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption 2, NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Monitor | 23.8" - LED - 1920 x 1080 (Full HD) @ 120 Hz - 16:9 |
| Graphics Controller | NVIDIA GeForce RTX 4050 / Intel Graphics - up to 8 TOPS |
| Video Memory | 6 GB GDDR6 SDRAM |
| Camera | Yes |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
| Keyboard | US English |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Color | Black |
| Dimensions (WxDxH) | 21.2 in x 10.4 in x 18 in |
| Weight | 17.72 lbs |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
| Manufacturer Warranty | Limited warranty - 3 years - on-site |
| General | |
| Platform Technology | Intel vPro Enterprise |
| Type | Personal computer |
| AI Level | AI PC |
| Product Form Factor | All-in-one - with UltraFlex V Stand |
| Built-in Devices | Stereo speakers |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 3 (total) / 2 (free) x M.2 Card - 2280 (for SSD) |
| Interfaces | 3 x USB 3.2 Gen 2 (1 side, 2 rear) ¦ 1 x USB 3.2 Gen 1 (1 rear) ¦ 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) ¦ 1 x HDMI input/output combo (1 rear) (TMDS compatible) ¦ 1 x DisplayPort 1.4a (1 rear) ¦ 1 x LAN (1 rear) ¦ 1 x Thunderbolt 4/USB4/DisplayPort 2.1 (1 side) (Always On, 65W Power Delivery 3.0) ¦ 1 x USB-C 3.2 Gen 2 (1 side) (data transfer, 5V 3A charging) ¦ 1 x headphones/microphone (1 side) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | VESA |
| Compliant Standards | IEC 60601-1-2, RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TCG Certified, TUV Rheinland Low Blue Light (Hardware Solution), IP54 front, UL Anti-dust, Eyesafe Certified 2.0, MIL-STD 810H, SGS Performance Tested certification: Super Quiet@Hi-Performance Grade 1 |
| Manufacturer Selling Program | Lenovo TopSeller |
| RAM | |
| Installed Size | 64 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 0 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 230 watt |
| Efficiency | 92% |
| Cache Memory | |
| Installed Size | 36 MB |
| Cache Per Processor | 36 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED - IPS |
| Diagonal Size | 23.8" |
| Native Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 120 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Color Gamut | 99% sRGB |
| Image Brightness | 250 cd/m² |
| Monitor Features | Anti-glare, Flicker Free technology, Low Blue Light technology, Eyesafe technology |
| Graphics Controller | |
| Graphics Processor | NVIDIA GeForce RTX 4050 / Intel Graphics - up to 8 TOPS |
| Video Memory | 6 GB GDDR6 SDRAM |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Speakers Included | 2 x right / left channel |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Camera | |
| Camera | Yes |
| Resolution (MP) | 5 Megapixel |
| Features | Hybrid IR camera, ThinkShutter camera cover |
| Audio Input | |
| Type | Dual array microphone |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Dimensions & Weight Details | 21.2 in - 10.4 in - 18 in - with stand (highest position in vertical mode) ¦ 21.2 in - 13.1 in - 8.8 in - with stand (lowest position in flat mode) |
| Width | 21.2 in |
| Depth | 10.4 in |
| Height | 18 in |
| Weight | 17.72 lbs |
| Keyboard | |
| Keyboard Name | Lenovo Calliope Keyboard |
| Interface | USB |
| Localization & Layout | US English |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core Ultra 9 (Series 2) 285 |
| Max Turbo Speed | 5.6 GHz |
| Number of Cores | 24-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q870 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 9.0 |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 36 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
