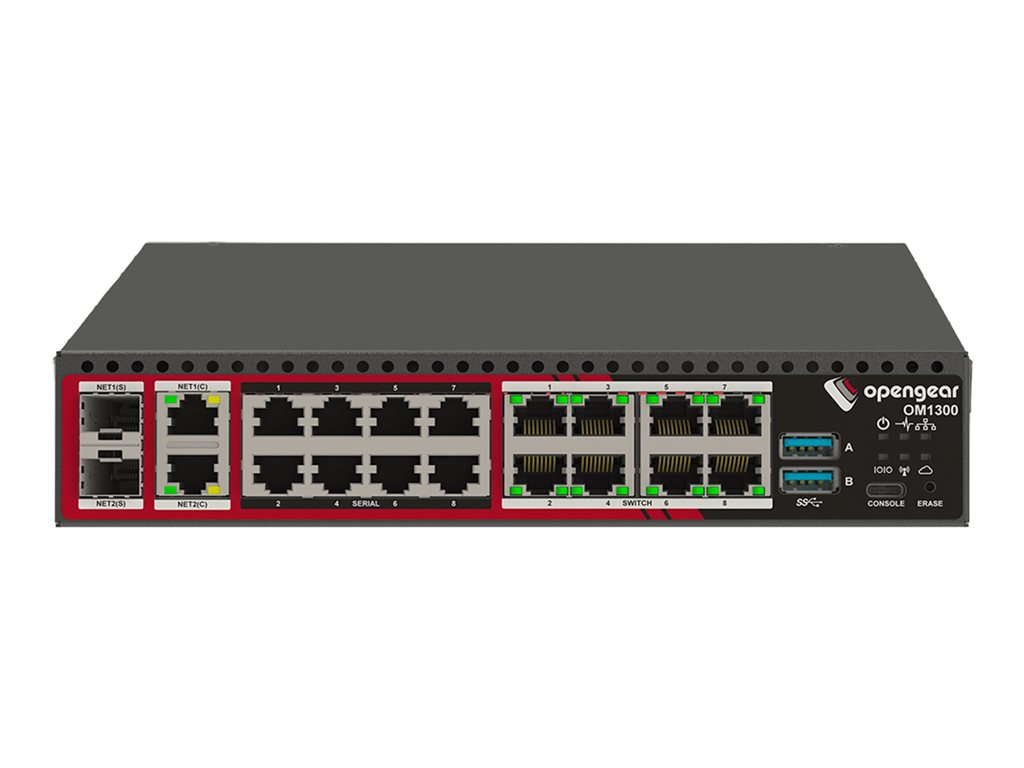

Console server - with smart out-of-band management - 8 ports - RS-232, 1GbE - 5G - 1U - cloud-managed - rack-mountable - for P/N: 319014, 319015, 319016, 450047, 590085
| Main Specifications | |
|---|---|
| Product Description | Opengear OM1308-8E-C - console server - with smart out-of-band management - cloud-managed |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x ARM A53 - 1.6 GHz |
| RAM | 4 GB |
| Flash Memory | 32 GB |
| Ports Qty | 8 |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Mobile Broadband Access | Yes |
| Generation | 5G |
| Cellular Protocol | LTE CAT20, 5G Sub-6 Ghz |
| Included Accessories | Rack mount kit, 4 x cellular antennas, power cord |
| Power | AC 110-240 V |
| Dimensions (WxDxH) | 8.7 in x 7.4 in x 1.7 in |
| Weight | 3.64 lbs |
| Manufacturer Warranty | 5-year warranty |
| Designed For | P/N: 319014, 319015, 319016, 450047, 590085 |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Built-in Devices | Temperature sensor |
| Width | 8.7 in |
| Depth | 7.4 in |
| Height | 1.7 in |
| Weight | 3.64 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 4 (total) / 4 (free) x Nano SIM card |
| Interfaces | 8 x 10/100/1000Base-T - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 8 x RS-232 - RJ-45 ¦ 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC) ¦ 1 x console - USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - hardware replacement - 5 years |
| Miscellaneous | |
| Included Accessories | Rack mount kit, 4 x cellular antennas, power cord |
| Compliant Standards | AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, CISPR 24:2010, C-Tick, EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, RoHS |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | OpenVPN, IPSec |
| Remote Management Protocol | SNMP |
| Cloud-Managed | Yes |
| Features | Trusted Platform Module 2.0 (TPM 2.0), web-based UI, IP-based Firewall Policy, Smart Out-of-Band, firewall protection |
| Authentication Method | TACACS+, RADIUS, Active Directory |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Communications | |
| Mobile Broadband Access | Yes |
| Generation | 5G |
| Cellular Protocol | LTE CAT20, 5G Sub-6 Ghz |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM A53 1.6 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB LPDDR4 SDRAM |
| Flash Memory | 32 GB |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Compatibility Information | |
| Designed For | P/N: 319014, 319015, 319016, 450047, 590085 |
