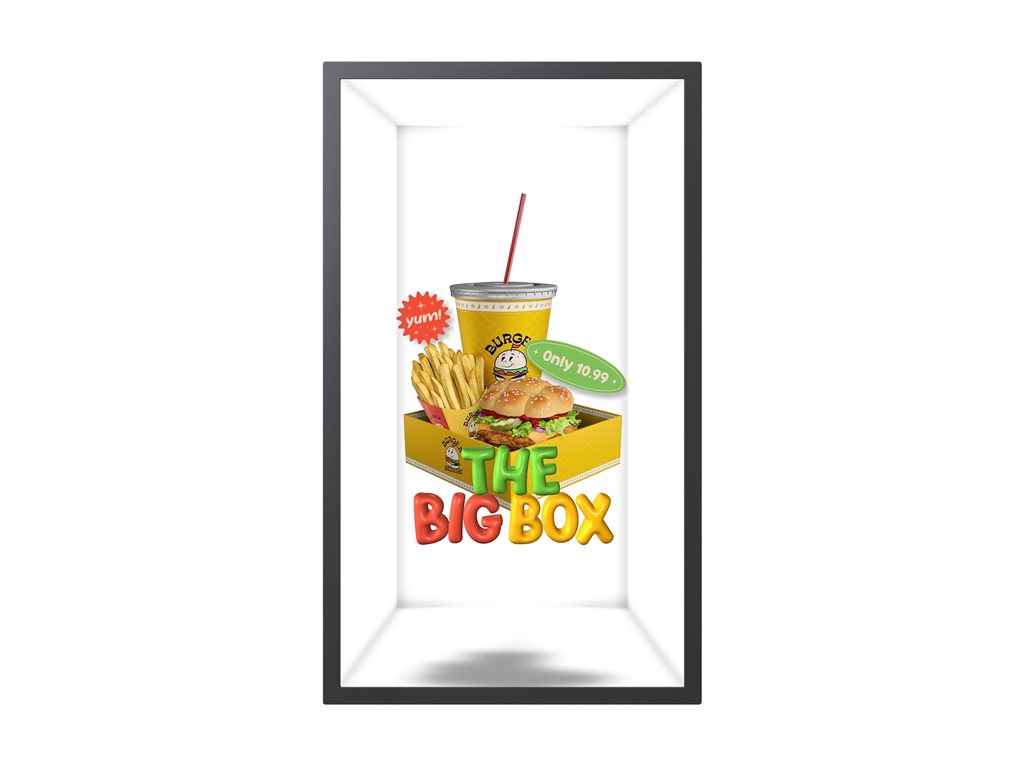

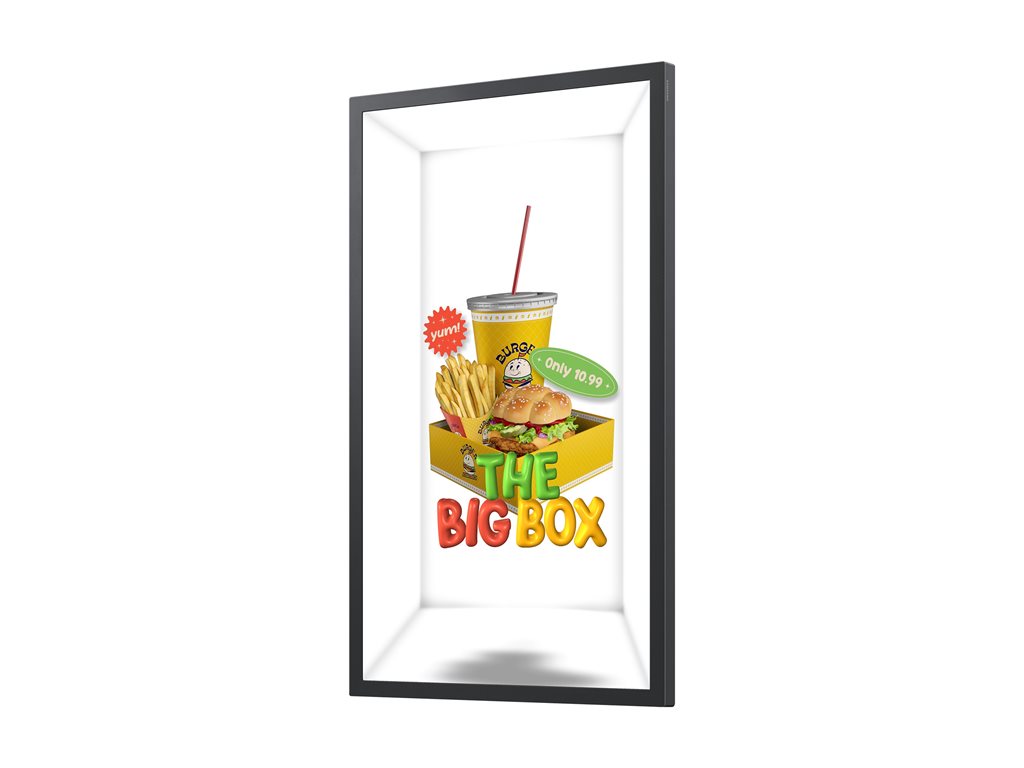

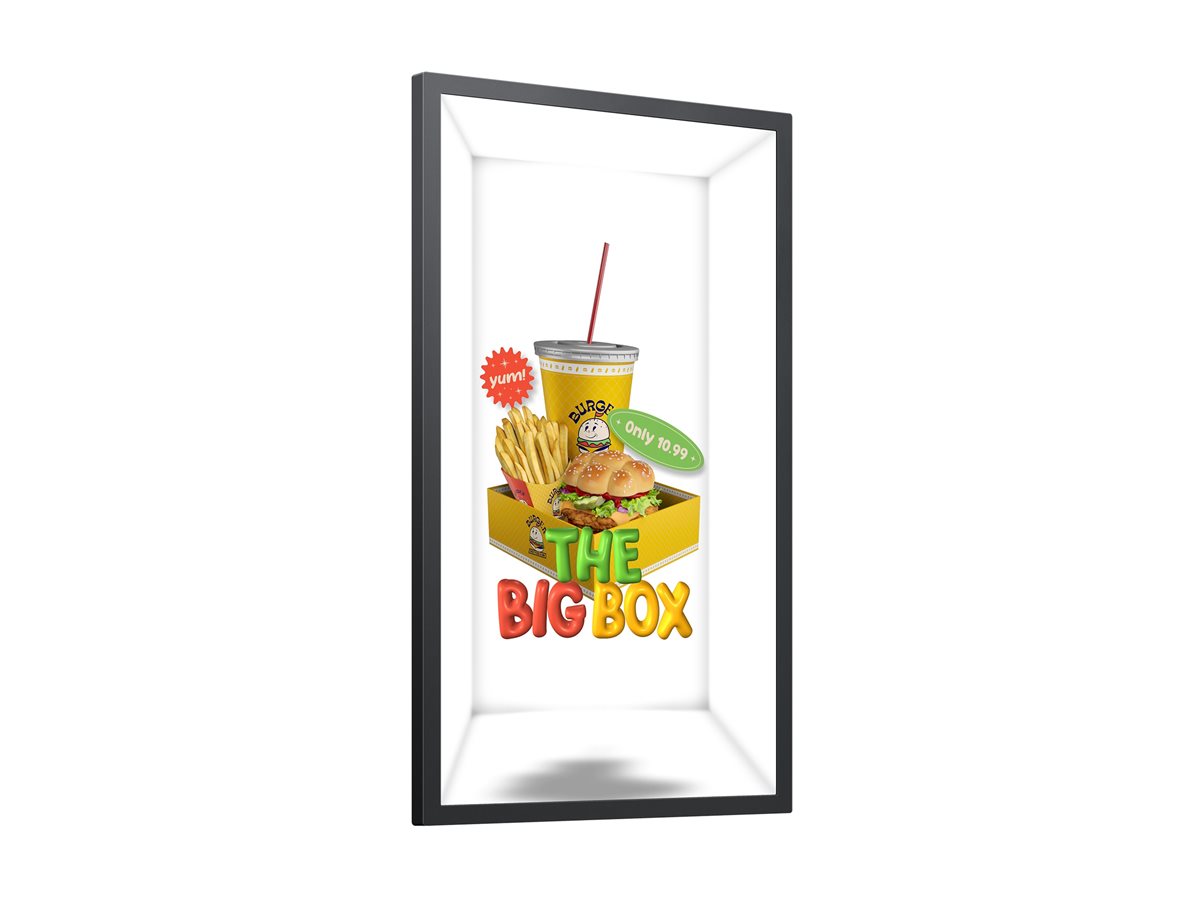

32" Diagonal Class (31.5" viewable) - SMHX-P Series 3D LED-backlit LCD display - spatial signage - Tizen OS - 1080p 1920 x 1080 - black
| Main Specifications | |
|---|---|
| Product Description | Samsung SM32HX-P SMHX-P Series - 32" Class (31.5" viewable) LED-backlit LCD display - Full HD - for spatial signage |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 32" |
| Diagonal Size | 31.5" |
| Commercial Use | Yes - spatial signage |
| Color | Black |
| 3D | Yes |
| 3D Technology | Glasses-free |
| Platform | Tizen OS |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| PC Interface | DisplayPort |
| Technology | VA |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 9:16 |
| TV Tuner | No tuner |
| Commercial Features | SMART Signage Platform, Samsung VXT CMS, AI Studio |
| Picture Enhancements | 72% Color Gamut NTSC, Mega Dynamic Contrast Ratio |
| Speaker System | 2 channel |
| Platform | SmartThings Pro |
| Storage Capacity | 16 GB |
| USB | 2 ports |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 100 watt |
| Dimensions (WxDxH) - without stand | 17.2 in x 1.9 in x 29.2 in |
| Weight | 18.74 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 100 watt |
| Diagonal Class | 32" |
| Diagonal Size | 31.5" |
| Commercial Use | Yes - spatial signage |
| Series | SMHX-P Series |
| 3D | Yes |
| 3D Technology | Glasses-free |
| Platform | Tizen OS |
| Operating System | Tizen OS 7.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort |
| Picture Enhancements | 72% Color Gamut NTSC, Mega Dynamic Contrast Ratio |
| Design | UltraThin |
| Dimensions | Without stand |
| Width | 17.2 in |
| Depth | 1.9 in |
| Height | 29.2 in |
| Weight | 18.74 lbs |
| Enclosure Color | Black |
| Miscellaneous | |
| Cables Included | RS-232C (IN) adapter |
| Compliant Standards | EMC Class A, Safety 60950-1, Safety 62368-1 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Sleep | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% |
| Display | |
| LCD Display Technology | VA |
| Pixel Pitch | 0.36375 mm |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Image Aspect Ratio | 9:16 |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 25% Glass Haze |
| Image Contrast Ratio | 4000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Commercial Features | SMART Signage Platform, Samsung VXT CMS, AI Studio |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 3D plate technology, Virtual 3D display, True 3D Enhancer |
| Connections | |

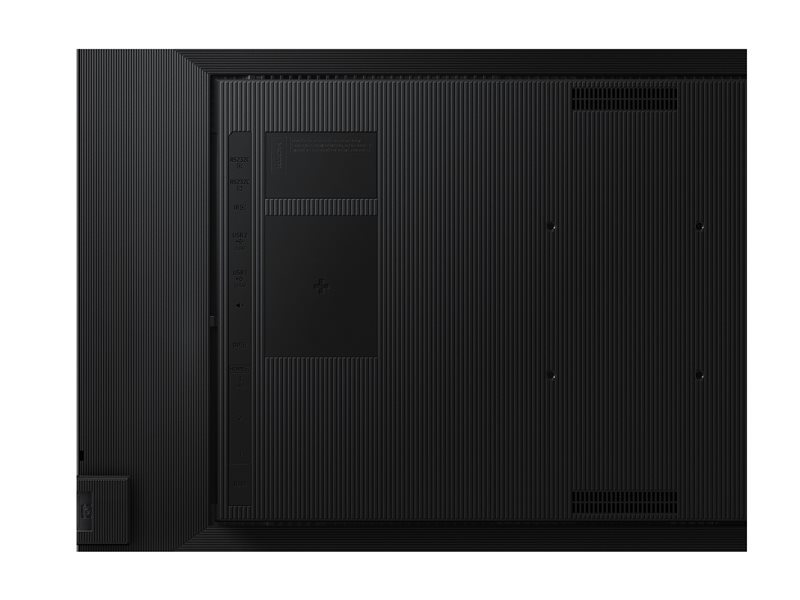

| Connector Type | 3 x HDMI input ¦ DisplayPort input ¦ 2 x USB 2.0 ¦ Audio line-out ¦ RS-232 input ¦ RS-232 output ¦ LAN input ¦ Infrared input |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 channel |
| Output Power / Total | 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 32.5 in |
| Depth (Shipping) | 5.1 in |
| Height (Shipping) | 20.5 in |
| Weight (Shipping) | 23.15 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Stands & Mounts | |
| Flat Panel Mount Interface | 100 x 100 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 16 GB |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | SmartThings Pro |
