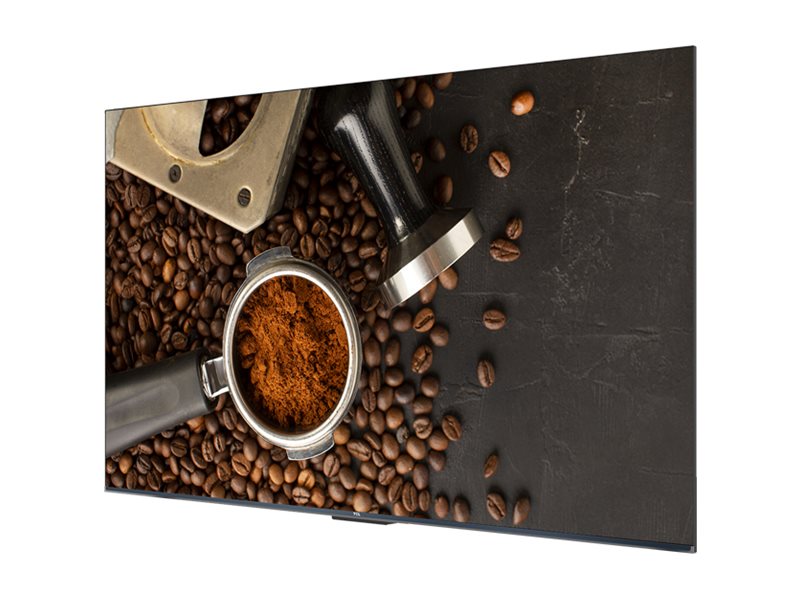

65" Diagonal Class TEN Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160
| Main Specifications | |
|---|---|
| Product Description | TCL TE65N TEN Series - 65" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 65" |
| Commercial Use | Yes - digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | Bluetooth, Wi-Fi, LAN |
| Technology | VA |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Content management software (CMS) compatible |
| Picture Enhancements | 72% Color Gamut NTSC |
| Speaker System | 2 speakers |
| Storage Capacity | 16 GB |
| USB | 2 ports |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 112.5 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) - without stand | 56.9 in x 2.8 in x 32.8 in |
| Weight | 27.56 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 135 Watt |
| Power Consumption Operational | 112.5 Watt |
| Diagonal Class | 65" |
| Commercial Use | Yes - digital signage |
| Series | TEN Series |
| Platform | Android |
| Operating System | Android OS 9.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Modes | Landscape mode |
| Picture Enhancements | 72% Color Gamut NTSC |
| Design | 3 Bezel-less Design |
| Dimensions | Without stand |
| Width | 56.9 in |
| Depth | 2.8 in |
| Height | 32.8 in |
| Weight | 27.56 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Safety 62368-1, ISO 27701, ISO 27001, EMC Class B, IP5X |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% |
| Display | |
| LCD Display Technology | VA |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Coating | 2% haze |
| Image Contrast Ratio | 4000:1 |
| Brightness | 350 cd/m² |
| Commercial Features | Content management software (CMS) compatible |
| Operation Hours / Days | 18 / 7 |
| Connections | |
| Connector Type | 2 x HDMI input ¦ 2 x USB 2.0 ¦ Audio output ¦ LAN ¦ RS-232 input |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Speakers | 2 x speaker - 10 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 63.3 in |
| Depth (Shipping) | 5.7 in |
| Height (Shipping) | 39.4 in |
| Weight (Shipping) | 40.79 lbs |
| Network & Internet Multimedia | |
| Connectivity | Bluetooth, Wi-Fi, LAN |
| LAN Protocol | Ethernet |
| Bluetooth Version | Bluetooth 5.1 |
| Stands & Mounts | |
| Flat Panel Mount Interface | 200 x 200 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | ARM Cortex-A35 Quad-Core 16 GB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
