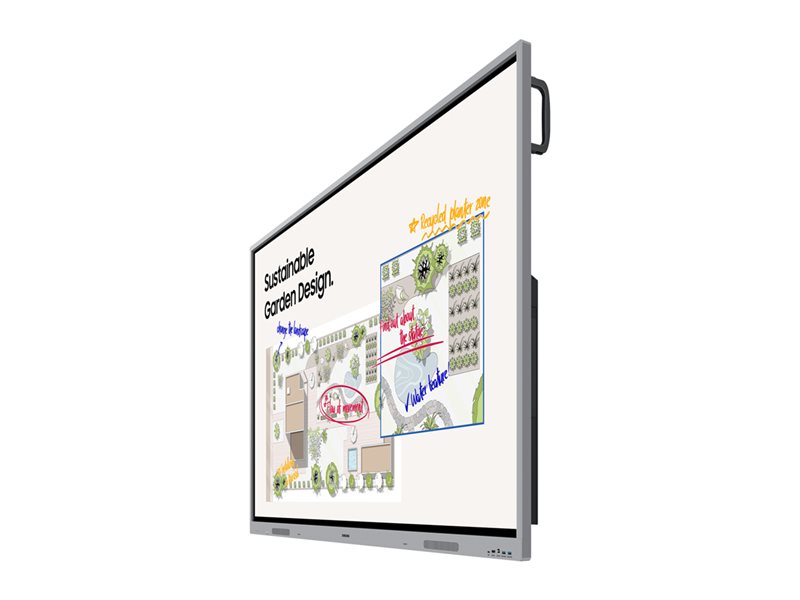

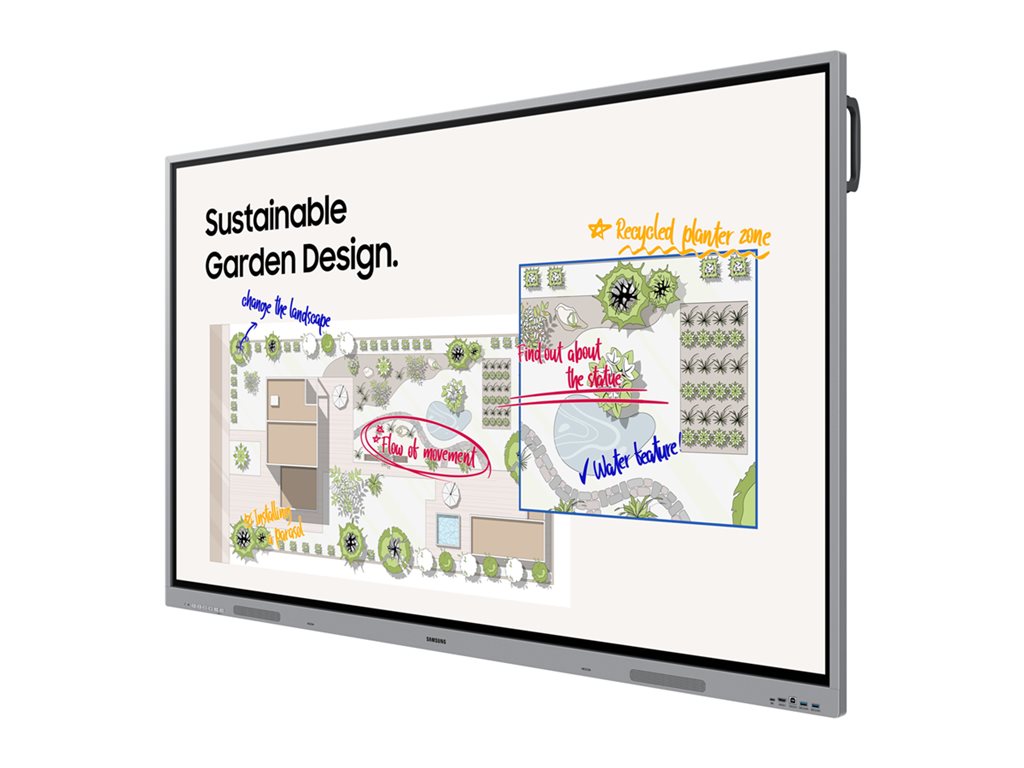

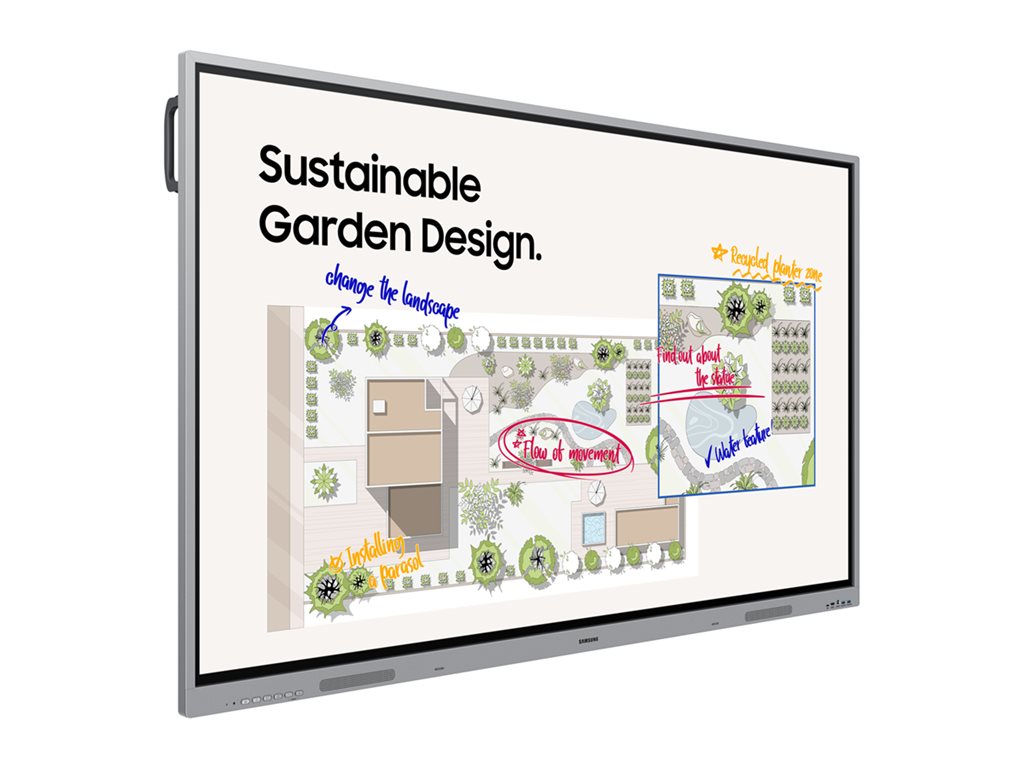

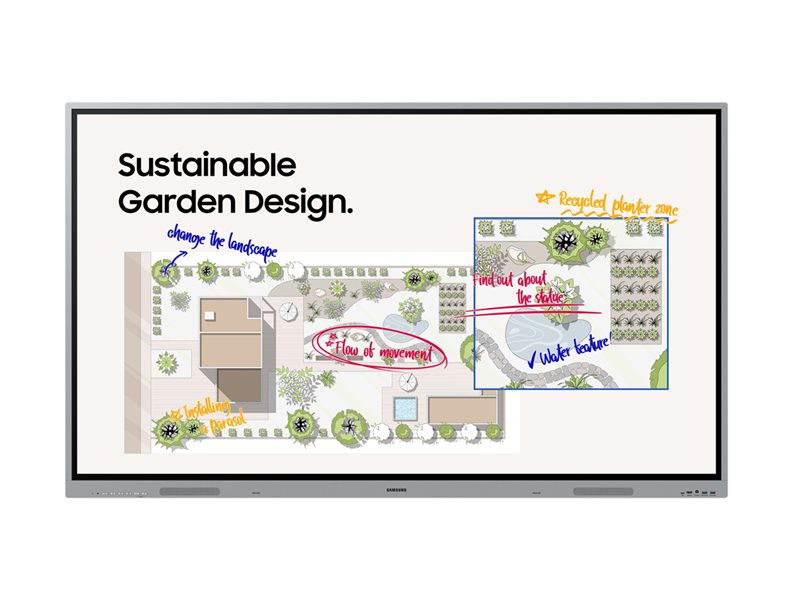

86" Diagonal Class WEFX Series LED-backlit LCD display - education / business - with built-in interactive whiteboard, touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160
| Main Specifications | |
|---|---|
| Product Description | Samsung Interactive Display WE86FX WEFX Series - 86" LED-backlit LCD display - 4K - for education / business |
| Product Type | LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch) |
| EU Data Act | Https://dataact.samsung.com/#/public/notice-page?locale=en |
| Diagonal Class | 86" |
| Commercial Use | Yes - education / business |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 3 ports |
| Technology | ADS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Home UI, Open Pluggable Standard (OPS) support |
| Picture Enhancements | 72% Color Gamut NTSC |
| Speaker System | 2.0 channel |
| Storage Capacity | 32 GB |
| USB | 7 ports |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 195 Watt |
| Dimensions (WxDxH) - without stand | 77 in x 3.9 in x 45.7 in |
| Weight | 109.13 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| EU Data Act | Https://dataact.samsung.com/#/public/notice-page?locale=en |
| Power Consumption (Max) | 400 Watt |
| Power Consumption Operational | 195 Watt |
| Diagonal Class | 86" |
| Commercial Use | Yes - education / business |
| Combined With | Built-in interactive whiteboard, touchscreen (multi touch) |
| Series | WEFX Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Eco Sensor |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 3 ports |
| Picture Enhancements | 72% Color Gamut NTSC |
| Dimensions | Without stand |
| Width | 77 in |
| Depth | 3.9 in |
| Height | 45.7 in |
| Weight | 109.13 lbs |
| Miscellaneous | |
| Compliant Standards | EMC, Part 15 Subpart B Class A, KS C 9832, KS C 9835, EN 55032:2015/A11:2020, EN 55032:2015/A1:2020, EN 55035:2017/A11:2020, EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A1:2019, EN 61000-3-3:2013/A2:2021, J55032, VCCI-CISPR 32, JIS C 61000-3-2, GB 9254-2021, GB17625.1-2012, CNS 13438 Class A ITE EMI, CISPR 32, IEC 62368-1, IEC 60950-1, UL 62368-1 Third Edition, GB 4943.1-2022 PSB, NOM-019, K 62368, IRAM, INMETRO, SASO, BSMI, IS13252, Plug and Play, AS/NZS 62368-1 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Sleep | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | ADS |
| Pixel Pitch | 0.493 mm |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | 25% haze |
| Dynamic Contrast Ratio | 1200:1 |
| Brightness | 350 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Touchpoints Qty | 40 |
| Response Time | 8 ms |
| Commercial Features | Home UI, Open Pluggable Standard (OPS) support |
| Operation Hours / Days | 12 / 7 |
| Additional Features | Infrared multitouch technology, Quick Access |
| Connections | |
| Connector Type | 2 x HDMI - rear ¦ 2 x USB ¦ 4 x USB 3.0 ¦ USB 2.0 ¦ Infrared input ¦ Audio input ¦ Audio output ¦ RS-232 input ¦ HDMI - front ¦ Touch in |
| Audio System | |
| Speaker System | 2.0 channel |
| Output Power / Total | 32 Watt |
| Speakers | 2 x speaker - 16 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 83.1 in |
| Depth (Shipping) | 7.3 in |
| Height (Shipping) | 50.8 in |
| Weight (Shipping) | 136.69 lbs |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 7 |
| Configuration | 32 GB |
