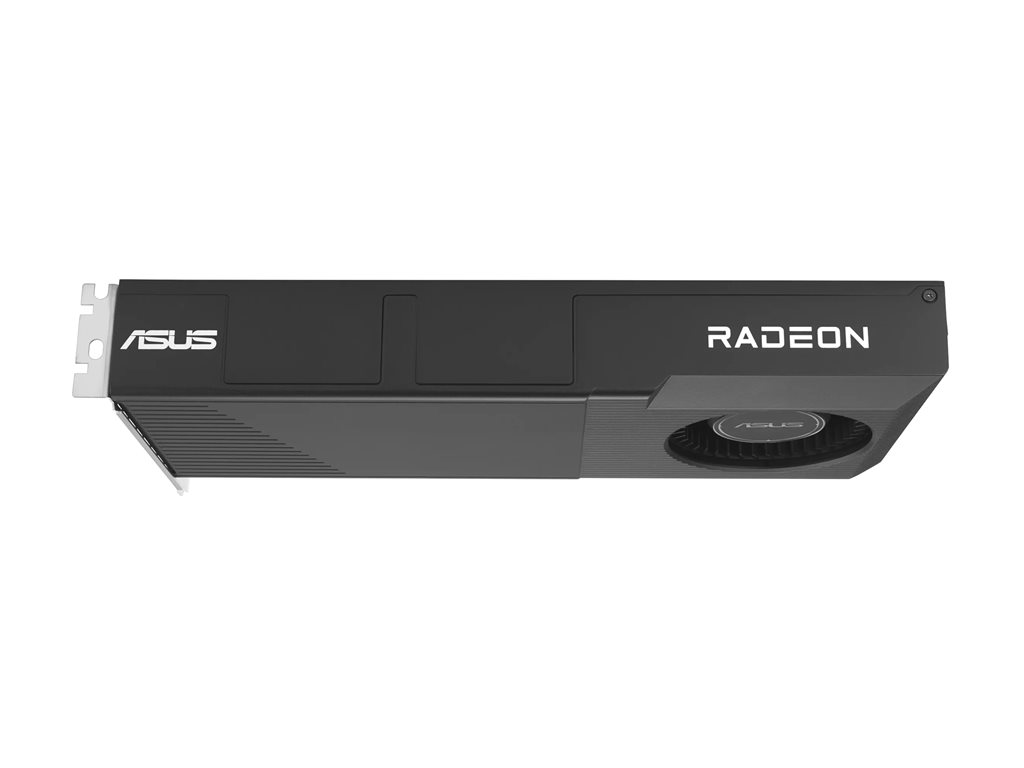

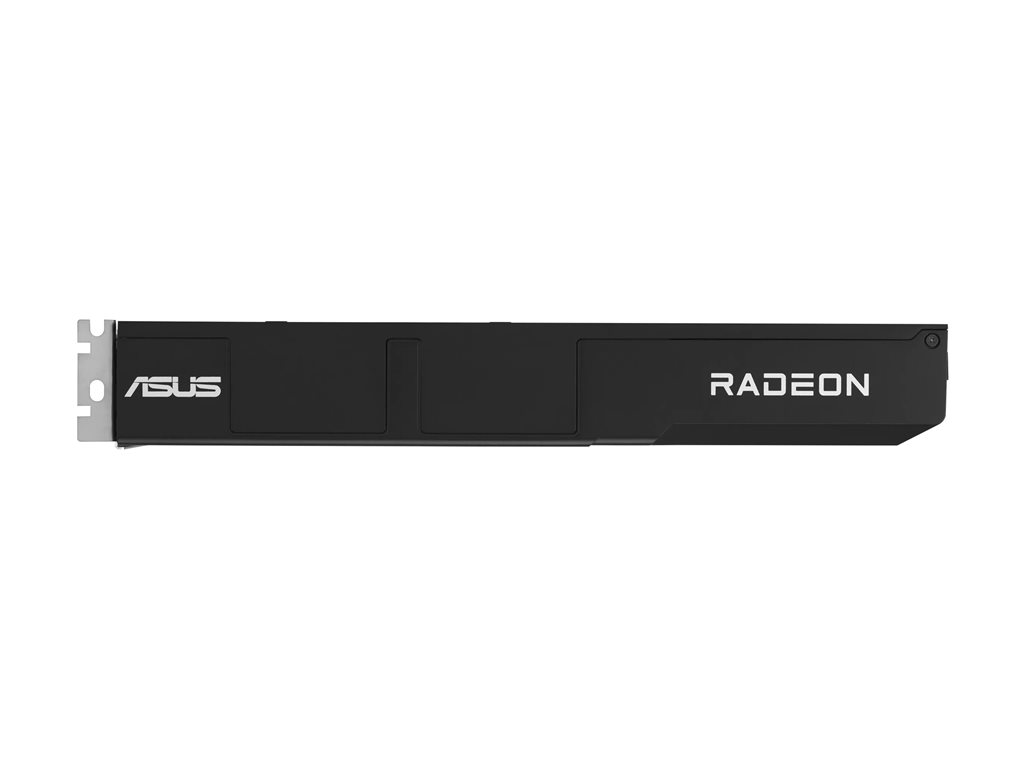

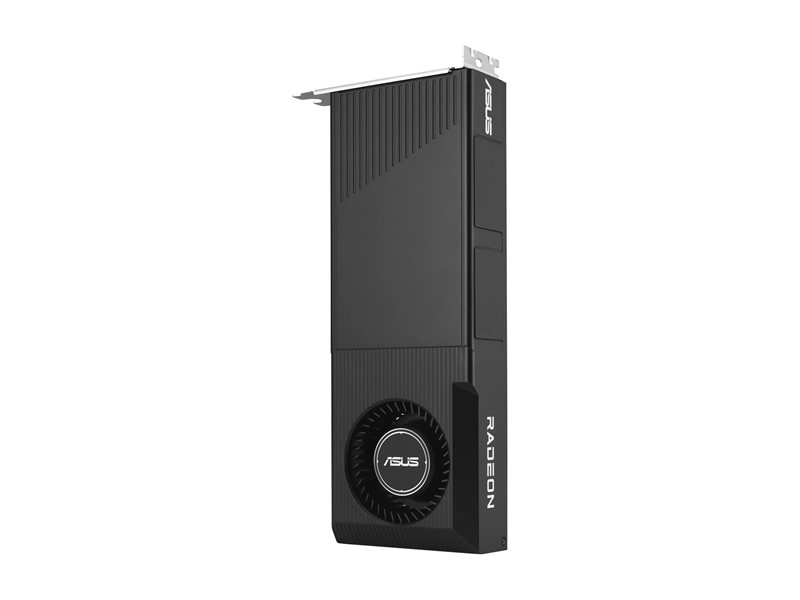

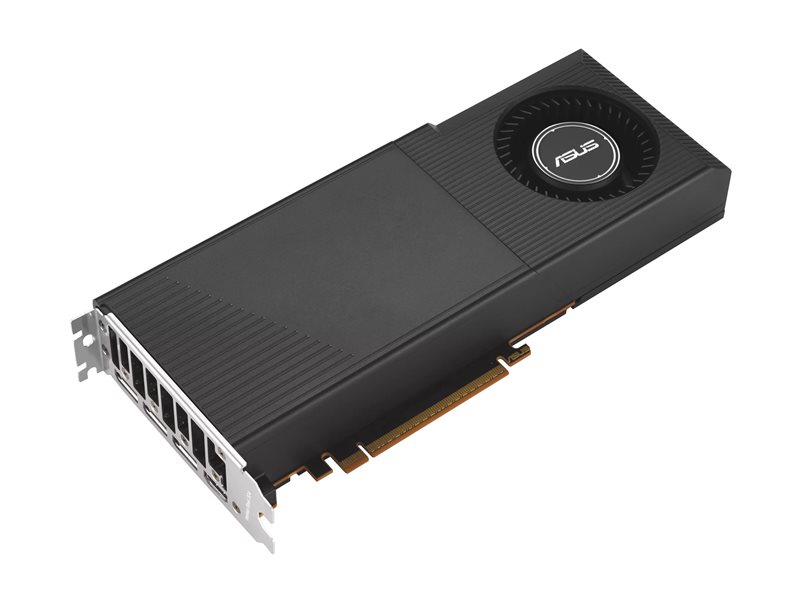

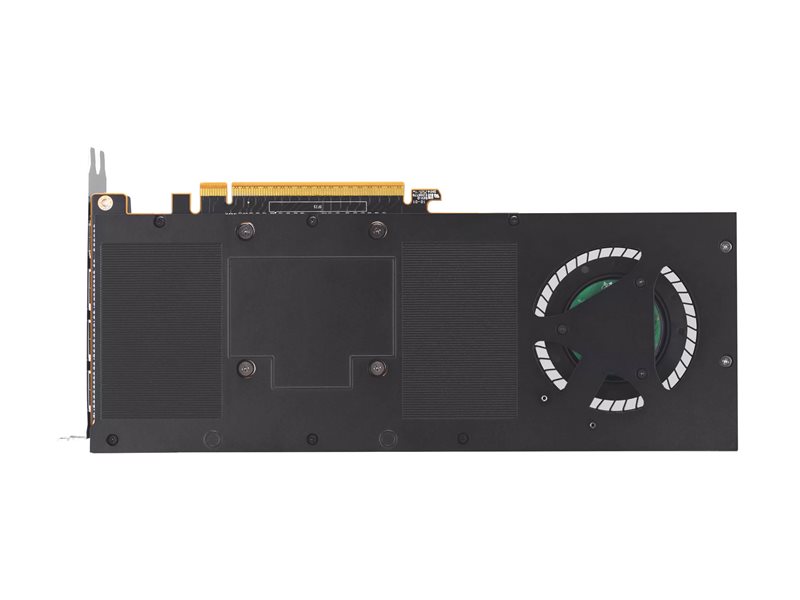

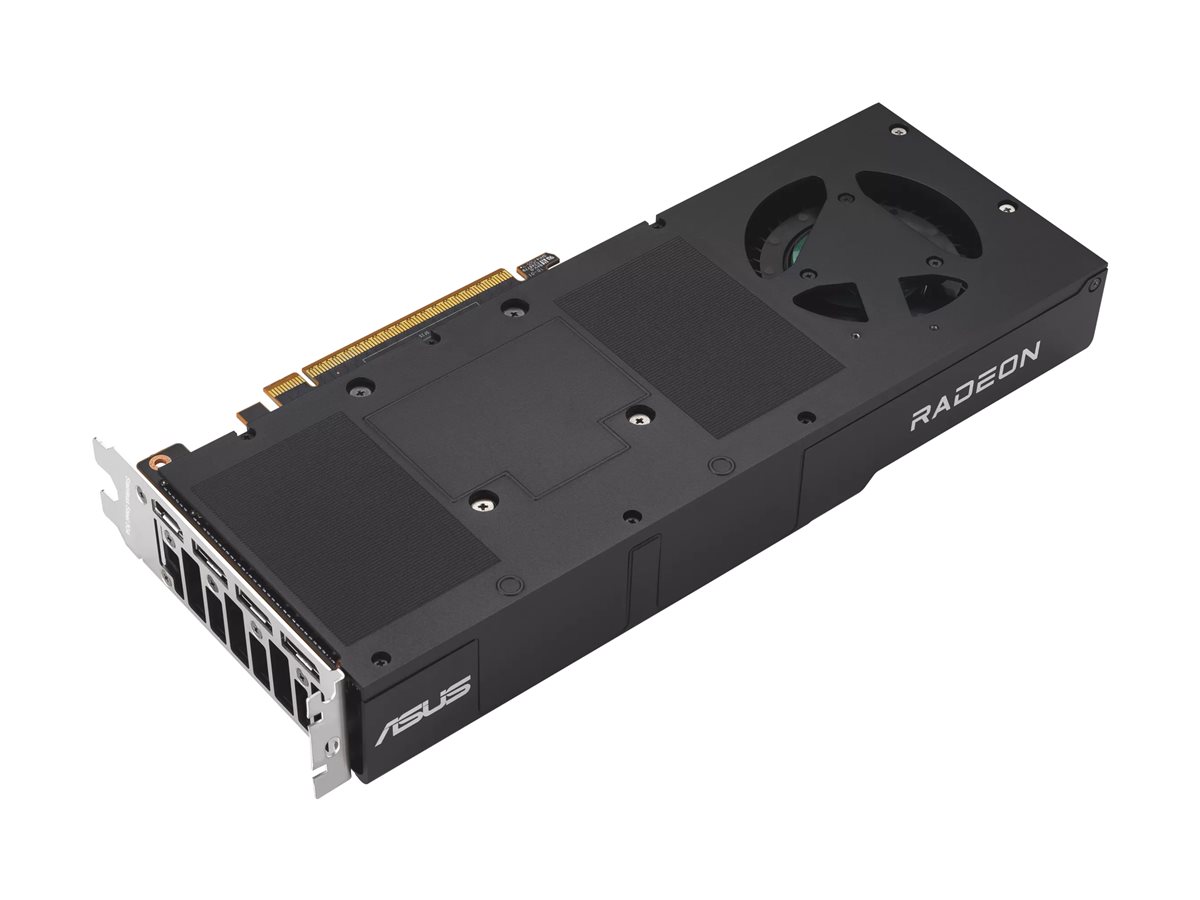

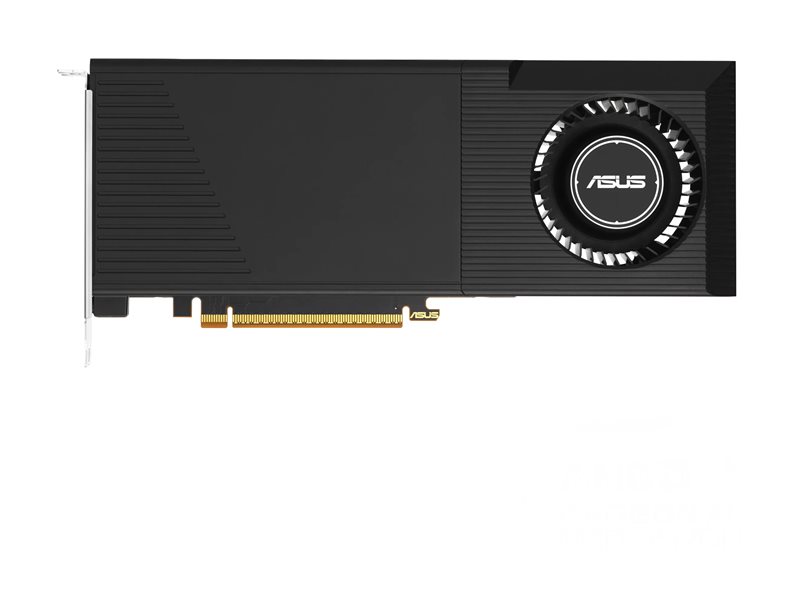

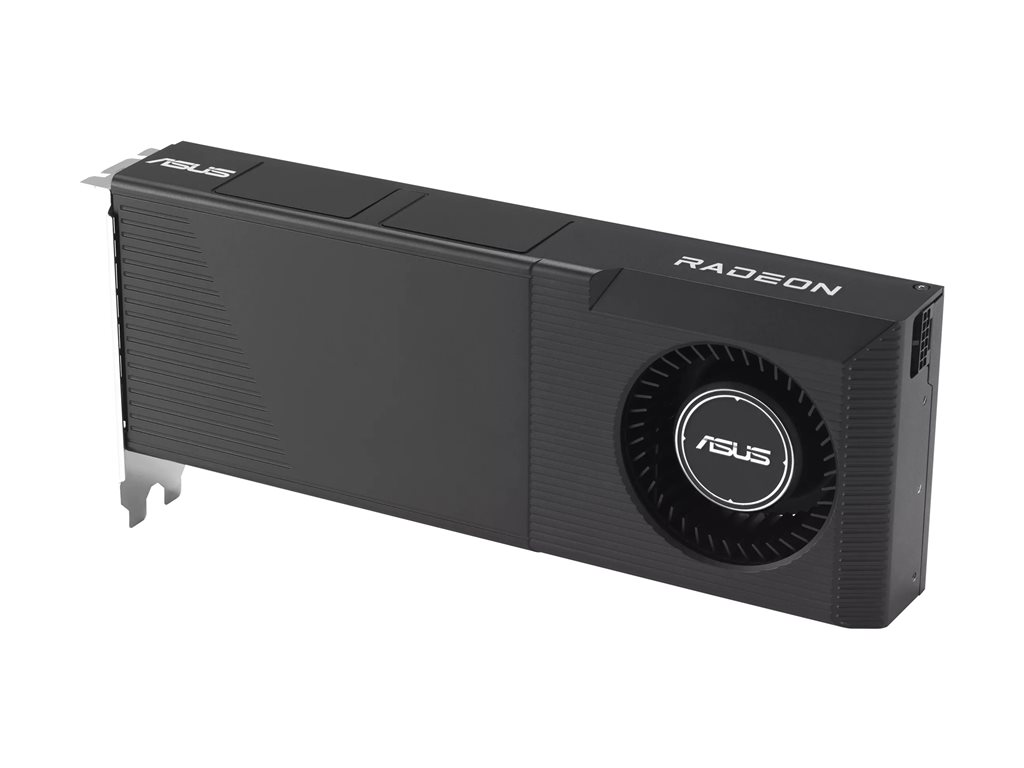

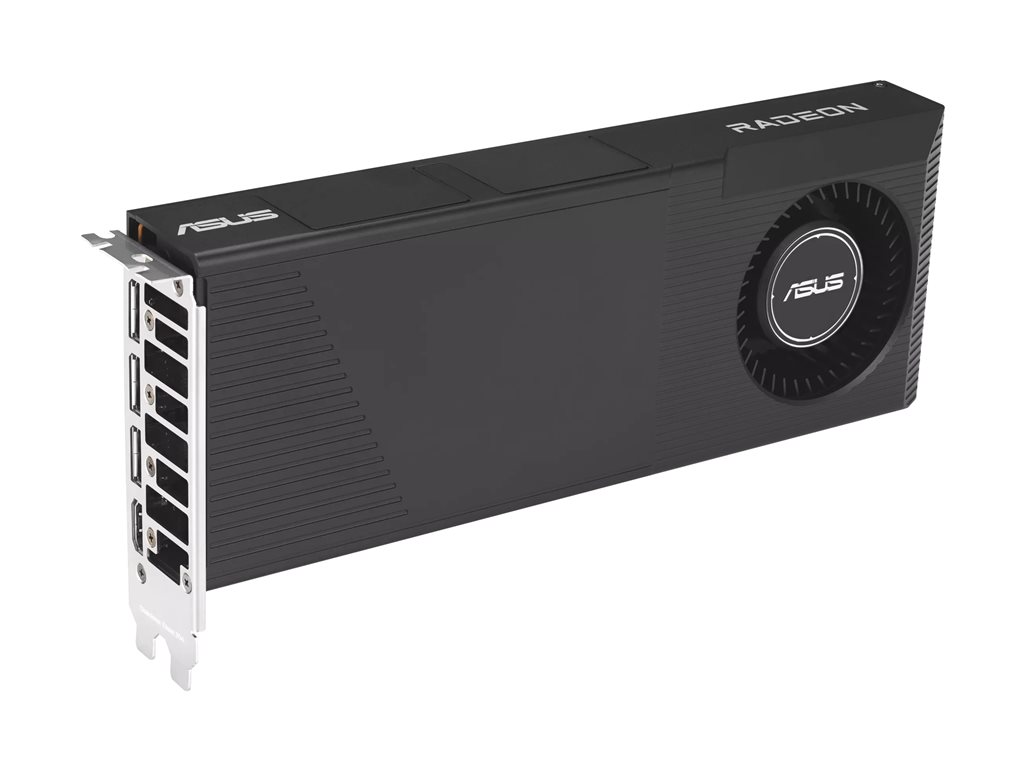

Graphics card - Radeon AI PRO R9700 - 32 GB GDDR6 - PCI Express 5.0 - HDMI, 3 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | ASUS Turbo - graphics card - Radeon AI PRO R9700 - 32 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | AMD Radeon AI PRO R9700 |
| Memory | 32 GB GDDR6 |
| Memory Speed | 20 Gbps |
| Boost Clock | 2920 MHz |
| Boost Clock (OC) | 2940 MHz |
| Stream Processors | 4096 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

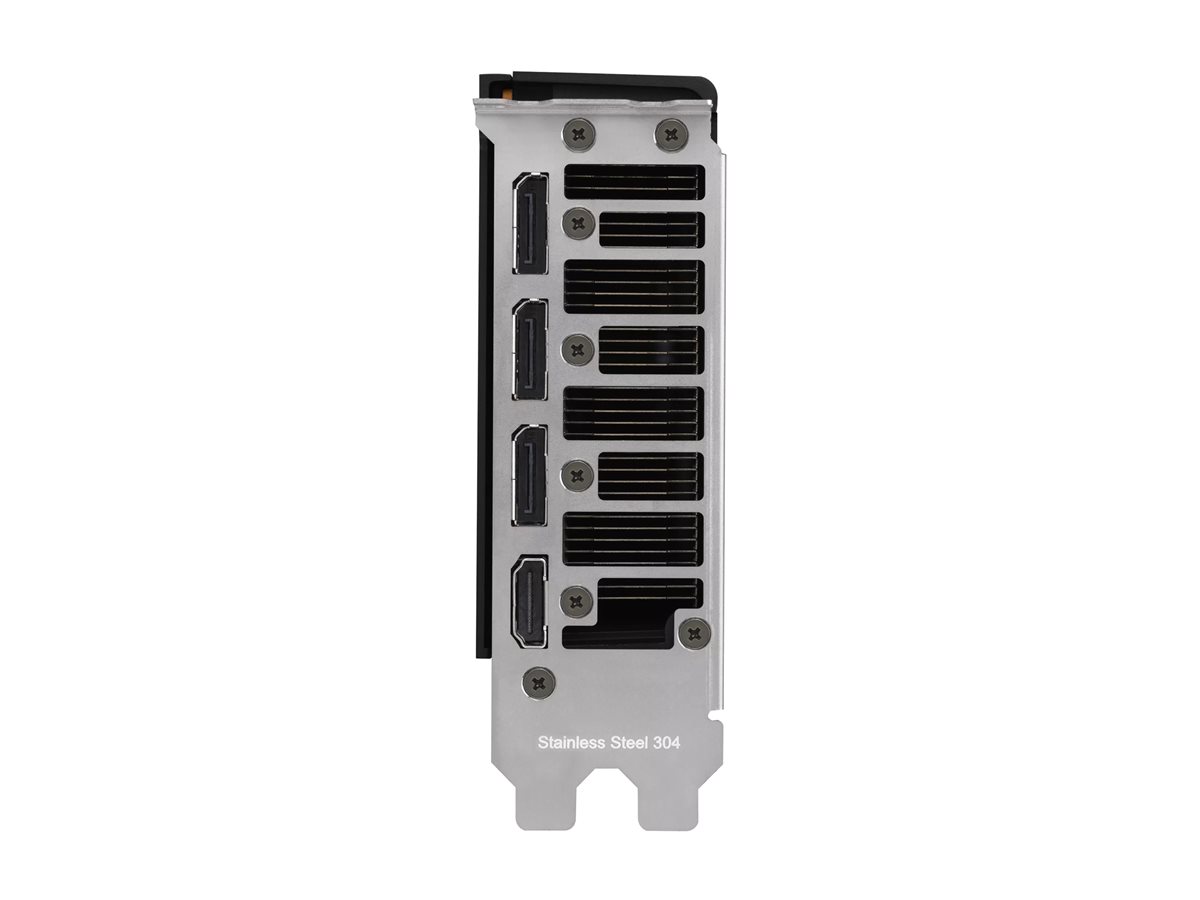

| Interfaces Details | HDMI ¦ 3 x DisplayPort |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 1.6 in x 10.5 in x 4.4 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | AMD Radeon AI PRO R9700 |
| Boost Clock | 2920 MHz |
| Boost Clock (OC) | 2940 MHz |
| Stream Processors | 4096 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | HDMI ¦ 3 x DisplayPort |
| API Supported | OpenGL 4.6 |
| Features | 64 AMD RDNA 4 compute units, 128 AI Accelerators, 1531 Tflops peak INT4 performance, 766 Tflops peak INT8 performance, 128 ROPs, 47.8 Tflops peak single precision matrix (FP32) performance, 95.7 Tflops peak half precision matrix (FP16) performance, dual slot width, ASUS GPU Guard, stainless steel mounting bracket, phase-change thermal pad, Dual ball Bearing Fan, HDCP |
| Memory | |
| Size | 32 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 20 Gbps |
| Bus Width | 256-bit |
| Miscellaneous | |
| Software Included | ASUS GPU Tweak III |
| Compliant Standards | HDCP 2.3, DisplayPort 2.1a |
| Width | 1.6 in |
| Depth | 10.5 in |
| Height | 4.4 in |
| System Requirements | |
| Required Power Supply | 750 W |
| Additional Requirements | 16-pin PCI Express Gen 5 power connector |
