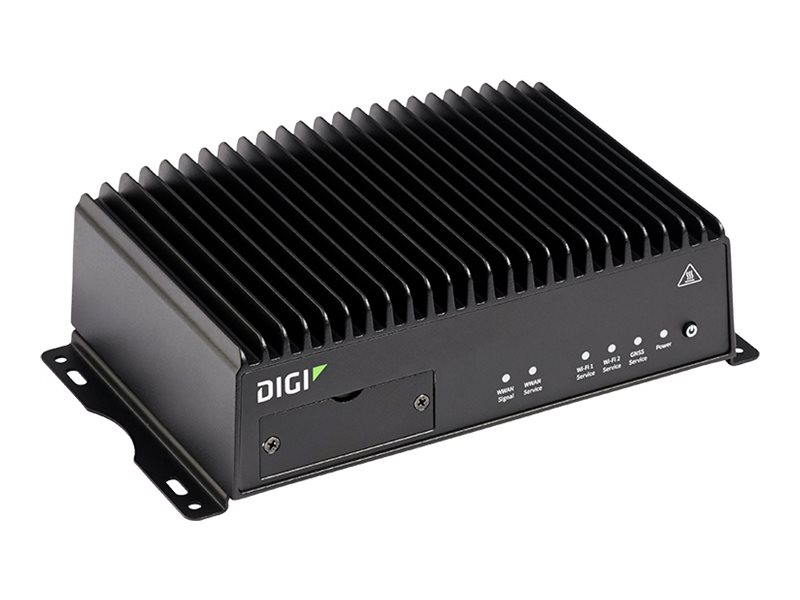

Single 5G - wireless router - WWAN 4-port switch - 1GbE - Wi-Fi 5 - Dual Band - 5G, 4G, 3G
| Main Specifications | |
|---|---|
| Product Description | Digi TX54 - Single 5G - wireless router - WWAN - Wi-Fi 5, Bluetooth - 5G, 4G, 3G - desktop |
| Device Type | Wireless router - wireless cellular modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Cellular Protocol | 5G NR Sub-6 Ghz, LTE Advanced Pro, UMTS, HSPA+ |
| Generation | 5G, 4G, 3G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B46, LTE B21, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n78, 5G n1, 5G n2, 5G n3, 5G n5, 5G n28, 5G n41, 5G n66, 5G n71, 5G n79, LTE B34, UMTS B1, HSPA+ B1, UMTS B2, HSPA+ B2, HSPA+ B3, UMTS B3, HSPA+ B4, UMTS B5, HSPA+ B5, HSPA+ B6, UMTS B6, UMTS B8, HSPA+ B8, HSPA+ B9, UMTS B9, UMTS B19, HSPA+ B19 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Frequency Band | 2.4 GHz / 5 GHz |
| Remote Management Protocol | SNMP 2, SNMP 3, SFTP, SSH, HTTP, HTTPS, SCP |
| Features | 2x2 MIMO technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Dimensions (WxDxH) | 8.3 in x 5.7 in x 2.5 in |
| Weight | 3.31 lbs |
| Localization | Global |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Frequency Band | 2.4 GHz / 5 GHz |
| Remote Management Protocol | SNMP 2, SNMP 3, SFTP, SSH, HTTP, HTTPS, SCP |
| Authentication Method | RADIUS |
| Features | 2x2 MIMO technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, E Mark, FCC Part 15 B, ICES 003, AS/NZS CISPR 22, MIL-STD 810G, EN 60950, CB, IP54 |
| RAM | 256 MB |
| Flash Memory | 512 MB |
| Built-in Devices | GPS, GLONASS, Beidou, Galileo |
| Status Indicators | Power, signal, service, GNSS, WWAN, Wi-Fi |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A ¦ Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ Antenna: 4 x SMA - Wi-Fi ¦ Antenna: 4 x SMA - 5G ¦ Antenna: 1 x SMA - GNSS antenna ¦ Antenna: 1 x - Bluetooth |
| Expansion Slots | 4 (total) / 4 (free) x Mini-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Localization | Global |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 18 watt |
| Environmental Parameters | |
| Min Operating Temperature | -29.2 °F |
| Max Operating Temperature | 165.2 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | 5G NR Sub-6 Ghz, LTE Advanced Pro, UMTS, HSPA+ |
| Generation | 5G, 4G, 3G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B46, LTE B21, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n78, 5G n1, 5G n2, 5G n3, 5G n5, 5G n28, 5G n41, 5G n66, 5G n71, 5G n79, LTE B34, UMTS B1, HSPA+ B1, UMTS B2, HSPA+ B2, HSPA+ B3, UMTS B3, HSPA+ B4, UMTS B5, HSPA+ B5, HSPA+ B6, UMTS B6, UMTS B8, HSPA+ B8, HSPA+ B9, UMTS B9, UMTS B19, HSPA+ B19 |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 5.7 in |
| Height | 2.5 in |
| Weight | 3.31 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 10 |
