Video/audio switch - desktop
| Main Specifications | |
|---|---|

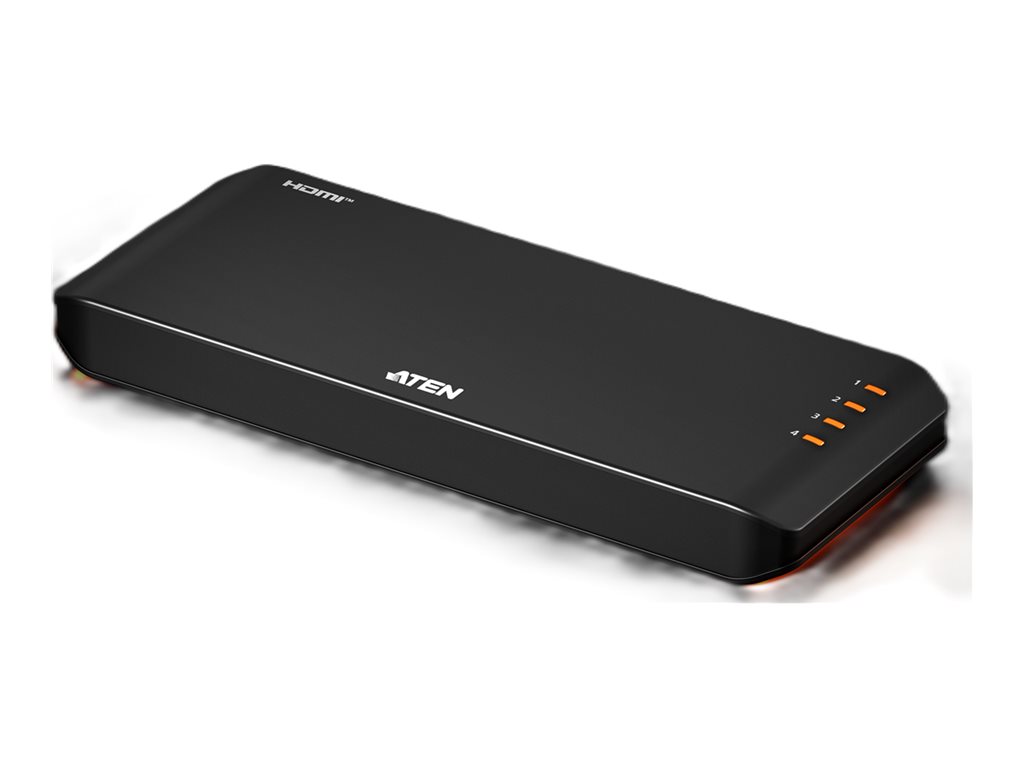

| Product Description | ATEN Essentials VS4814 - video/audio switch - 4 ports |
| Device Type | Video/audio switch - 4 ports |
| Subtype | HDMI |
| Performance | Data transfer rate per port: 18 Gbps ¦ Pixel clock: 600 MHz |
| Features | DTS-HD Master Audio support, Dolby TrueHD support, 3D support, Deep Color support, HDR10+ support, 4:4:4 chroma subsampling support, EDID Sync optimization, LPCM 7.1 support, push button, quad display support, compact |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | 5 V 1 A |
| Dimensions (WxDxH) | 5.7 in x 2.2 in x 0.6 in |
| Weight | 3.53 oz |
| General | |
| Device Type | Video/audio switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Data transfer rate per port: 18 Gbps ¦ Pixel clock: 600 MHz |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | DTS-HD Master Audio support, Dolby TrueHD support, 3D support, Deep Color support, HDR10+ support, 4:4:4 chroma subsampling support, EDID Sync optimization, LPCM 7.1 support, push button, quad display support, compact |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input ¦ 4 x HDMI output ¦ 1 x USB (power only) Type C |
| Miscellaneous | |
| Cables Included | 1 x USB-C to USB-A cable - 3.3 ft |
| Compliant Standards | Plug and Play |
| Power | |
| Power Device | External power adapter |
| Voltage Required | 5 V |
| Electric Current Required | 1 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 2.2 in |
| Height | 0.6 in |
| Weight | 3.53 oz |
