KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop
| Main Specifications | |
|---|---|

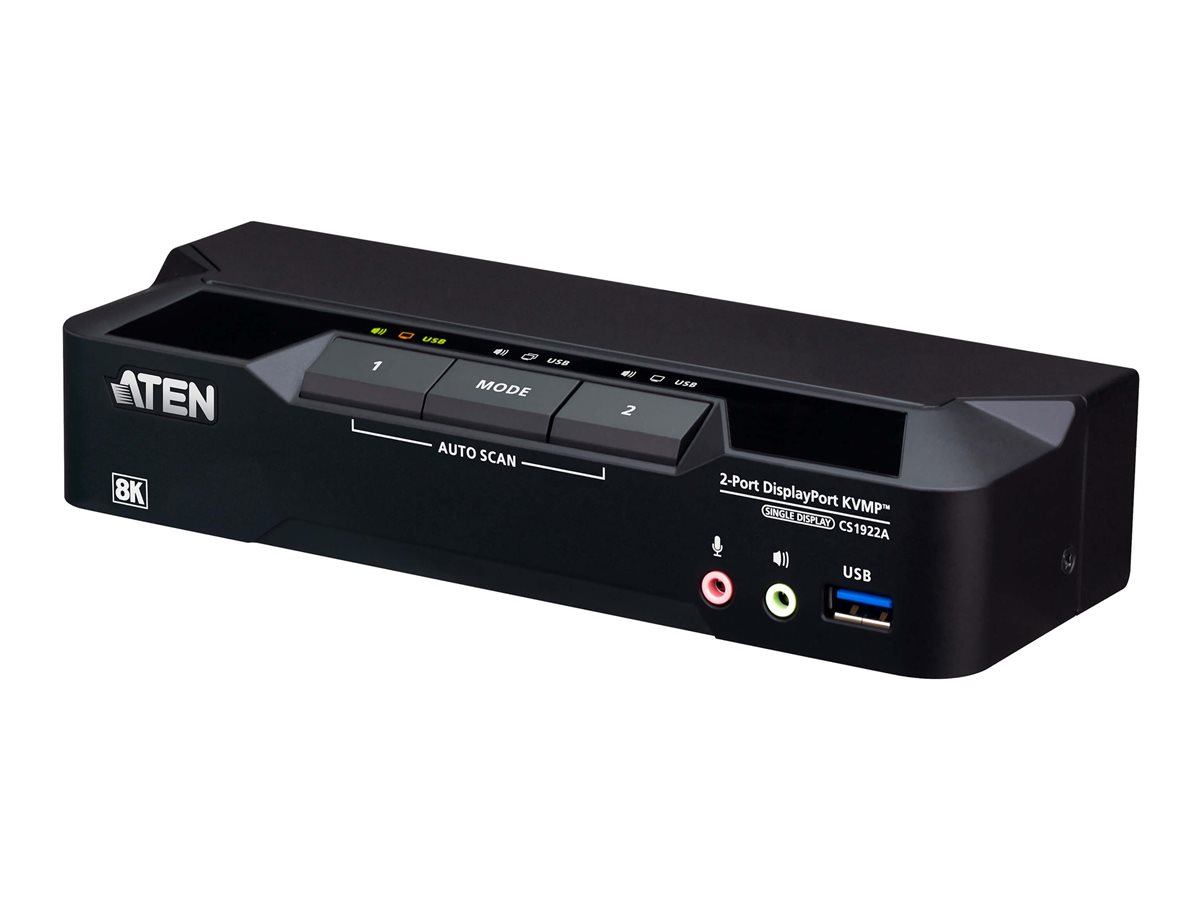

| Product Description | ATEN CS1922A - KVM / audio / USB switch - 2 ports |
| Device Type | KVM / audio / USB switch - 2 ports |
| Subtype | DisplayPort |
| Ports | 2 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Performance | Data transfer rate: 5 Gbps |
| Features | Remote Port Selector, DP++ technology, daisy-chaining support, DisplayPort MST support, HDCP compliant, HD audio, hot-pluggable, HDR10+ support, firmware upgradable, 3 push buttons, slide switch, metal housing, Auto Scan Mode |
| Compliant Standards | USB 3.1 |
| Dimensions (WxDxH) | 7.9 in x 2.9 in x 1.7 in |
| Weight | 16.58 oz |
| General | |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | DisplayPort |
| Ports | 2 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Performance | Data transfer rate: 5 Gbps |
| Max Resolution | 7680 x 4320 @ 60 Hz |
| Features | Remote Port Selector, DP++ technology, daisy-chaining support, DisplayPort MST support, HDCP compliant, HD audio, hot-pluggable, HDR10+ support, firmware upgradable, 3 push buttons, slide switch, metal housing, Auto Scan Mode |
| Compliant Standards | USB 3.1 |
| Built-in Devices | USB 3.1 hub |
| Status Indicators | KVM, audio, link |
| Expansion / Connectivity | |
| Interfaces | 2 x USB Type A console ¦ 1 x DisplayPort console ¦ 2 x speakers mini-jack console ¦ 2 x microphone mini-jack console ¦ 2 x USB 3.1 Gen 1 Type B ¦ 2 x DisplayPort ¦ 2 x speakers mini-jack ¦ 2 x microphone mini-jack ¦ 1 x power input ¦ 1 x RJ-45 ¦ 2 x USB 3.1 Gen 1 Type A |
| Miscellaneous | |
| Included Accessories | Remote port selector switch, power adapter |
| Cables Included | 2 x DisplayPort cable - 5 ft ¦ 2 x USB-A to USB-B cable - 6 ft ¦ 2 x speaker cable - 6 ft ¦ 2 x microphone cable - 6 ft |
| Compliant Standards | Plug and Play, DisplayPort 1.4 |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 2.9 in |
| Height | 1.7 in |
| Weight | 16.58 oz |
