Hospitality - wireless access point - Wi-Fi 7, Bluetooth 5.4 LE - Wi-Fi 7, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - TAA Compliant
| Main Specifications | |
|---|---|

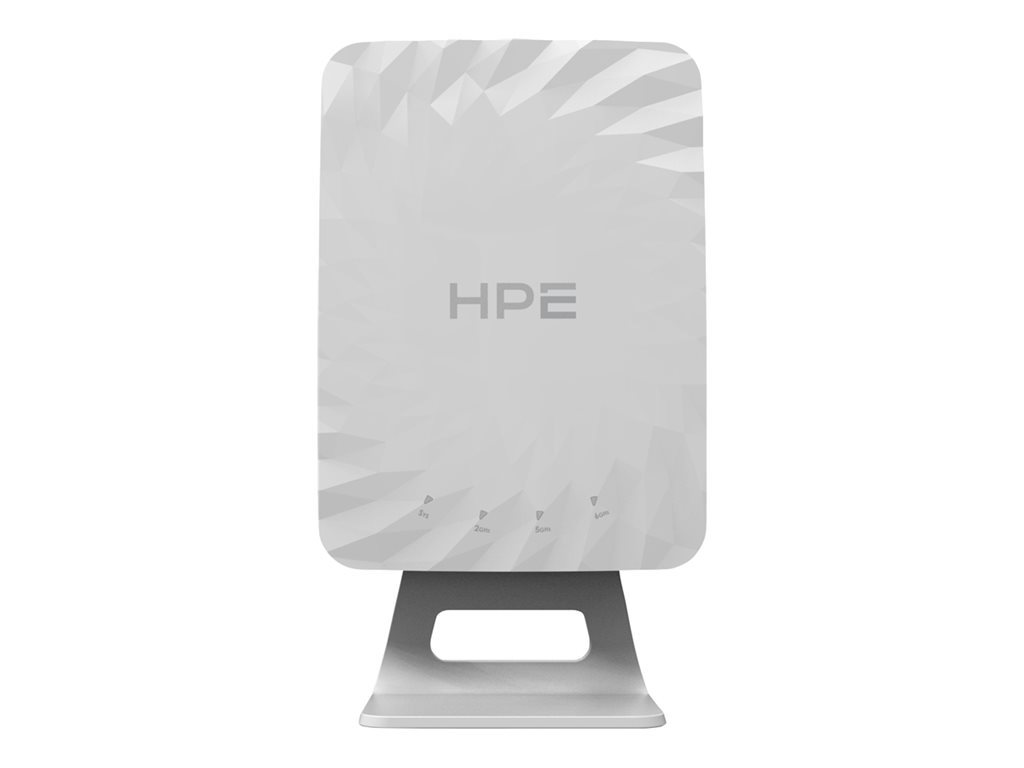

| Product Description | HPE Aruba Networking AP-725H (USF1) - Hospitality - wireless access point - Wi-Fi 7, Bluetooth, ZigBee - TAA Compliant |
| Device Type | Wireless access point |
| Form Factor | External - indoor |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee, Bluetooth 5.4 LE |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 2.88 Gbps ¦ Maximum data rate (2.4 GHz): 690 Mbps ¦ Maximum data rate (6 GHz): 5.76 Gbps ¦ Maximum tri-band aggregate data rate: 9.3 Gbps |
| Capacity | Spatial streams: 2 ¦ Associated client devices per radio: 400 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| Power Over Ethernet (PoE) Supported | PoE |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 7.7 in x 6 in x 2.2 in |
| Weight | 2.49 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 7.7 in |
| Depth | 6 in |
| Height | 2.2 in |
| Weight | 2.49 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 5GBase-T (PoE) - RJ-45 ¦ 1 x console ¦ 2 x 10/100/1000Base-T (PoE) - RJ-45 ¦ 1 x USB 2.0 (host) - Type A ¦ 2 x 10/100/1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 500,000 hours |
| Compliant Standards | EEE, FCC, ISED, LVD 2014/35/EU, IEC/EN 62368-1, EN60601-1-2, ETS 300 019 Class 3.1, UL 2043 |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 9.3 Gbps |
| Line Coding Format | CCK, OFDM, BPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, QPSK, DSSS, OFDMA |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee, Bluetooth 5.4 LE |
| Spread Spectrum Method | OFDMA, DSSS, OFDM |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 2.88 Gbps ¦ Maximum data rate (2.4 GHz): 690 Mbps ¦ Maximum data rate (6 GHz): 5.76 Gbps ¦ Maximum tri-band aggregate data rate: 9.3 Gbps |
| Capacity | Spatial streams: 2 ¦ Associated client devices per radio: 400 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| Status Indicators | System, power, radio |
| Features | 2x2 MIMO technology, Trusted Platform Module 2.0 (TPM 2.0), security slot (Kensington security lock compatible), Target Wake Time (TWT), Advanced Cellular Coexistence (ACC), secure boot, Intelligent Power Monitoring (IPM), Network Access Control (NAC), packet aggregation A-MPDU, packet aggregation A-MSDU, Transmit Beam-forming (TxBF) ready, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), auto-uplink (auto MDI/MDI-X), PoE Class 6, DFS support, Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), MACsec support |
| Encryption Algorithm | WPA2, WPA2-MPSK, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE) |
| Compliant Standards | IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11ac, Wi-Fi CERTIFIED |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter (not included) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17 in |
| Shipping Depth | 8.4 in |
| Shipping Height | 6.7 in |
| Antenna | |
| Antenna | Internal |
| Directivity | Directional |
| Gain Level | 3.5 dBi |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
