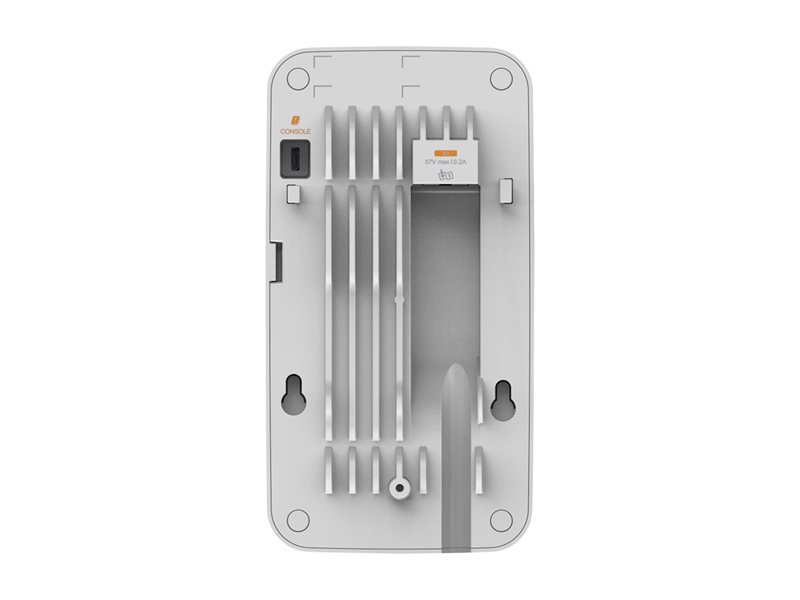

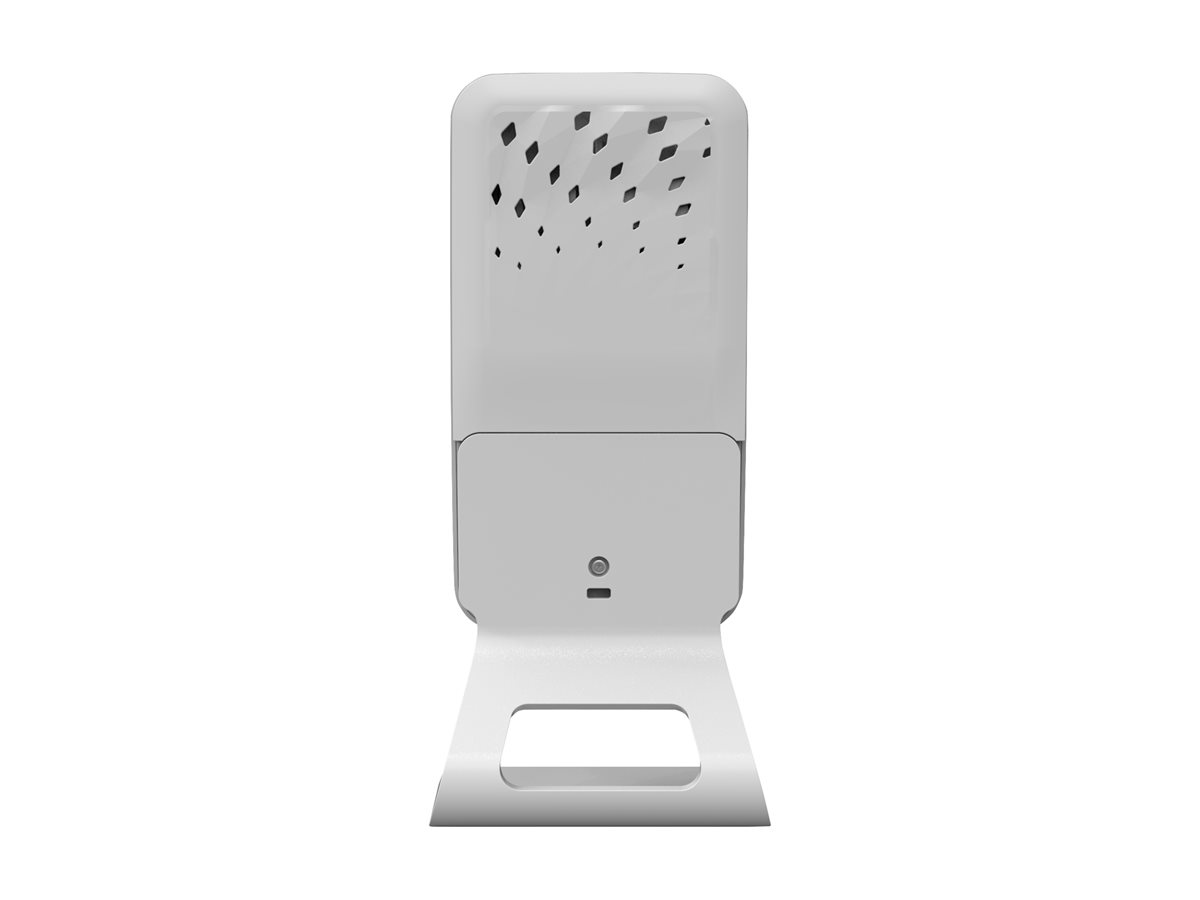

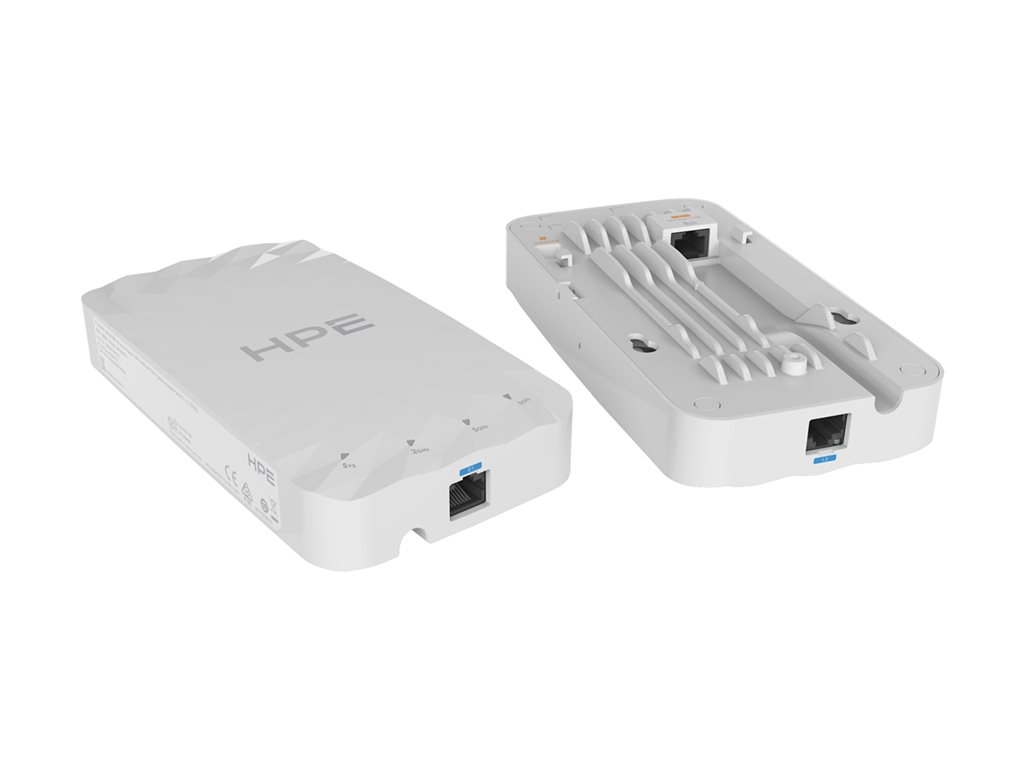

Hospitality - wireless access point - low-end - Wi-Fi 7 - Wi-Fi 7, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - BTO desktop / wall mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Networking AP-721H (US) - Hospitality - wireless access point - low-end - Wi-Fi 7, Bluetooth, ZigBee |
| Device Type | Wireless access point |
| Form Factor | Desktop / wall mountable - indoor |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.0 |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 344 Mbps ¦ Maximum data rate (5 GHz): 1.4 Gbps ¦ Maximum data rate (6 GHz): 2.8 Gbps |
| Capacity | Associated client devices per radio: up to 400 ¦ BSSIDs per radio: 16 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Pricing Type | BTO |
| Dimensions (WxDxH) | 3.5 in x 1.3 in x 6.7 in |
| Weight | 9.88 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 3.5 in |
| Depth | 1.3 in |
| Height | 6.7 in |
| Weight | 9.88 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 100/1000Base-T - RJ-45 ¦ 1 x 10/100/1000Base-T - RJ-45 ¦ 1 x console - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 500,000 hours |
| Compliant Standards | ETS 300 019 Class 3.1, FCC, ISED, LVD 2014/35/EU, IEC/EN 62368-1, EN 60601-1-1, EN 60601-1-2 |
| Pricing Type | BTO |
| Networking | |
| Form Factor | Desktop / wall mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.0 |
| Spread Spectrum Method | DSSS, OFDM, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 344 Mbps ¦ Maximum data rate (5 GHz): 1.4 Gbps ¦ Maximum data rate (6 GHz): 2.8 Gbps |
| Capacity | Associated client devices per radio: up to 400 ¦ BSSIDs per radio: 16 |
| Status Indicators | Power, status, 2.4/5/6 GHz |
| Features | PoE Class 3, auto-uplink (auto MDI/MDI-X), Trusted Platform Module 2.0 (TPM 2.0), automatic thermal shutdown, recovery function, reset button, security slot (Kensington security lock compatible), Target Wake Time (TWT), Advanced Cellular Coexistence (ACC), Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), packet aggregation A-MPDU, packet aggregation A-MSDU, Transmit Beam-forming (TxBF) ready, Network Access Control (NAC), Intelligent Power Monitoring (IPM), Advanced IoT Coexistence (AIC), DFS support, 2x2 MIMO technology, SU-MIMO technology |
| Encryption Algorithm | WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE) |
| Compliant Standards | Wi-Fi CERTIFIED, IEEE 802.3bz, IEEE 802.3az, IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter (not included) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH |
| Antenna | |
| Antenna | Internal |
| Directivity | Directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
