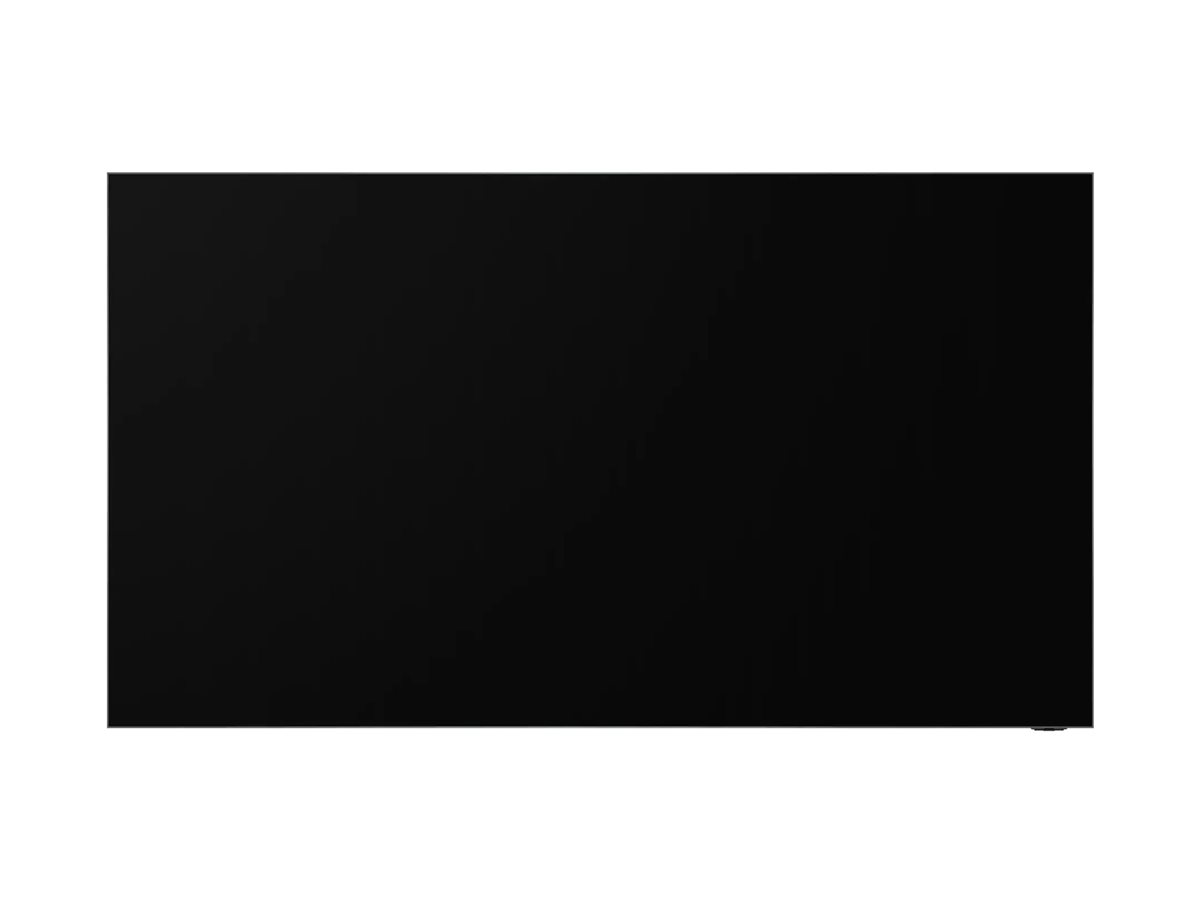

MMF-A All-in-One Series LED video wall - digital signage - 1920 x 1080 118.5" - Chip On Board (CoB) - HDR
| Main Specifications | |
|---|---|
| Product Description | Samsung The Wall MM012F-A MMF-A All-in-One Series LED video wall - for digital signage |
| Product Type | LED video wall |
| Diagonal Size | 118.5" |
| Commercial Use | Yes - digital signage |
| Video Wall Resolution | 1920 x 1080 |
| HDR Format | HDR10, HDR10+ |
| Frame Rate & Enhancement Technology | 50 Hz Video Rate, 60 Hz Video Rate, 3840 Hz Refresh Rate |
| TV Tuner | No tuner |
| Picture Enhancements | True Black |
| Platform | SmartThings Pro |
| Video Wall Display Unit | Chip On Board (CoB) |
| Included Accessories | Control box |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| General | |
| Product Type | LED video wall |
| Commercial Use | Yes - digital signage |
| Series | MMF-A All-in-One Series |
| HDR Capable | Yes |
| HDR Format | HDR10, HDR10+ |
| Video Processor | NQM AI |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Picture Enhancements | True Black |
| Miscellaneous | |
| Included Accessories | Control box |
| Compliant Standards | TUV Eye Comfort certified, IEC 60950-1 / EN 60950-1CCC, GB 4943.1-2011, PSB, IEC 60950-1, NOM-001-SCFI-1993 IRAM, IRAM, SASO, BIS, IS 13252, NOM-001-SCFI-1993, NOM-019-SCFI-1998, KC, K60950-1, EAC, INMETRO, BSMI, RCM, AS/NZS 60950-1, UL, UL 60950, FCC Part 15 Class B (USA), EMC Class A, KCC/EK, KCC KN32, KN35, EN55032:2012, EN 55032:2015, EN 55024:2010, BS EN 55035:2017, VCCI, VCCI-CISPR 32:2016, CCC, GB/T9254-2008, GB17625.1-2012, BSMI CNS 13438, CNS14336-1, BSMI CNS 15663, RoHS, C-Tick, AS/NZS CISPR 32:2015, GOST, ROCT CISPR 24-2013, ROCT CISPR 22:2005 |
| Power | |
| Power Device | Power adapter |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH |
| Display | |
| Frame Rate & Enhancement Technology | 50 Hz Video Rate, 60 Hz Video Rate, 3840 Hz Refresh Rate |
| Color Temperature | 6500K |
| Brightness | 500 cd/m² |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Audio System | |
| Additional Features | Built-in speaker |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | SmartThings Pro |
| Video Wall Display Unit | |
| Pixel Pitch | 1.25 mm |
| LED Type | Chip On Board (CoB) |
| Video Wall | |
| Resolution | 1920 x 1080 |
| Diagonal Size | 118.5" |
